Overview:

The StarTech PEX8M2E2 is an internal PCI Express expansion card that adds two M.2 PCIe SSD slots to desktop workstations and servers, enabling installation of dual NVMe or AHCI‑capable solid‑state drives. It is deployed by system integrators, storage engineers, and workstation builders to expand high‑speed internal storage capacity without requiring additional motherboard M.2 sockets. The card addresses the challenge of limited native storage interfaces in legacy and modern systems alike by leveraging an x8 PCIe interface to host two drives concurrently.

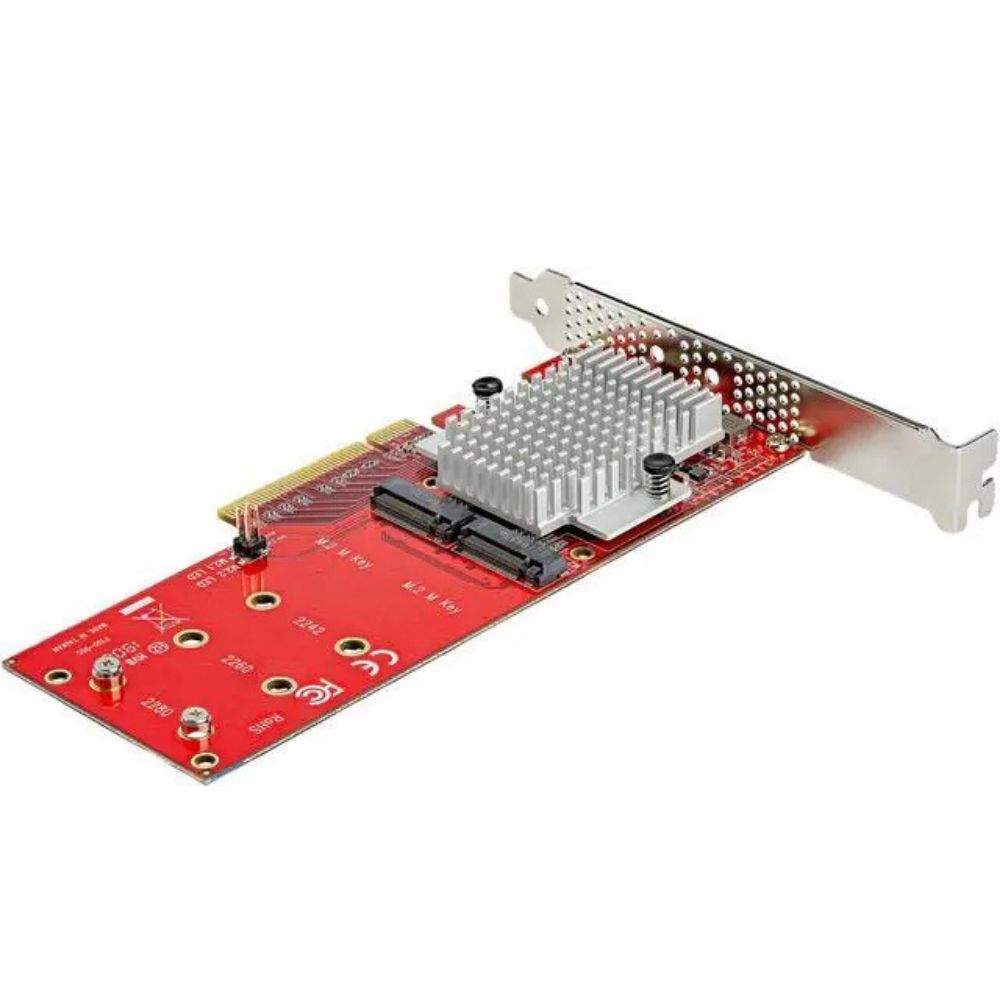

This adapter supports PCIe 3.0 through an x8 host interface and uses a high‑speed ASM2824 switch to manage simultaneous access to two M.2 drives. It accommodates both NVMe and PCIe‑AHCI formats, providing flexibility in drive selection for boot, caching, or scratch storage. The design does not depend on motherboard PCIe bifurcation, simplifying deployment across a wide range of platforms that include PCIe 2.0 and PCIe 1.0.

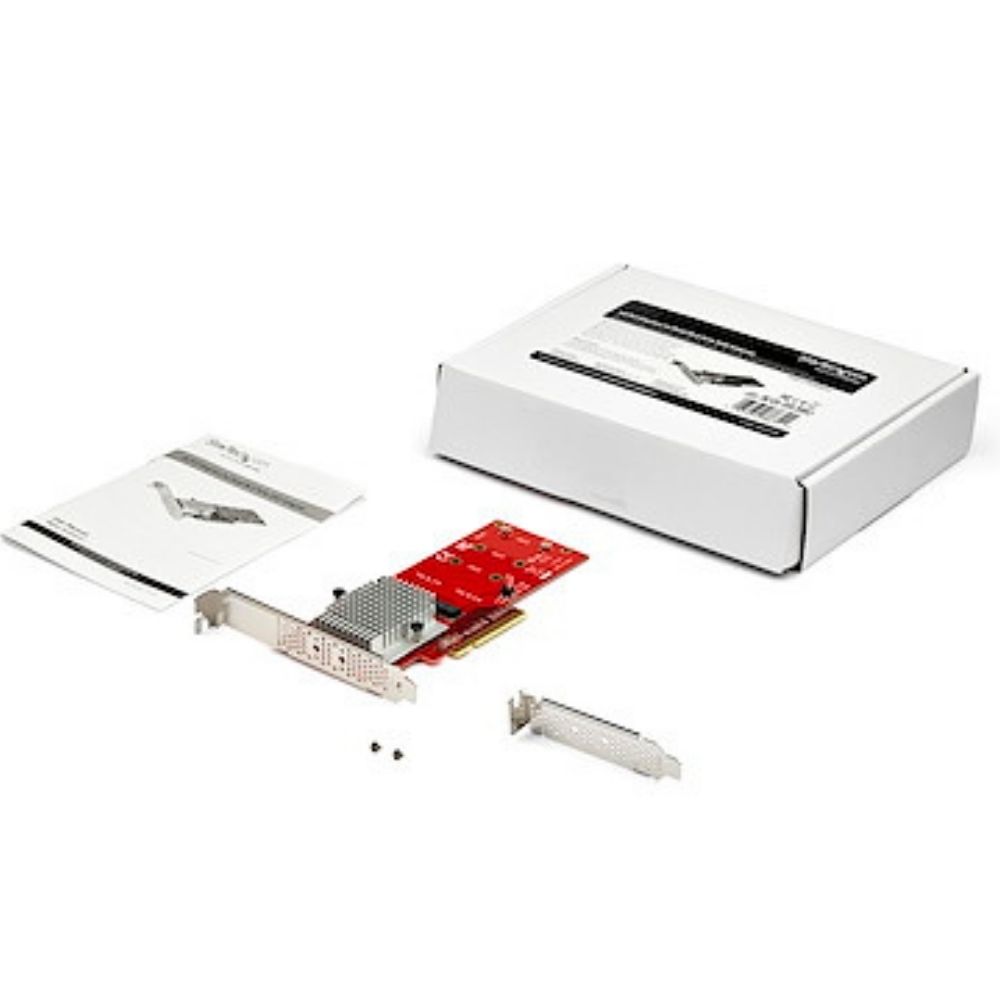

Mechanically the card fits into standard PCIe x8 or larger slots in desktop or server chassis. It includes both full‑height and low‑profile brackets, facilitating installation in standard and small‑form‑factor systems. Backward compatibility with older PCIe generations ensures broad platform support without complex BIOS configurations.

Integration with OS environments is host‑transparent; the card presents installed M.2 SSDs as internal storage devices recognized natively by Windows, Linux, and other operating systems without needing special drivers. Software RAID configurations can be layered above the hardware to enable redundancy or performance enhancements.

In practical deployments, this adapter is used to augment storage density and performance in workstations and small servers by enabling dual M.2 SSDs for boot and data tasks. It is not designed for external storage applications or environments requiring hardware RAID beyond what the OS software stack supports.

Typical Deployment Scenarios:

• Expand internal NVMe storage on workstations and servers
• Dual boot and data drive configurations on PCIe slots
• Add high‑speed scratch storage for content creation rigs
• Increase storage density in small‑form‑factor PCs
• Enable software RAID setups using internal M.2 SSDs

Technical Specifications:

Compatibility / Ecosystem:

Compatible PCIe Slots: PCIe x8 or larger on desktop and server boards

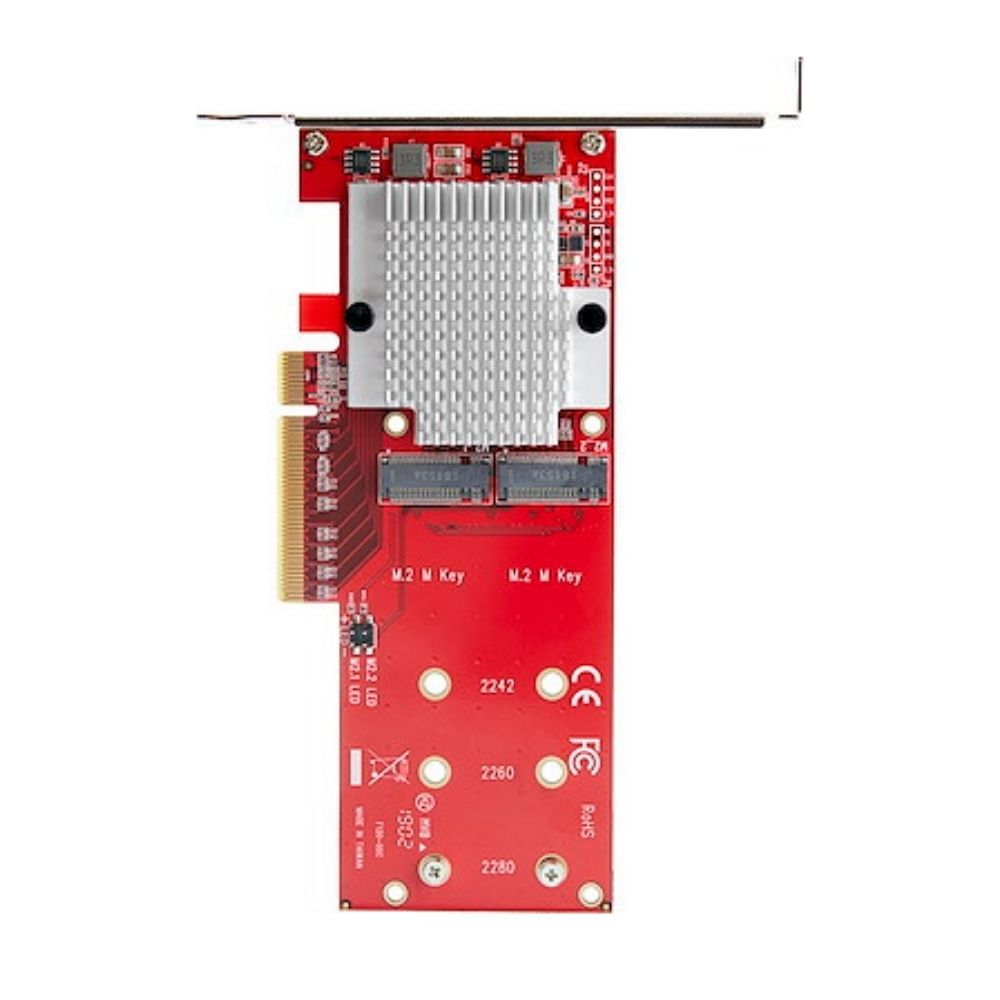

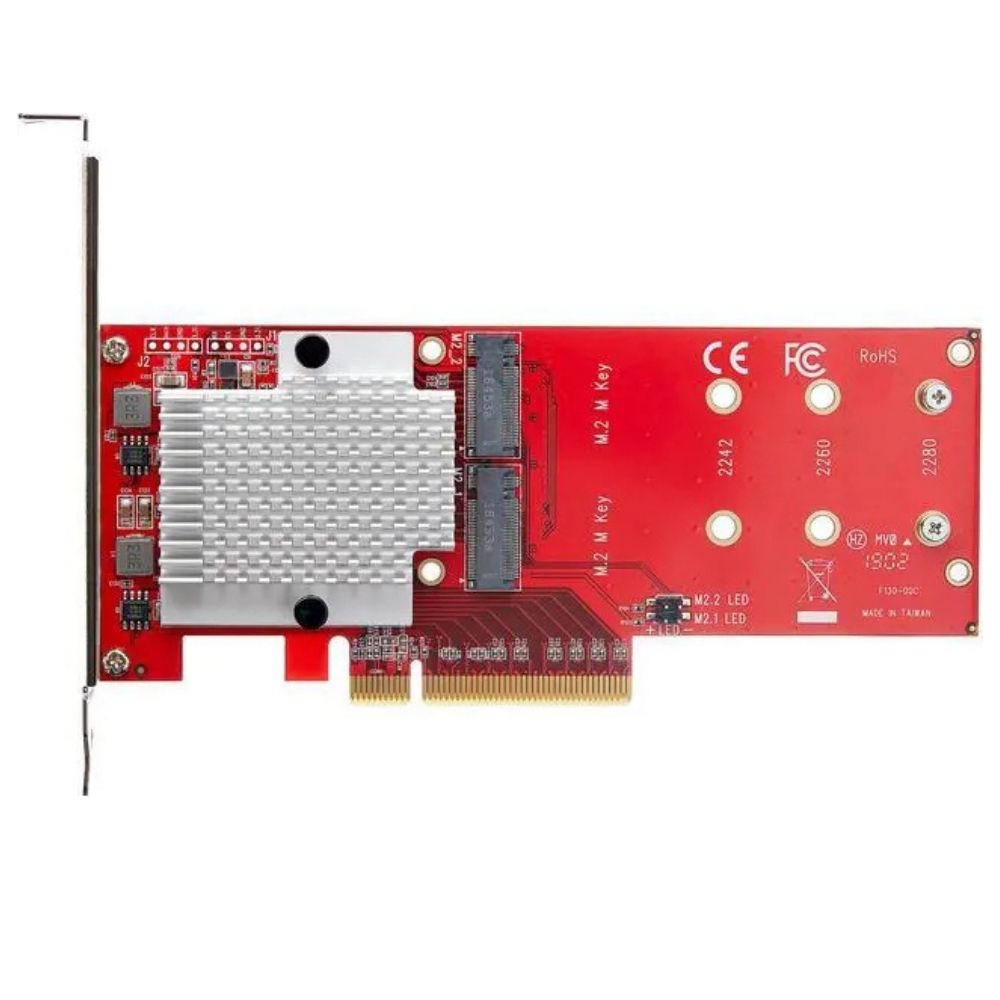

Drive Ecosystem: M.2 PCIe SSDs in 2242/2260/2280 sizes
OS Support: Native NVMe/AHCI detection in Windows, Linux, macOS
Bracket Support: Full and low‑profile chassis installations
