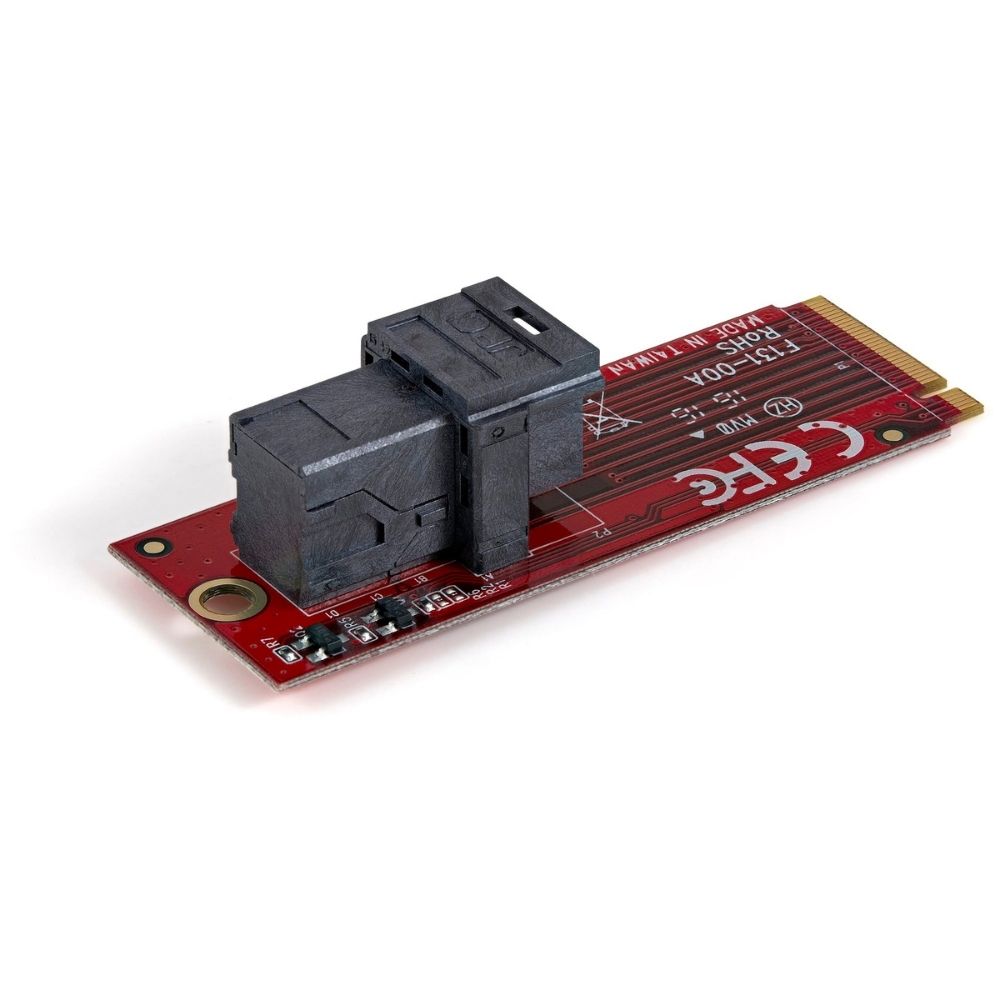

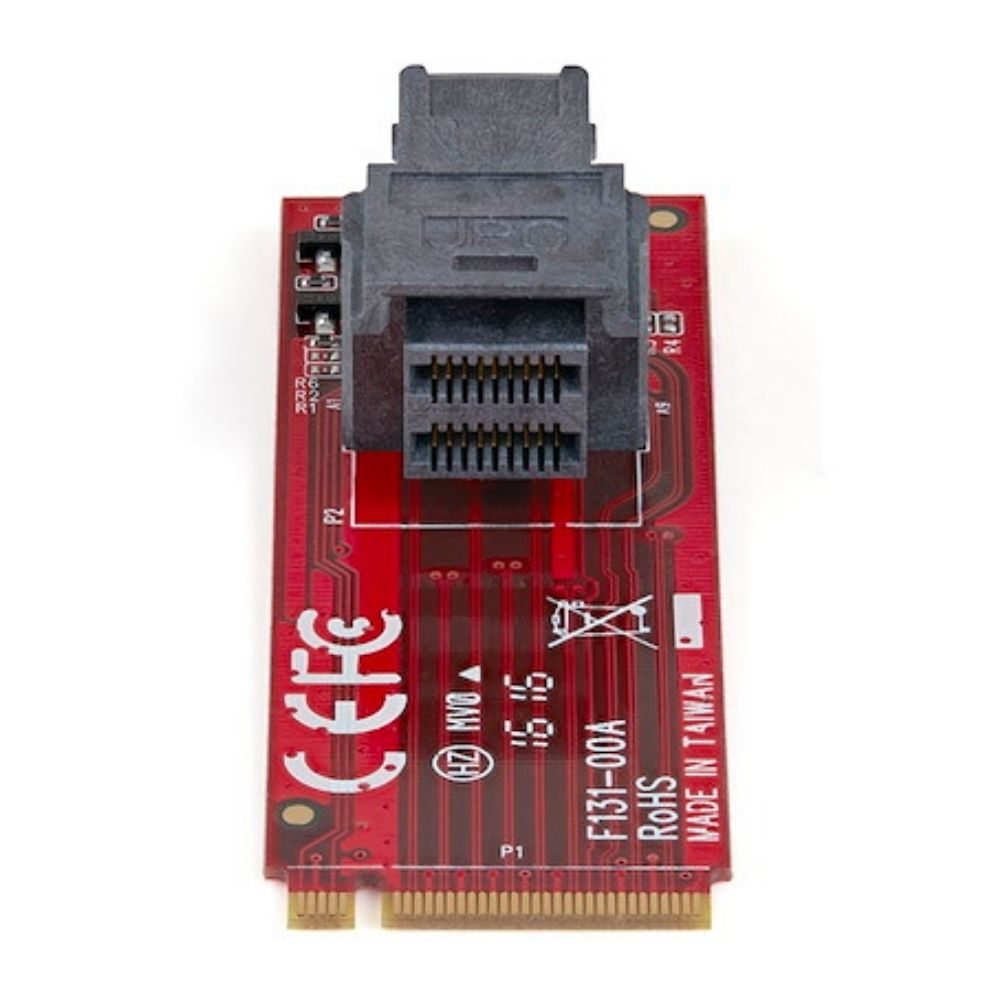

StarTech M2E4SFF8643 – U.2 (SFF-8643) to M.2 PCIe Adapter Card

StarTech M2E4SFF8643 – U.2 (SFF-8643) to M.2 PCIe Adapter Card

Overview

The StarTech M2E4SFF8643 is a PCIe adapter card designed to connect U.2 (SFF-8643) NVMe SSDs to systems using an M.2 PCIe x4 host interface. It is used in desktop PCs and servers where enterprise U.2 NVMe drives need to be integrated without changing the motherboard or storage backplane.

The adapter is targeted at IT engineers, system builders, and storage integrators working with high-performance NVMe storage in mixed hardware environments. It enables compatibility between U.2 enterprise SSDs and M.2-based platforms, allowing reuse of server-grade storage devices in workstation or custom server builds.

The device operates over PCI Express signaling and provides a direct bridge between M.2 (PCIe x4) and U.2 NVMe interfaces. It is typically used in systems that require low-latency, high-throughput storage expansion without migrating to a full U.2 backplane infrastructure.

In deployment, it is commonly installed in custom servers, storage test benches, lab environments, and engineering systems where NVMe U.2 drives are evaluated or repurposed. It is not a storage controller and does not provide RAID or caching functionality—its role is strictly physical interface conversion.

The adapter is OS-independent and does not require drivers for operation, as it relies on native PCIe NVMe device enumeration.

Typical Deployment Scenarios

• Integrating U.2 NVMe SSDs into M.2-based motherboards
• Storage testing and validation environments for NVMe drives
• Server lab setups for enterprise SSD benchmarking
• Workstation builds using enterprise-grade U.2 SSDs
• Hardware development and storage migration testing

Technical Specifications

Compatibility / Ecosystem

The M2E4SFF8643 is compatible with systems that provide an M.2 PCIe x4 slot with NVMe support. It works with enterprise U.2 NVMe SSDs and is commonly used in custom-built servers and high-performance workstations. It does not include RAID functionality and depends entirely on system BIOS/OS NVMe support.
