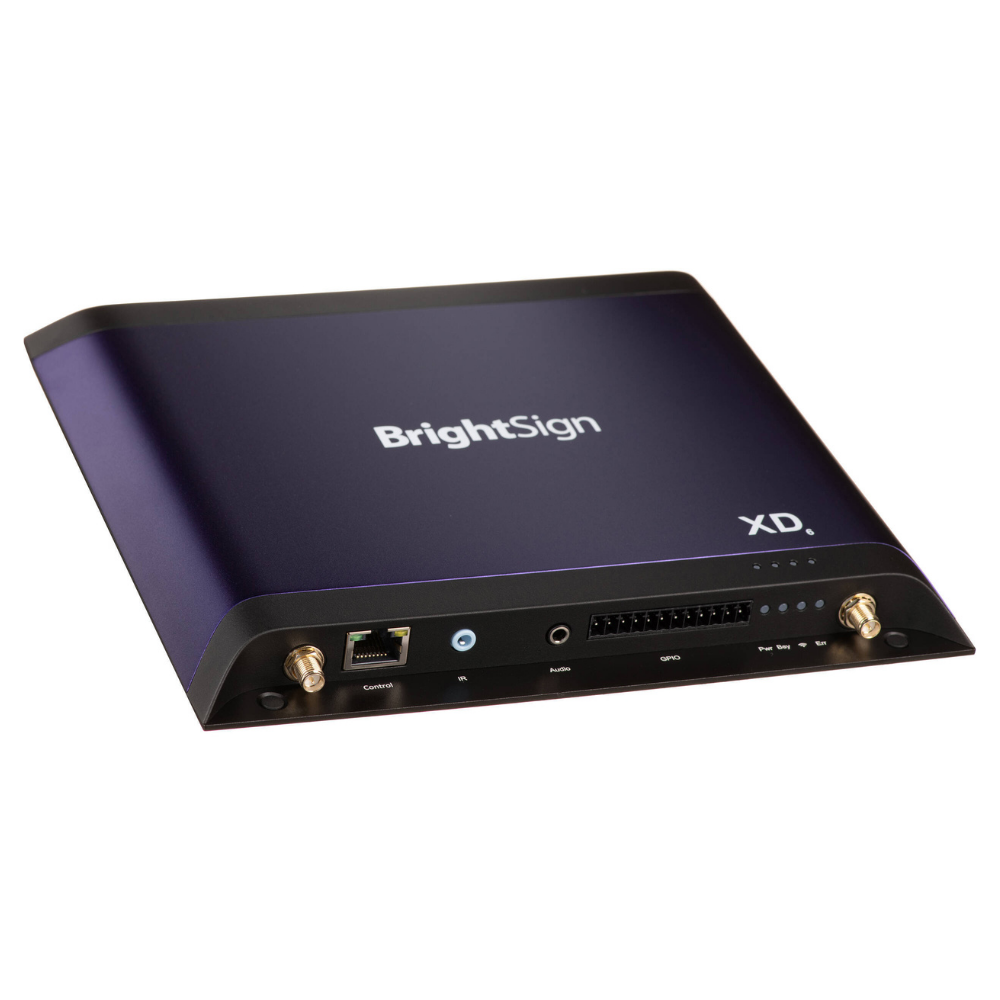

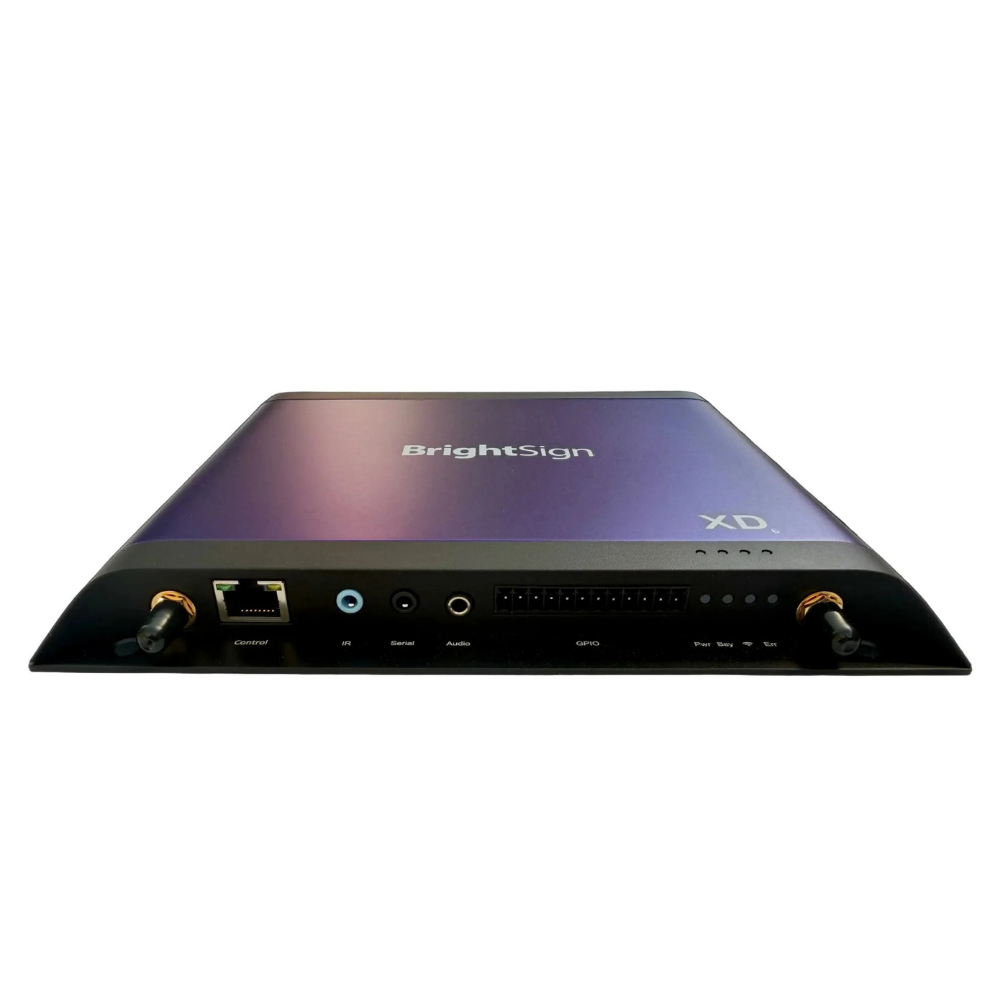

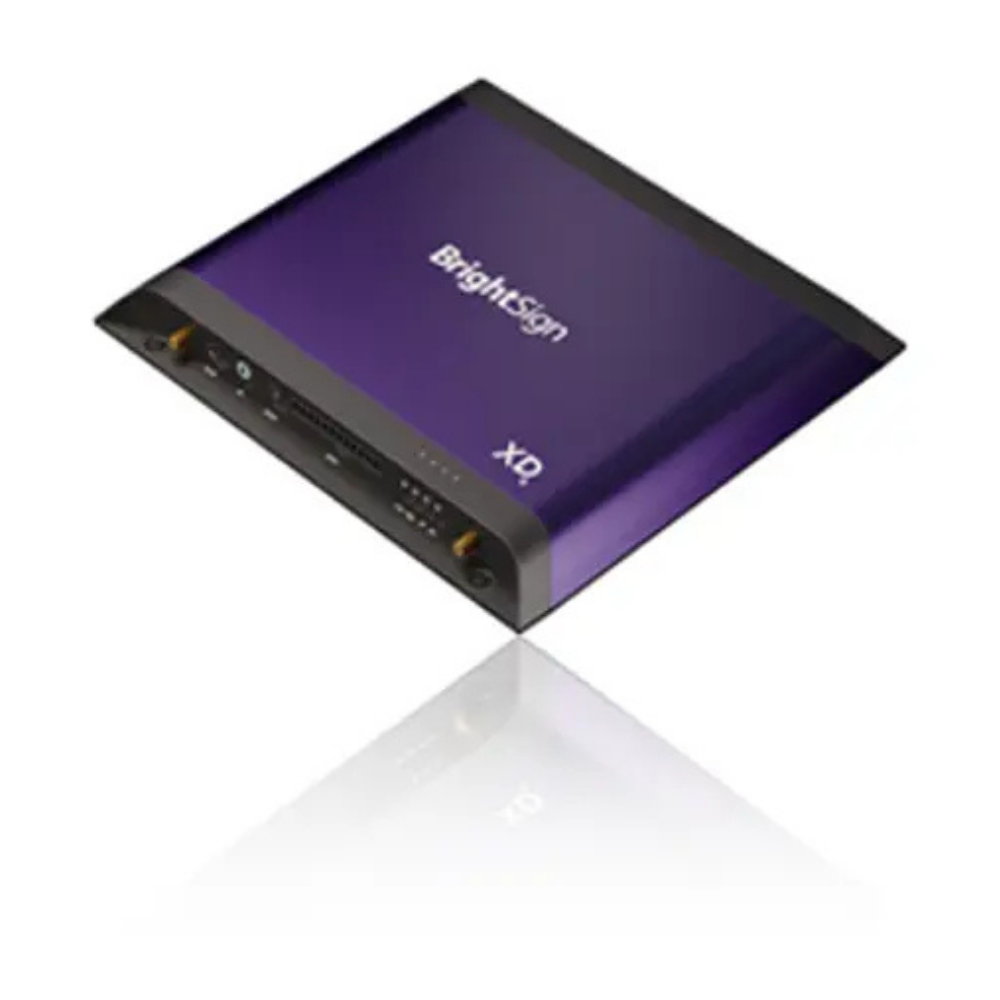

BrightSign XD236 – 4K Digital Signage Media Player

BrightSign XD236 – 4K Digital Signage Media Player

Overview

The BrightSign XD236 is a professional-grade digital signage media player designed for continuous content delivery in commercial display environments. It is deployed by AV integrators, retail operators, and enterprise IT teams to manage and deliver high-resolution multimedia content across digital signage networks. The device addresses the need for reliable, always-on playback with centralized management capabilities.

Technically, the XD236 supports 4K Ultra HD video playback at 60 frames per second, including dual 4K streams and 10-bit HDR support. It is built to handle advanced HTML5 rendering, interactive content, and dynamic media applications. The system runs on BrightSignOS and includes an integrated Neural Processing Unit (NPU) for AI-enabled signage applications.

The device integrates Power over Ethernet Plus (PoE+), allowing both power and data transmission over a single cable, simplifying installations in distributed environments. It supports multiple media formats including H.265/HEVC, H.264, and VP9, enabling compatibility with modern video pipelines.

In deployment, the XD236 is typically installed behind commercial displays in retail stores, airports, corporate offices, and public information systems. Its compact form factor and fanless design support 24/7 operation in demanding environments. It is widely used for menu boards, advertising displays, and interactive kiosks.

The player integrates into BrightSign’s ecosystem with remote management tools and compatibility with third-party CMS platforms, enabling centralized control across multiple display endpoints. It also supports expandable internal storage via M.2 SSD options and microSD, allowing local content caching for offline playback.

A practical deployment includes multi-screen synchronized signage in retail chains, where content updates are pushed remotely while playback remains locally cached for reliability. It is also used in interactive installations requiring HTML5 and touchscreen responsiveness.

This device is not suitable for general-purpose computing or desktop use, as it is purpose-built for digital signage and media playback environments.

Typical Deployment Scenarios

• Retail digital signage networks with centralized CMS
• Restaurant menu boards with 4K video playback
• Corporate communication displays in office lobbies
• Airport and transportation information screens
• Interactive kiosks using HTML5 content

Technical Specifications

Compatibility / Ecosystem

The BrightSign XD236 integrates into digital signage ecosystems supporting BrightSign CMS platforms and third-party content management systems. It is compatible with commercial displays via HDMI 2.0a and supports network-based deployments using PoE+ infrastructure. The device fits into enterprise AV environments requiring scalable signage networks with centralized control and remote monitoring.
