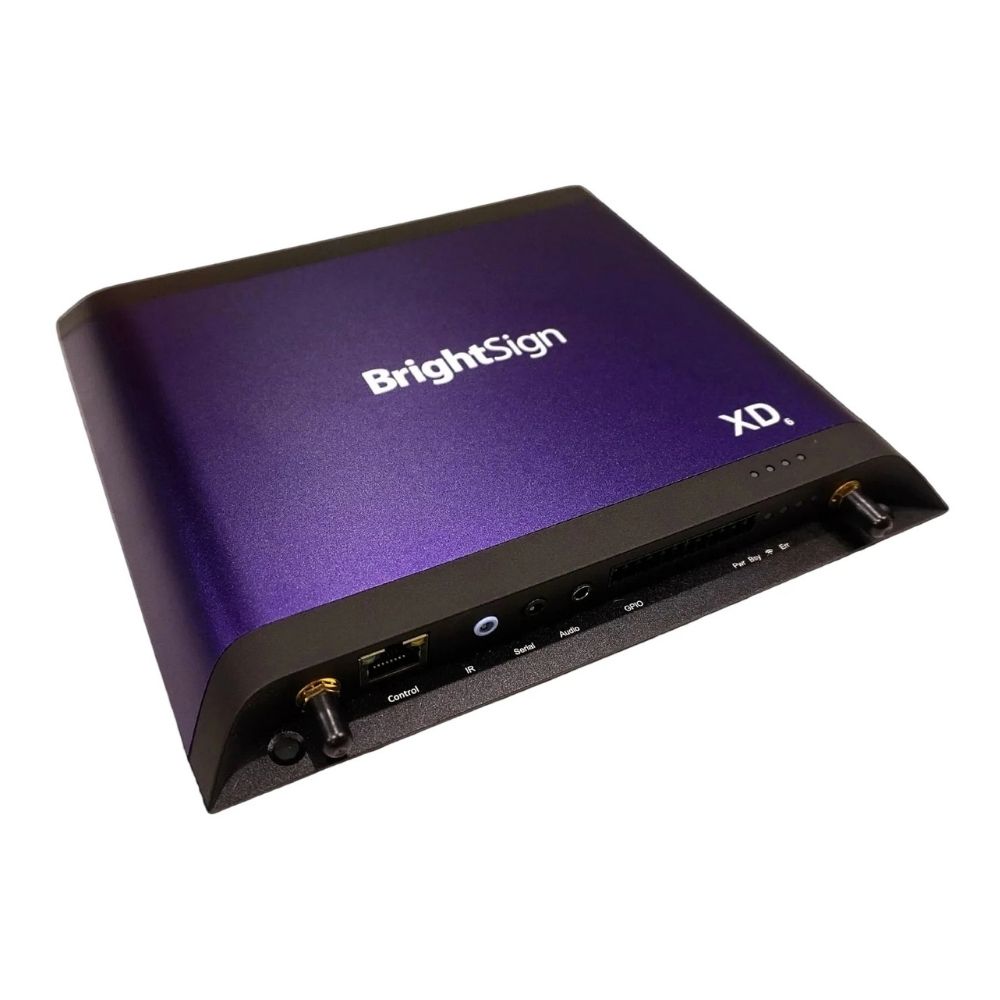

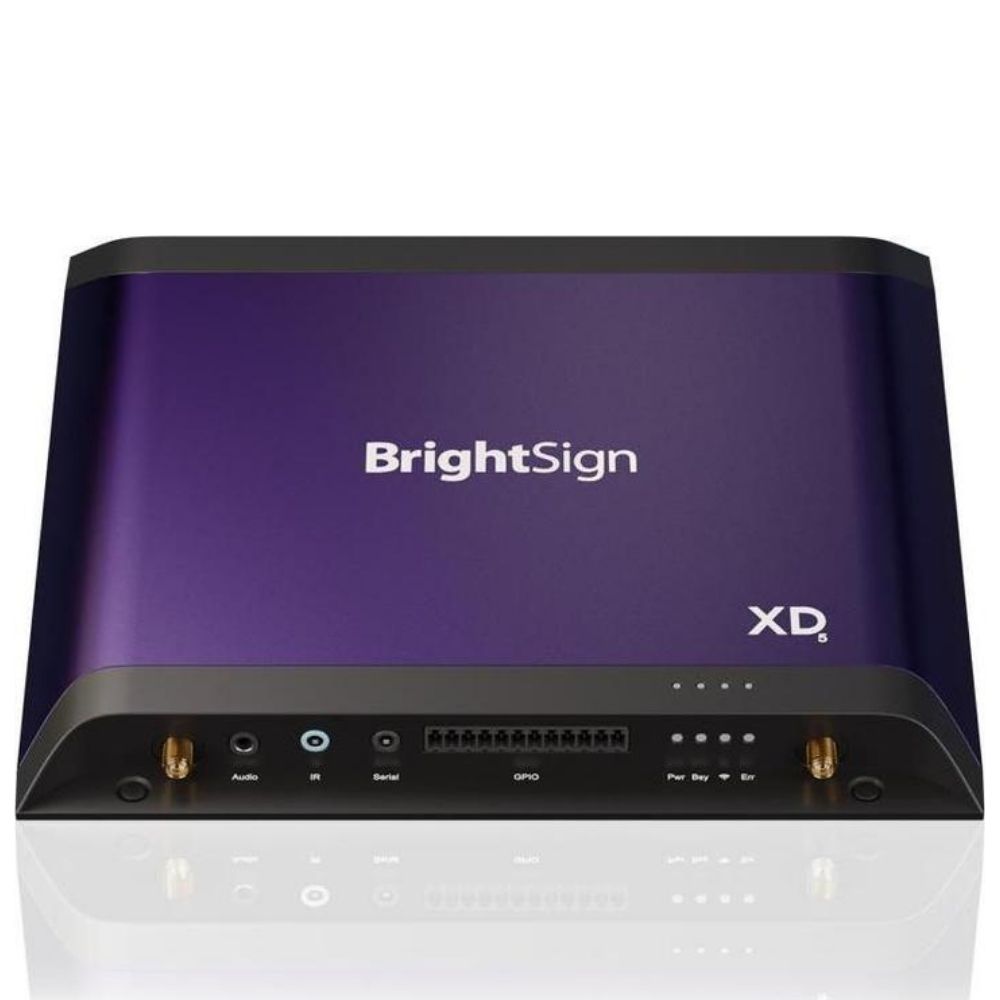

BrightSign XD1036 – 4K Digital Signage Media Player

BrightSign XD1036 – 4K Digital Signage Media Player

Overview

The BrightSign XD1036 is an enterprise-grade 4K digital signage media player designed for commercial display networks, kiosks, and interactive visual systems. It is deployed in retail environments, transportation hubs, corporate lobbies, and public information systems where reliable 24/7 content playback and remote management are required.

The device supports dual 4K video decoding with 10-bit HDR output, enabling high-quality digital signage experiences with smooth motion graphics and high-resolution content rendering. It is built on the BrightSignOS platform, which is optimized for stability, security, and continuous playback in mission-critical deployments.

In deployment, the XD1036 connects to displays via HDMI 2.0 and supports both wired Ethernet and optional wireless modules. It also includes expanded I/O such as USB-C, USB-A, GPIO, serial, and IR control, making it suitable for interactive kiosk systems and external device integration such as sensors or touch interfaces.

The system is commonly used in content-managed digital signage networks where centralized control is required. It integrates with cloud-based CMS platforms and supports remote monitoring, scheduling, and real-time content updates across distributed display networks.

A key feature is its support for PoE+ (Power over Ethernet), allowing both power and data delivery through a single cable in supported installations. It also includes an internal microSD slot and optional M.2 SSD expansion for local content storage flexibility.

Practical deployments include retail advertising screens, interactive information kiosks, airport wayfinding systems, and corporate communication displays. It is also used in multi-screen video wall environments requiring synchronized playback.

This device is not intended for general computing or desktop use. It is purpose-built for dedicated signage workloads and should not be used as a standard PC replacement.

Typical Deployment Scenarios

• Retail digital advertising displays
• Airport and transportation information kiosks
• Corporate lobby communication screens
• Interactive museum and exhibition displays
• Multi-screen synchronized video wall systems

Technical Specifications

Compatibility / Ecosystem

The BrightSign XD1036 integrates into professional digital signage ecosystems using BrightSignOS and third-party CMS platforms. It supports enterprise content delivery networks, remote device monitoring, and scheduled playback systems. It is compatible with commercial displays, touch overlays, sensors, and external control systems used in interactive signage installations.
