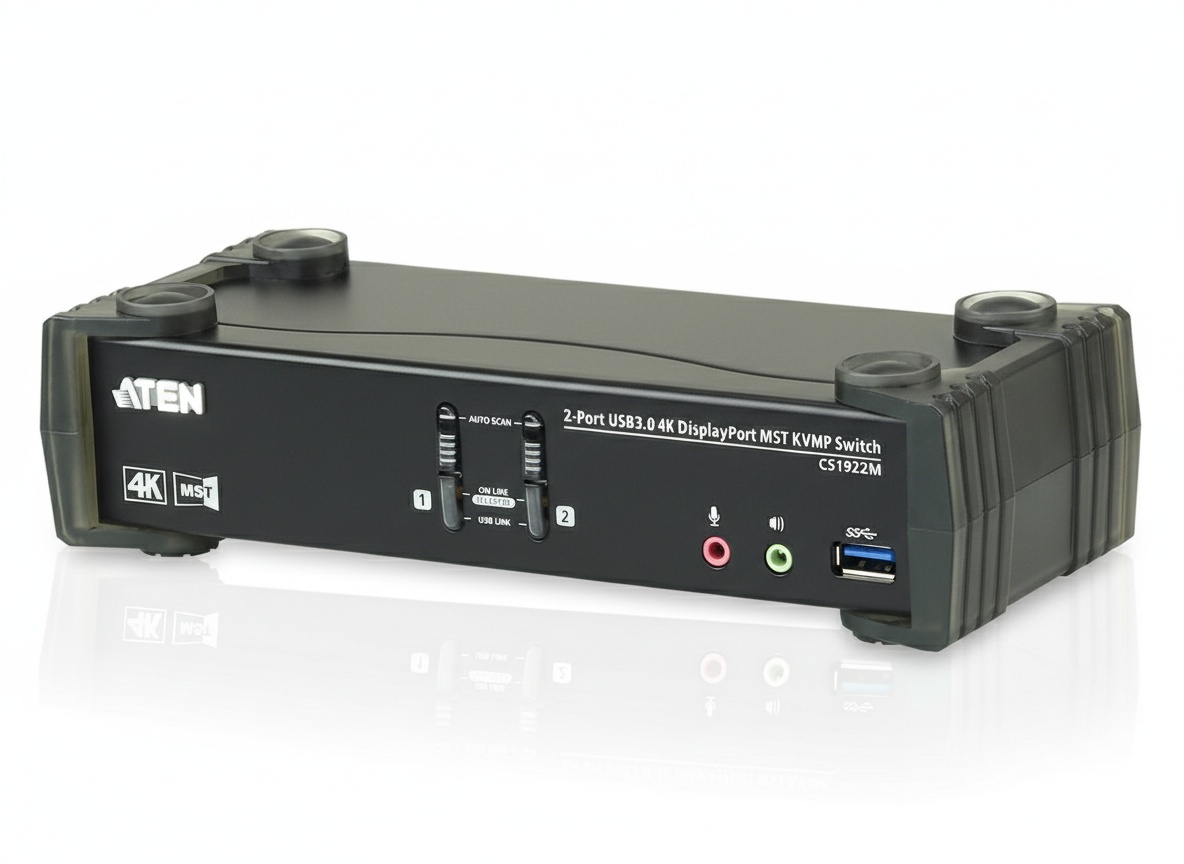

Aten CS1922M 2-Port 4K DisplayPort MST KVMP Switch
Roll over image to zoom in
2,386.06 AED3,255.00 AED (-27%)
Key Features
- MST allows two displays from one DisplayPort source.
- Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz.
- Integrated 2-port USB 3.1 Gen 1 hub with 5Gbps speeds.
- Independent switching of KVM, USB, and audio focus.
Aten CS1922M 2-Port 4K DisplayPort MST KVMP Switch in Dubai
Overview :
The Aten CS1922M is a professional-grade 2-port KVMP switch engineered for power users who require high-resolution video and multi-display efficiency from a single DisplayPort source. By integrating a 2-port USB 3.1 Gen 1 hub and Multi-Stream Transport (MST) technology, this unit allows a single operator to control two DisplayPort-enabled computers while outputting to two monitors via a single DP 1.2 connection. This makes it an ideal solution for data-intensive environments such as financial trading floors, CAD/CAM engineering workstations, and graphic design studios where screen real estate and visual precision are critical.
Deployment is seamless in desktop or workstation contexts, providing flexible switching via front-panel pushbuttons, keyboard hotkeys, mouse wheel, or RS-232 serial commands. The CS1922M supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz, ensuring absolute clarity for detailed technical tasks. Beyond video, it features independent switching for KVM, USB peripherals, and audio focus. This allows users to maintain a VoIP call or listen to audio from one computer while performing tasks on the other. Its built-in RS-232 port offers integration possibilities for high-end hardware control systems, ensuring the CS1922M fits into sophisticated enterprise workflows while reducing cable clutter and optimizing workspace ergonomics.
Specifications :
| Brand | Aten |
| Part Number | CS1922M |
| Product Type | KVMP Switch |
| Computer Connections | 2 |
| Port Selection | Pushbutton, Hotkey, Mouse, RS-232 |
| Video Resolution | 3840 x 2160 @ 60Hz |
| USB Specification | USB 3.1 Gen 1 (5 Gbps) |
| Video Input | 2 x DisplayPort Female |
| Video Output | 2 x DisplayPort Female (MST) |
| Audio Ports | 4 x 3.5mm Jack (2 x Front, 2 x Rear) |
| Power Consumption | DC 5V, 4.04W |
| Operating Temp | 0°C to 50°C |
| Dimensions | 210 x 88 x 55.5 mm |
Additional information
| Weight | 0.73 kg |
|---|---|
| Dimensions | 21.00 × 8.80 × 5.55 cm |
