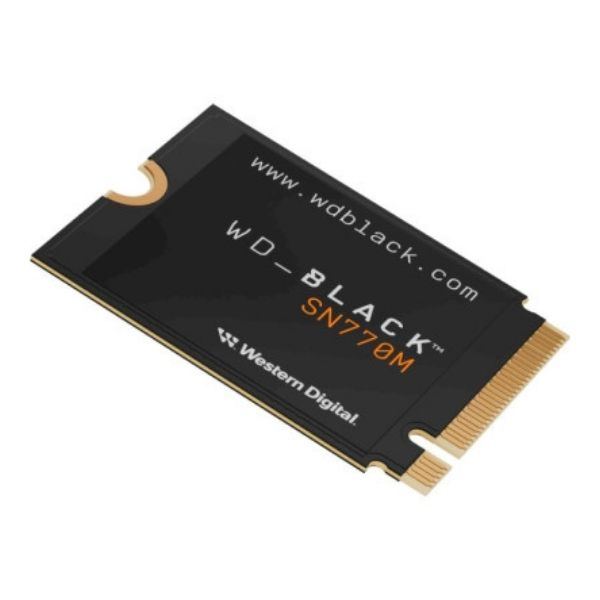

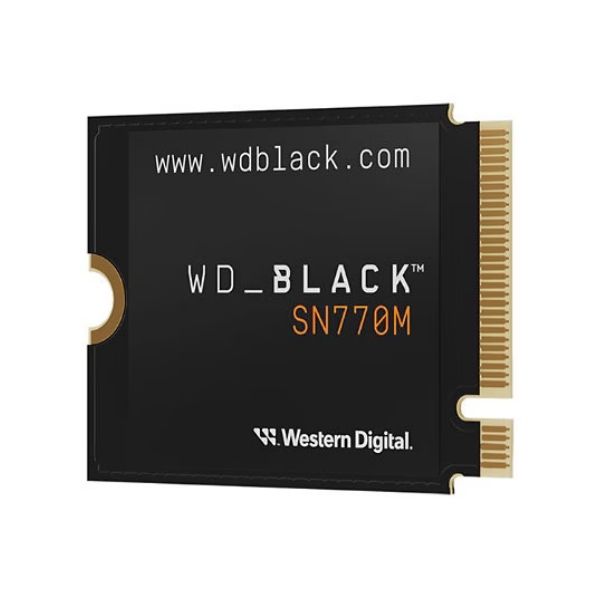

Western Digital WDS500G3X0G-00CHY0 – WD Black SN770M 500GB NVMe SSD
Key Features
- 500GB PCIe 4.0 x4 NVMe storage
- Compact M.2 2230 form factor
- Up to 5000 MB/s read performance
- TLC 3D NAND flash architecture
- 300 TBW endurance rating for long-term use
Please fill the form to get price quote.
Western Digital WDS500G3X0G-00CHY0 – WD Black SN770M 500GB NVMe SSD
Overview
Western Digital WDS500G3X0G-00CHY0 is a WD Black SN770M solid-state drive designed for notebooks and handheld gaming devices requiring high-speed PCIe Gen4 storage. It delivers NVMe performance in the compact M.2 2230 form factor, making it suitable for space-constrained systems and mobile gaming platforms.
The drive uses TLC 3D NAND flash memory and a PCIe 4.0 x4 interface to provide fast application loading, game installation, and system responsiveness. It is commonly deployed in handheld gaming consoles, mobile workstations, and compact computing platforms where performance and capacity upgrades are required. Supported specifications include up to 5000 MB/s sequential read speed, 4000 MB/s sequential write speed, and 300 TBW endurance.
Typical Deployment Scenarios
- Handheld gaming console storage upgrades
- Notebook NVMe performance upgrades
- Compact form factor computing systems
- Mobile workstation storage expansion
Specifications
| Specification | Details |
|---|---|
| Brand | Western Digital |
| Part Number | WDS500G3X0G-00CHY0 |
| Product Type | NVMe Solid State Drive |
| Product Family | WD Black SN770M |
| Storage Capacity | 500 GB |
| Form Factor | M.2 2230 |
| Interface | PCIe 4.0 x4 NVMe |
| NAND Type | TLC 3D NAND |
| Sequential Read Speed | Up to 5000 MB/s |
| Sequential Write Speed | Up to 4000 MB/s |
| Random Read Performance | Up to 460,000 IOPS |
| Random Write Performance | Up to 800,000 IOPS |
| Endurance Rating | 300 TBW |
| Supported Devices | Notebook, Handheld Gaming Console |
| Warranty | 5-Year Limited Warranty |
Compatibility / Ecosystem
The WD Black SN770M is designed for systems supporting M.2 2230 PCIe NVMe storage. It is commonly used in compact notebooks and handheld gaming devices that require high-performance storage in a small form factor. Compatibility depends on device firmware, thermal design, and M.2 2230 slot support.
Additional information
| Weight | 0.0028 kg |
|---|---|
| Dimensions | 2.997 × 2.21 × 0.229 cm |
