Ubiquiti UCG-MAX – UniFi Cloud Gateway Max 2.5GbE
Roll over image to zoom in
1,464.39 AED1,522.50 AED (-4%)
Key Features
• 5× 2.5GbE ports for high-speed network connectivity
• IDS/IPS security with up to ~2Gbps throughput
• Integrated UniFi OS with multi-application support
• Multi-WAN load balancing and failover capability
• Built-in NVMe storage for UniFi Protect NVR usage
Ubiquiti UCG-MAX – UniFi Cloud Gateway Max 2.5GbE
Overview
UCG-MAX is a compact UniFi cloud-managed network gateway designed for small-to-medium business deployments requiring centralized control, routing, and security in a single appliance. It replaces separate router, controller, and security devices with an integrated UniFi OS platform.
The device provides multi-WAN routing, IDS/IPS security, and 2.5GbE connectivity across all ports. It delivers up to ~1.5–2.3 Gbps IDS/IPS throughput depending on configuration, enabling deep packet inspection without significantly impacting network performance. It includes a quad-core ARM processor, 3GB RAM, and integrated NVMe storage (commonly 512GB) for UniFi applications such as Protect (NVR).
It is deployed at the network edge in branch offices, SMB environments, retail sites, and distributed enterprise locations. It can manage 30+ UniFi devices and 300+ connected clients, making it suitable for scalable yet compact network environments.
Integration is native to the UniFi ecosystem, supporting UniFi Network, Protect, Access, Talk, and Connect applications. It supports SD-WAN, VPN (IPsec, WireGuard, OpenVPN), VLAN segmentation, and centralized cloud-based management.
It is not intended for large enterprise core routing, high-density data center environments, or deployments requiring 10GbE backbone switching.
Typical Deployment Scenarios
• Branch office gateway with multi-WAN failover
• SMB network core with UniFi device management
• Retail or franchise site centralized network control
• Edge security gateway with IDS/IPS enabled
• UniFi Protect deployment with local NVR storage
Specifications
| Specification | Value |
|---|---|
| Brand | Ubiquiti |
| Part Number | UCG-MAX |
| Product Type | Cloud Gateway / Security Router |
| Processor | Quad-core ARM Cortex-A53 (1.5 GHz) |
| Memory | 3 GB DDR4 |
| Storage | 512 GB NVMe SSD (config dependent) |
| WAN Ports | 1× 2.5GbE RJ45 (remappable for multi-WAN) |
| LAN Ports | 4× 2.5GbE RJ45 |
| Routing Throughput | Up to ~1.5–2.3 Gbps (IDS/IPS enabled) |
| Max Managed Devices | 30+ UniFi devices |
| Max Clients | 300+ concurrent users |
| Security Features | Stateful firewall, IDS/IPS, DPI, VLAN |
| VPN Support | IPsec, OpenVPN, WireGuard, L2TP |
| Power Method | USB-C (5V DC / 5A) |
| Max Power Consumption | ~16.1W |

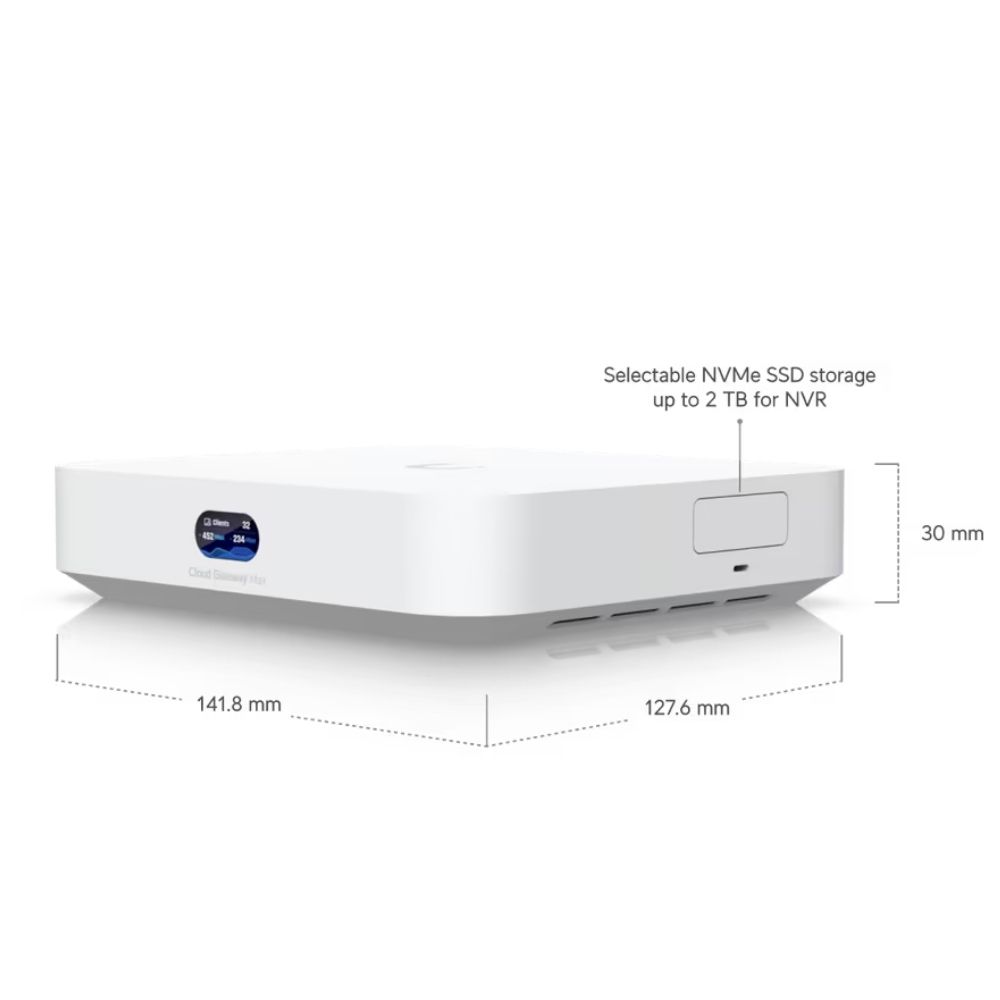

| Form Factor (H × W × D in inches) | 1.2 × 5.6 × 5.0 |
| Weight (lbs) | ~1.0–1.1 |
Compatibility / Ecosystem
Fully integrated with UniFi OS ecosystem including UniFi Network, Protect, Access, and Talk. Compatible with UniFi switches, access points, and cameras. Supports cloud-based management via UniFi Controller and mobile applications. Works within VLAN-segmented enterprise networks and SD-WAN deployments.
Additional information
| Brand | Ubiquiti |
|---|
