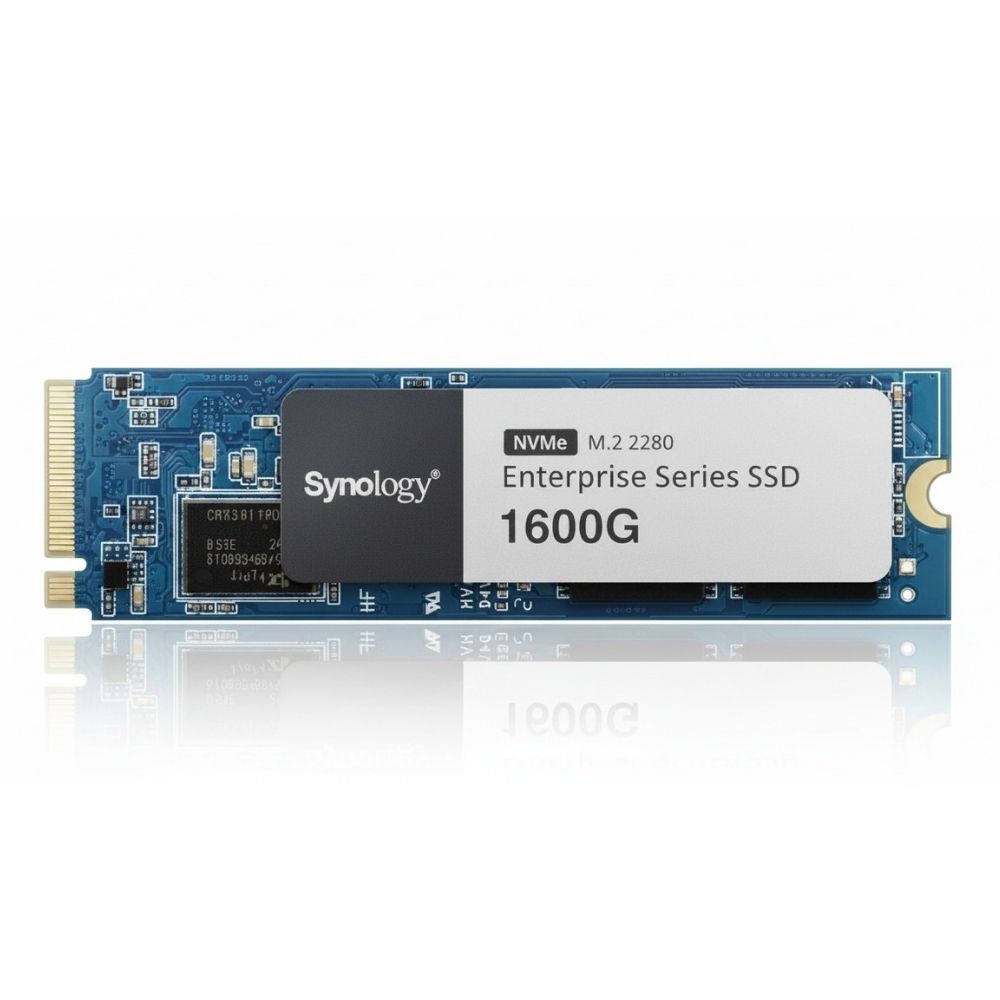

Synology SNV5420-1600G – 1.6TB M.2 NVMe Enterprise NAS SSD
Roll over image to zoom in
3,828.09 AED3,885.00 AED (-1%)
Key Features
• 1.6TB NVMe SSD optimized for NAS caching workloads
• PCIe Gen3 x4 interface with up to 3000MB/s read
• Up to ~660K IOPS for high-concurrency environments
• Endurance up to ~2900TBW for continuous operation
• DSM-integrated monitoring and firmware management
Synology SNV5420-1600G – 1.6TB M.2 NVMe Enterprise NAS SSD
Overview
Synology SNV5420-1600G is an enterprise-class NVMe solid state drive designed specifically for Synology NAS environments where SSD caching is required to accelerate storage performance. It is deployed by IT administrators and storage architects managing file servers, virtualization platforms, and database-backed NAS systems.
The drive provides 1.6TB capacity and operates over a PCIe Gen3 x4 NVMe interface in an M.2 2280 form factor. It delivers sustained sequential read speeds up to ~3000 MB/s and write speeds up to ~1000 MB/s, with random performance reaching up to ~660K read IOPS and ~120K write IOPS.
It is primarily used as an SSD cache layer rather than primary storage, significantly improving I/O responsiveness for frequently accessed data in NAS systems. It fits into environments such as enterprise file sharing, virtualization clusters, and high-concurrency workloads where HDD-based storage needs acceleration.
Integration is tightly coupled with Synology DiskStation Manager (DSM), allowing monitoring, firmware updates, and workload analytics directly from the NAS OS. It is validated specifically for Synology systems, ensuring compatibility and stable performance in supported models.
This drive is not intended for general desktop use or standalone storage deployments outside supported NAS ecosystems, as its firmware and optimization are purpose-built for Synology platforms.
Typical Deployment Scenarios
• SSD cache acceleration in Synology NAS systems
• Virtualization storage performance enhancement
• Database-backed NAS workloads with high I/O demand
• File server environments with frequent data access
• Hybrid storage arrays combining HDD + NVMe cache
Specifications
| Specification | Value |
|---|---|
| Brand | Synology |
| Part Number | SNV5420-1600G |
| Product Type | Enterprise NVMe SSD (NAS Cache) |
| Capacity | 1.6 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3 x4 NVMe |
| NAND Type | 3D NAND |
| Max Sequential Read | Up to ~3000 MB/s |
| Max Sequential Write | Up to ~1000 MB/s |
| Random Read IOPS | Up to ~660,000 |
| Random Write IOPS | Up to ~120,000 |
| Endurance | Up to ~2900 TBW |
| MTBF | ~3 million hours |
| Power Consumption | ~5–5.5W active |
| Operating Temperature | 0°C to 70°C |
| Form Factor (H × W × D in inches) | ~3.15 × 0.87 × 0.14 |
| Weight (lbs) | ~0.09 |
Compatibility / Ecosystem
Synology SNV5420-1600G is designed for Synology NAS systems supporting M.2 NVMe SSD caching, including Plus and XS series models. It integrates with DSM for lifecycle management, health monitoring, and firmware updates. It also supports deployment via Synology M.2 adapter cards such as E10M20-T1 and M2D20.
Additional information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 8 × 2.2 × 0.35 cm |
| Brand | Synology |
