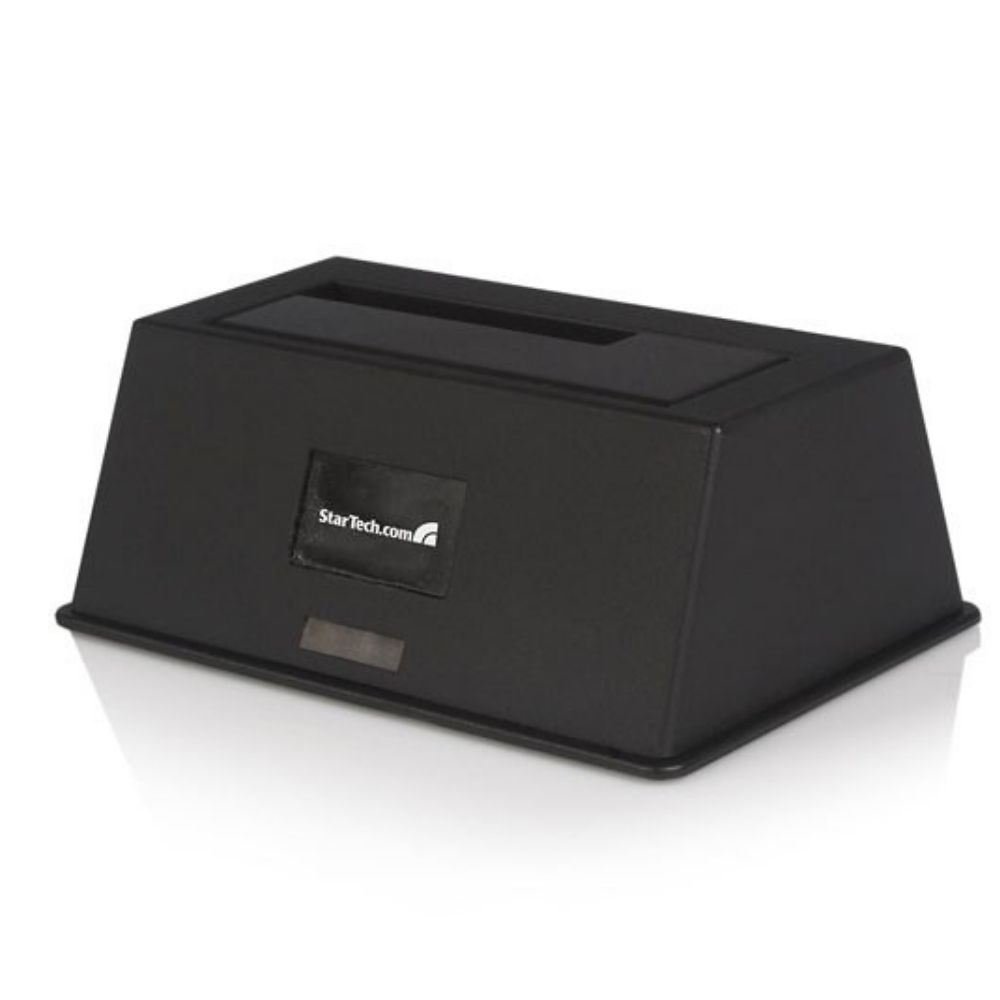

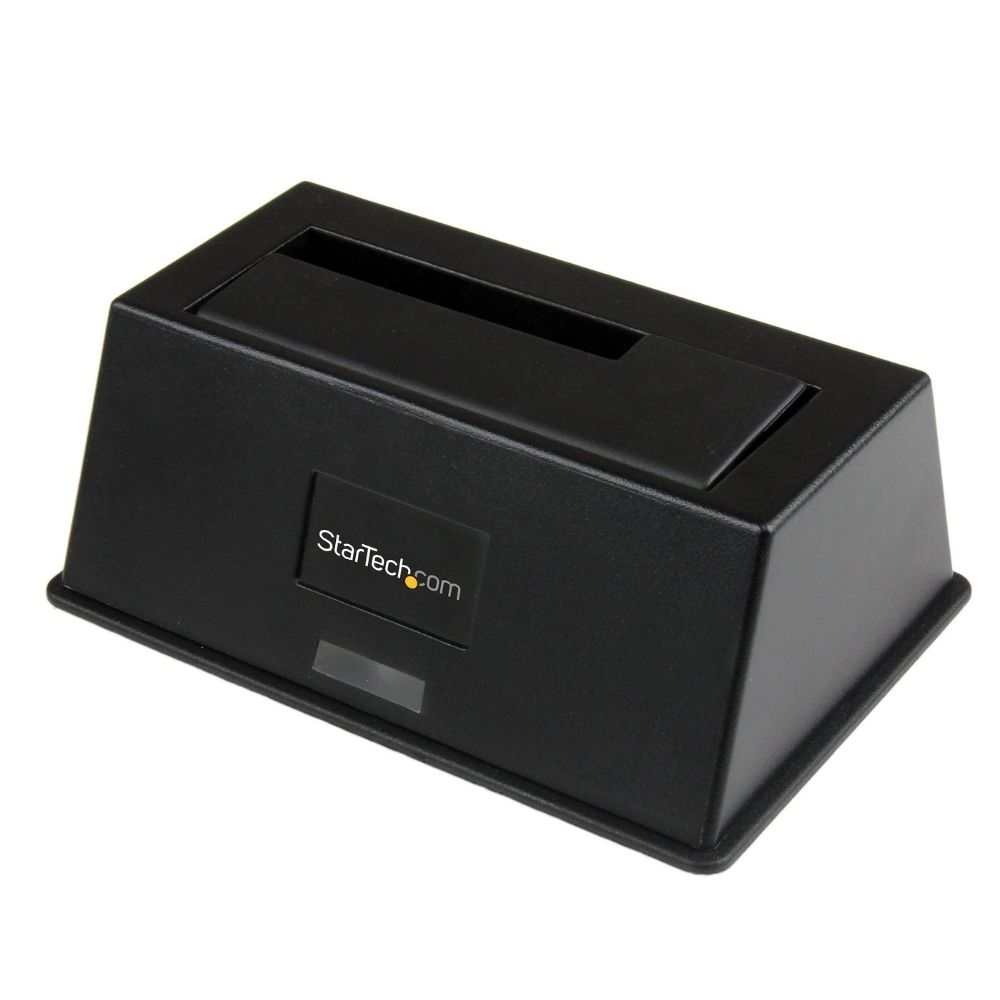

StarTech SDOCKU33BV USB 3.0 SATA HDD/SSD Dock

StarTech SDOCKU33BV USB 3.0 SATA HDD/SSD Dock

Overview:

The StarTech SDOCKU33BV is a single‑bay USB 3.0 to SATA docking station designed to provide direct access to SATA hard disk drives (HDDs) and solid state drives (SSDs) without installing them inside a computer. Technical support teams and system administrators deploy this device in lab, imaging, backup, and data recovery workflows where rapid access to removable media is needed. It enables connection of drives to host systems via a USB interface with support for high‑speed transfers when paired with a UASP‑enabled host controller.

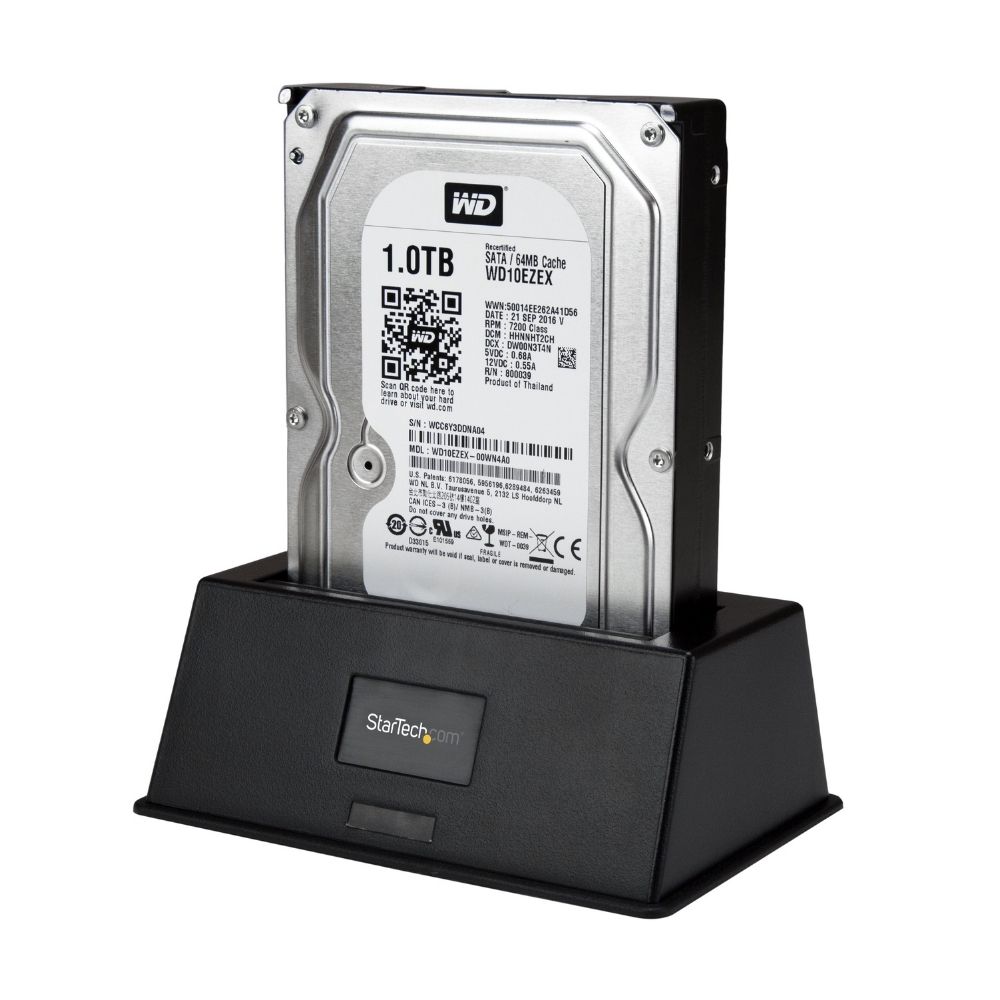

The unit supports 2.5‑inch and 3.5‑inch SATA drives across SATA I/II/III revisions, accommodating a broad range of HDDs and SSDs up to tested capacities of 4 TB and beyond with compatible drives. The USB 3.0 host interface provides up to 5 Gbps theoretical throughput, facilitating faster access and data transfer compared with legacy USB standards. Hot‑swappable drive insertion and removal allow technicians to quickly exchange media without powering down the host system.

The SDOCKU33BV fits on a desktop or in a service bench environment, where space efficiency and accessibility to multiple drives over time are priorities. It is suitable for use with workstations, servers with available USB ports, and mobile service units handling drive cloning or diagnostics. The top‑loading bay design enables tool‑free insertion of a wide range of SATA formats.

From an integration perspective, this dock is host‑agnostic with respect to operating systems, supporting major platforms without the need for additional drivers. It includes LED indicators for power and activity status and is powered by a universal external power adapter, maintaining compatibility with varied USB host environments.

In practice, this docking station is used in deployment scenarios where rapid physical access to drive contents is required by engineers, forensic technicians, and backup operators. Typical uses include cloning drives for deployment, extracting data from failed systems, performing integrity tests, and archiving storage media. Its simplicity of use and hot‑swap capability streamline repetitive tasks that would otherwise require internal drive installations.

This device is not intended for continuous 24/7 production file serving or as a permanent host storage solution. It also does not replace dedicated duplicator hardware where multi‑drive simultaneous cloning or sector‑level replication is required.

Typical Deployment Scenarios:

• Drive imaging station for OS deployment and cloning
• Data recovery bench for failed system drives
• Backup archival access for removable SATA media
• Test bench for SSD/HDD performance validation
• Temporary expansion of storage via external SATA access

Technical Specifications:

Compatibility / Ecosystem:

Compatible Drive Types: 2.5″ and 3.5″ SATA HDD and SSD
Host Support: USB 3.0/2.0/1.1 ports on PC, Mac, Linux systems
Protocol Support: UASP when paired with host controller
Power System: Universal external adapter for varied input voltages
