StarTech M2-REMOVABLE-PCIE-N1 PCIe 4.0 x4 M.2 NVMe Removable Adapter

StarTech M2-REMOVABLE-PCIE-N1 PCIe 4.0 x4 M.2 NVMe Removable Adapter – In Dubai

Overview

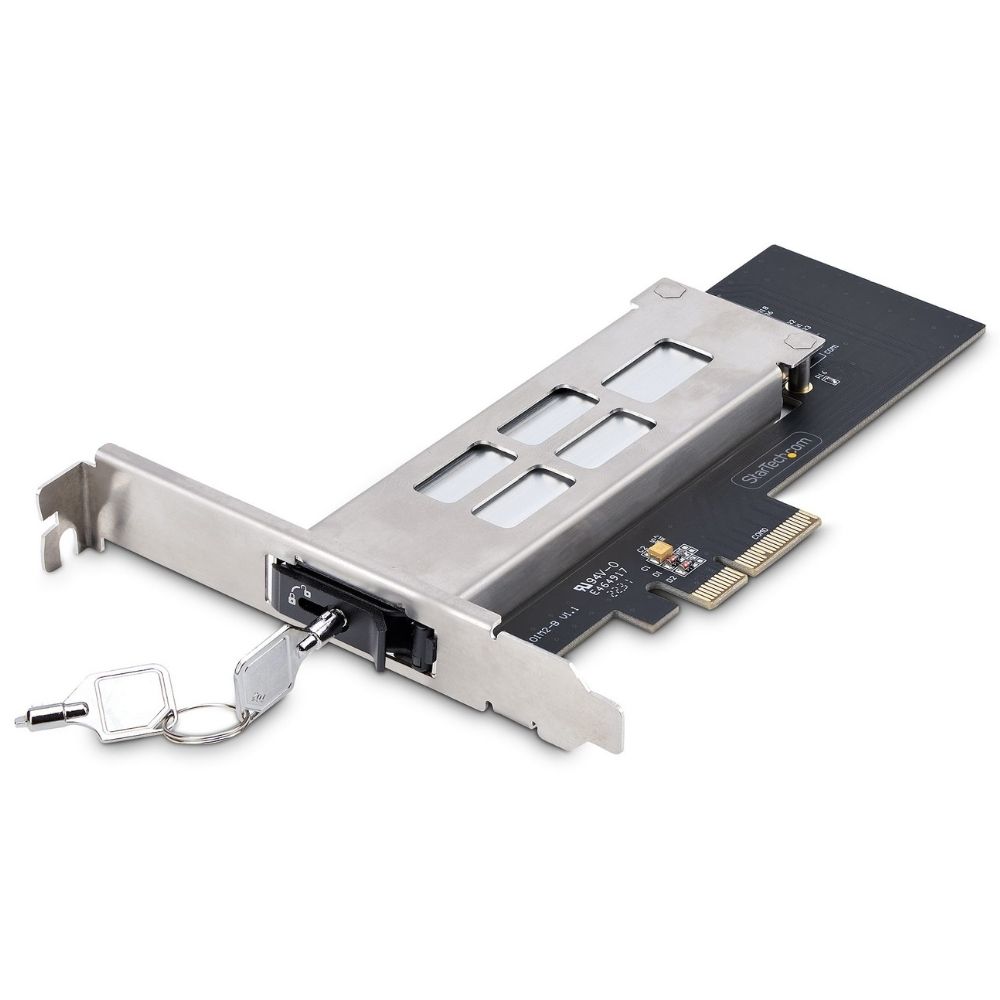

The StarTech M2-REMOVABLE-PCIE-N1 is a PCIe-based adapter designed to install and manage M.2 NVMe SSDs through a removable, front-accessible tray. It is deployed by IT engineers, system integrators, and data center technicians who require fast NVMe storage with the ability to swap drives without opening the chassis.

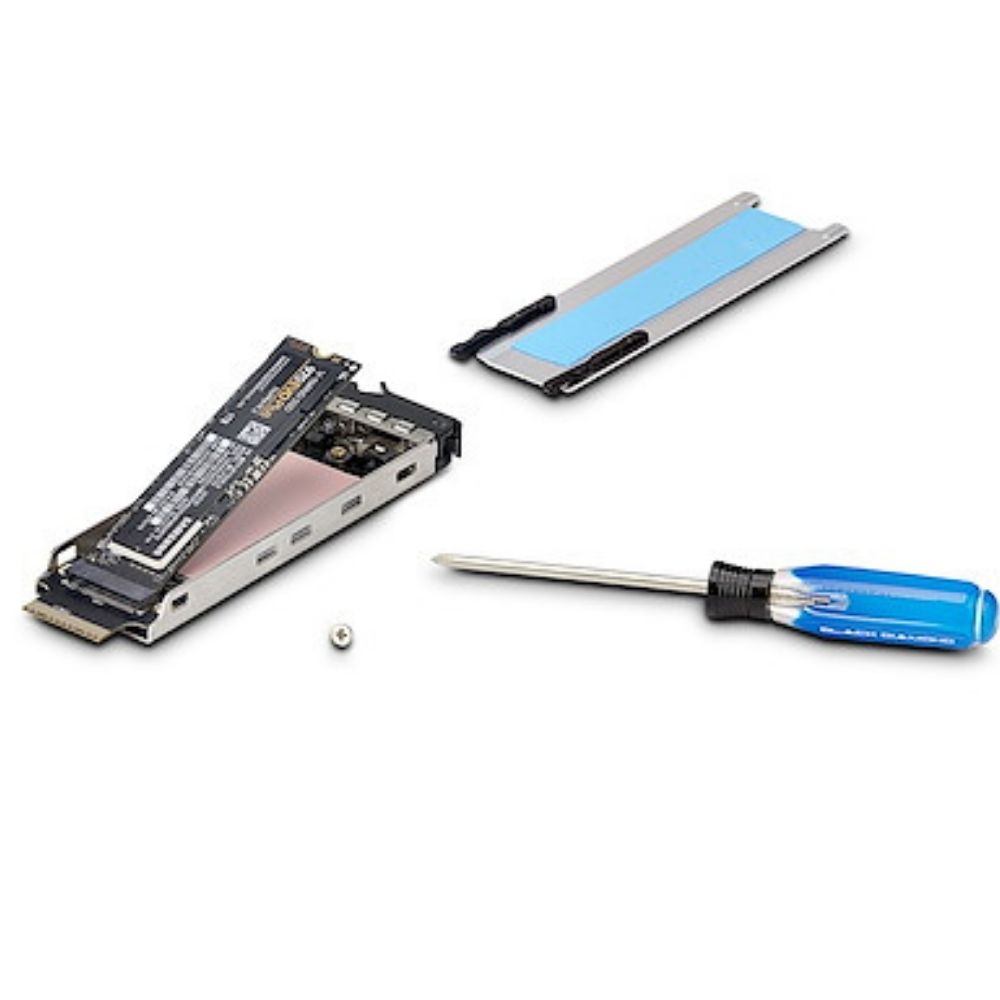

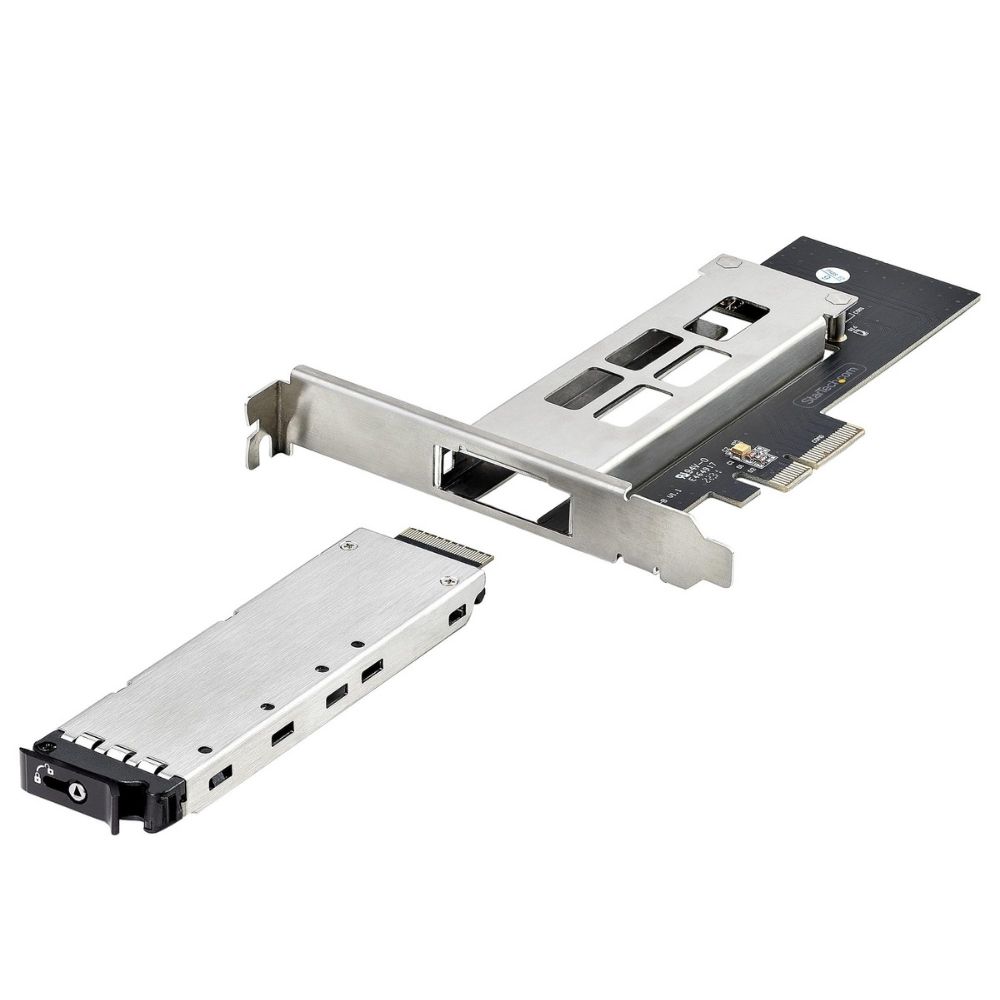

The adapter installs into a PCIe x4 (or higher) expansion slot and supports PCIe 4.0 bandwidth, enabling data transfer rates up to 64 Gb/s. It is designed for M-Key NVMe SSDs and supports multiple form factors including 2230, 2242, 2260, and 2280. The removable tray allows tool-less installation and replacement of drives, improving operational efficiency in environments where storage rotation or maintenance is frequent.

This device fits into workstation and server environments where internal M.2 slots are limited or inaccessible. It is commonly used in lab systems, high-performance desktops, and edge servers where NVMe drives need to be quickly swapped or securely managed.

From an integration perspective, the adapter works within standard PCIe infrastructures and does not require proprietary controllers. It includes a locking mechanism with keys to secure drives and prevent unauthorized removal, making it suitable for environments handling sensitive data. Thermal pads and a ventilated metal frame assist with heat dissipation, reducing thermal throttling during sustained workloads.

In real-world deployment, this adapter is used for high-speed storage interchange, OS imaging workflows, forensic analysis, and test environments where NVMe drives are frequently swapped. It is also used in systems requiring removable NVMe media without relying on external enclosures.

This device is not suitable for systems without available PCIe slots or environments requiring SATA-based M.2 support. Hot-swap functionality may also depend on motherboard and BIOS support rather than the adapter alone.

Typical Deployment Scenarios

• NVMe drive swapping in lab and test environments
• OS imaging and cloning workflows using removable SSDs
• Secure storage handling with lockable drive trays
• High-speed data transfer in workstation PCIe slots
• Edge systems requiring internal removable NVMe storage

Technical Specifications

Compatibility / Ecosystem

• Compatible with PCIe x4, x8, x16 expansion slots
• Supports NVMe M-Key SSDs only (no SATA M.2 support)
• Works with standard desktop and server motherboards
• Hot-swap support dependent on motherboard/BIOS
• Compatible with additional removable trays (optional accessory)
