Startech.com SAT2MSAT25 – 2.5″ SATA to mSATA SSD Adapter Enclosure
Key Features
- Converts mSATA SSD to 2.5-inch SATA drive
- Supports SATA III 6Gbps speed
- Plug-and-play installation
- Reusable drive enclosure design
- Ideal for data recovery and system upgrades
Please fill the form to get price quote.
Startech.com SAT2MSAT25 – 2.5″ SATA to mSATA SSD Adapter Enclosure
Overview

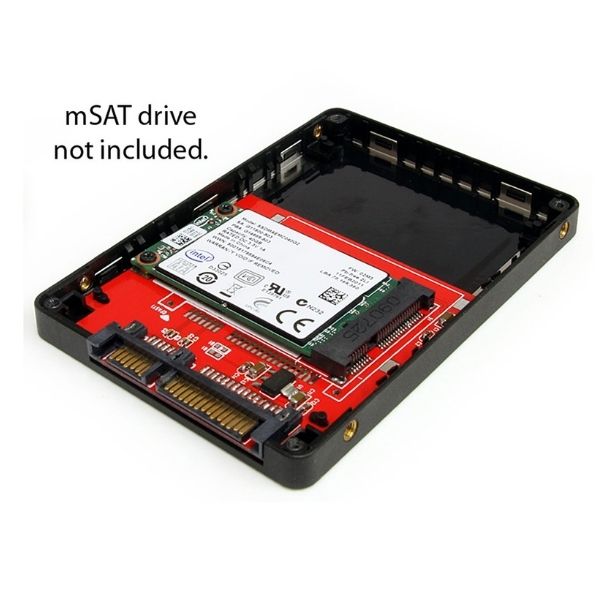

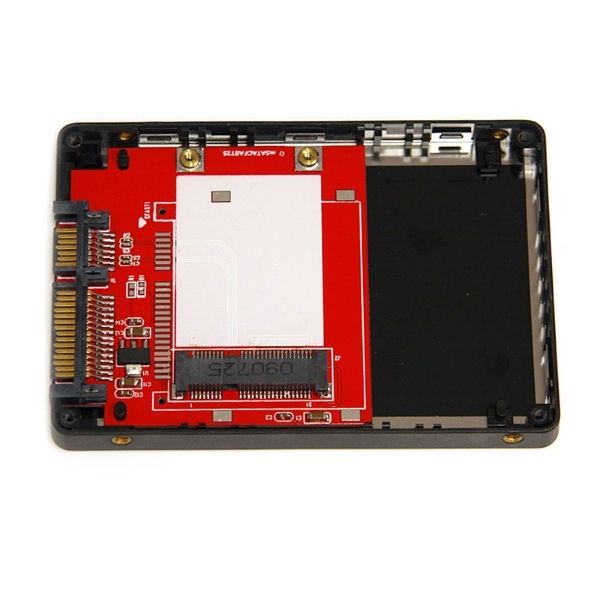

Startech.com SAT2MSAT25 is a storage adapter enclosure designed to convert an mSATA (Mini SATA) SSD into a standard 2.5-inch SATA drive. It allows older or compact mSATA SSDs to be used in systems that only support standard SATA interfaces.
It supports SATA III speeds up to 6Gbps and provides a pass-through design so the mSATA drive performs at its native speed without additional conversion overhead. The enclosure also provides physical protection and standard 2.5-inch mounting compatibility.
It is commonly used for system upgrades, data recovery, drive reuse, and IT servicing where mSATA drives need to be accessed through SATA-based systems.
Typical Deployment Scenarios
- Converting mSATA SSDs for desktop/laptop use
- Data recovery and backup from old mSATA drives
- IT repair and system maintenance tasks
- Reuse of legacy SSD storage hardware
Specifications
| Specification | Details |
|---|---|
| Brand | StarTech |
| Part Number | SAT2MSAT25 |
| Product Type | SSD Adapter Enclosure |
| Function | mSATA to SATA conversion |
| Supported Drive Type | mSATA SSD |
| Form Factor Output | 2.5-inch SATA |
| Interface | SATA III (6Gbps) |
| Power | SATA power from host system |
| Data Transfer | Up to 6Gbps |
| Material | Aluminum / plastic enclosure |
| Compatibility | Standard SATA systems |
| Installation | Plug-and-play |
| Usage | Drive conversion / recovery |
| Device Type | Storage adapter |
| Cooling | Passive |
Compatibility / Ecosystem
Compatible with systems supporting standard 2.5-inch SATA drives. Works with mSATA SSDs used in legacy laptops, ultrabooks, and embedded systems requiring conversion for modern SATA connectivity.
Additional information
| Weight | 0.050 kg |
|---|---|
| Dimensions | 9.8 × 6.8 × 1.0 cm |
