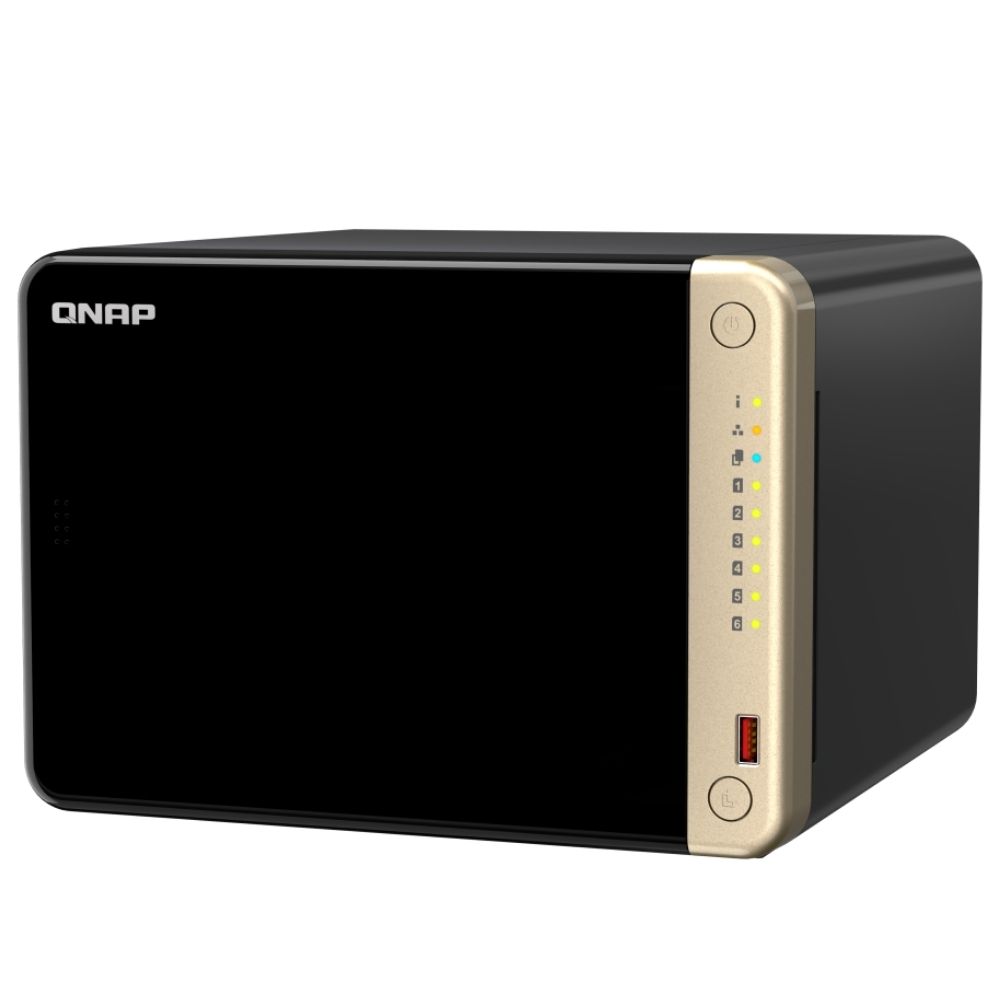

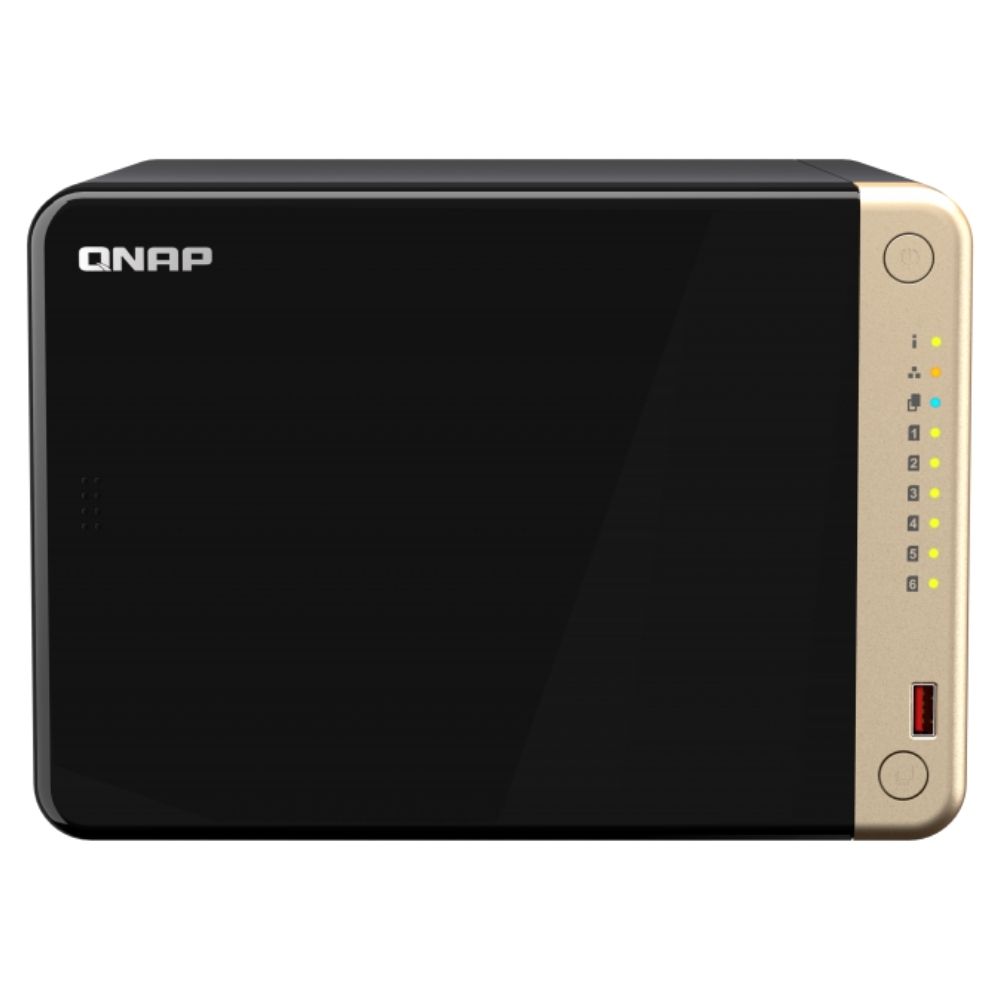

QNAP TS-664-8G-US 6-Bay SATA NAS Storage System
3,447.11 AED3,465.00 AED (-1%)
Key Features:
• Six SATA drive bays with RAID for data protection
• Dual 2.5GbE LAN with port trunking up to ~589 MB/s
• Dual M.2 PCIe Gen3 slots for SSD caching expansion
• Intel Celeron quad‑core with hardware video support
• PCIe slot for 10GbE/network or cache expansion
QNAP TS-664-8G-US 6-Bay SATA NAS Storage System
Overview:
The QNAP TS‑664‑8G‑US is a 6‑bay network attached storage (NAS) system designed for small business, office, and advanced home deployment where centralized data storage, file sharing, and multimedia workflows are required. It is deployed by IT administrators and professionals who need scalable storage, high‑speed network access, and flexible use cases including backup, virtualization, and media services.
Powered by an Intel Celeron N5095 quad‑core processor with integrated Intel UHD graphics, the unit enables multitasking, media transcoding, and file services across a range of protocols. It includes 8 GB of DDR4 memory as standard, with support for expansion up to 16 GB, allowing for additional caches and VM workloads when needed. The NAS runs QNAP’s QTS operating system for file management, data protection, and application services.
The system provides six SATA III 6 Gb/s drive bays supporting both 3.5‑inch HDDs and 2.5‑inch SSDs. Dual M.2 PCIe Gen3 slots are available for SSD caching or storage acceleration and can be expanded further with PCIe cards for additional M.2 drives or network enhancements. RAID levels including 0, 1, 5, 6, 10 and 50 are supported for fault tolerance and optimized performance.
Network connectivity includes two 2.5GbE LAN ports, which can be aggregated for up to ~589 MB/s throughput to speed up large file transfers and reduce network bottlenecks. A single PCIe slot allows future upgrades such as 10GbE or additional storage expansion. USB 3.2 Gen2 ports provide high‑speed external backups or data transfers.
Practical use cases include hosting centralized file shares for teams, robust backup storage, media streaming with hardware video conversion, and virtualization applications using QNAP Virtualization Station. The HDMI output enables direct multimedia playback or NAS‑local display access. This system is not intended to replace enterprise SAN infrastructures in large data centers but offers strong performance for SMB storage roles.
Typical Deployment Scenarios:
• Centralized file storage with RAID for small business
• Multimedia streaming and video file management
• Virtual machine hosting and container services
• High‑speed shared storage with 2.5GbE aggregation
• Backup target for desktops and servers
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | QNAP |
| Part Number | TS‑664‑8G‑US |
| Product Type | 6‑Bay Network Attached Storage |
| Processor | Intel Celeron N5095 quad‑core, up to 2.9 GHz |
| Memory | 8 GB DDR4 (Upgradeable to 16 GB) |
| Drive Bays | 6 × SATA III (3.5″/2.5″) |
| M.2 Slots | 2 × M.2 PCIe Gen3 x1 |
| RAID Support | 0, 1, 5, 6, 10, 50, JBOD |

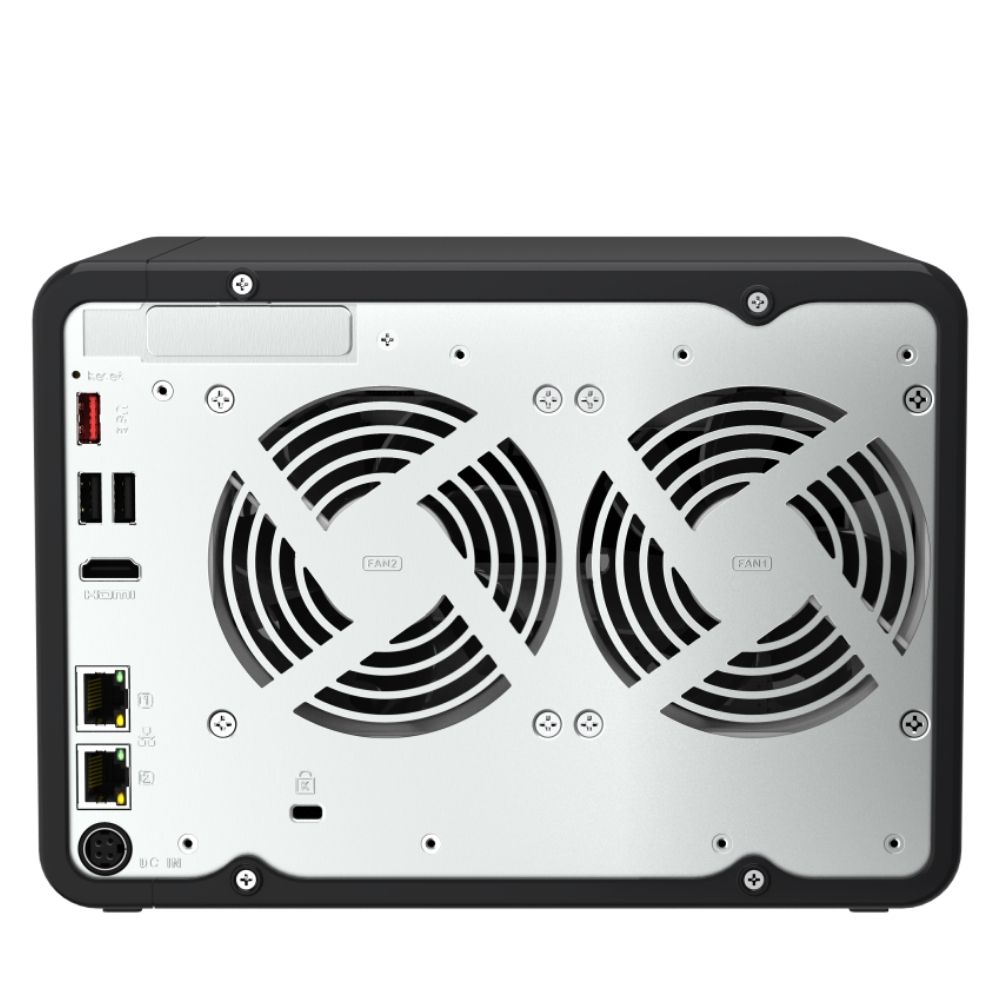

| LAN | 2 × 2.5GbE RJ45 |
| PCIe Expansion | 1 × PCIe Gen3 x2 |
| USB Ports | 2 × USB 3.2 Gen2; 2 × USB 2.0 |
| HDMI Output | 1 × HDMI 2.1 |
| Graphics | Intel UHD Graphics |
| AES Encryption | AES‑NI hardware acceleration |
| OS | QTS with optional QuTS hero |
| Max Drives | 6 internal + expansion units supported |
| Dimensions (H×W×D) | ~165 × 235 × 226.5 mm |
| Weight | ~2.94 kg |
| Power | 120 W adapter |
| Operating Temp | 0–40 °C |
Compatibility / Ecosystem:
Supports SATA HDDs and SSDs in 3.5″ and 2.5″ form factors
Native support for RAID and tiered storage with SSD cache
Integrates with QNAP QTS/QuTS hero for backup, virtualization, and surveillance
Compatible with SMB network protocols (SMB/CIFS, NFS, AFP)
Additional information
| Weight | 2.94 kg |
|---|---|
| Dimensions | 22.65 × 23.5 × 16.5 cm |
| Brand | QNAP |
