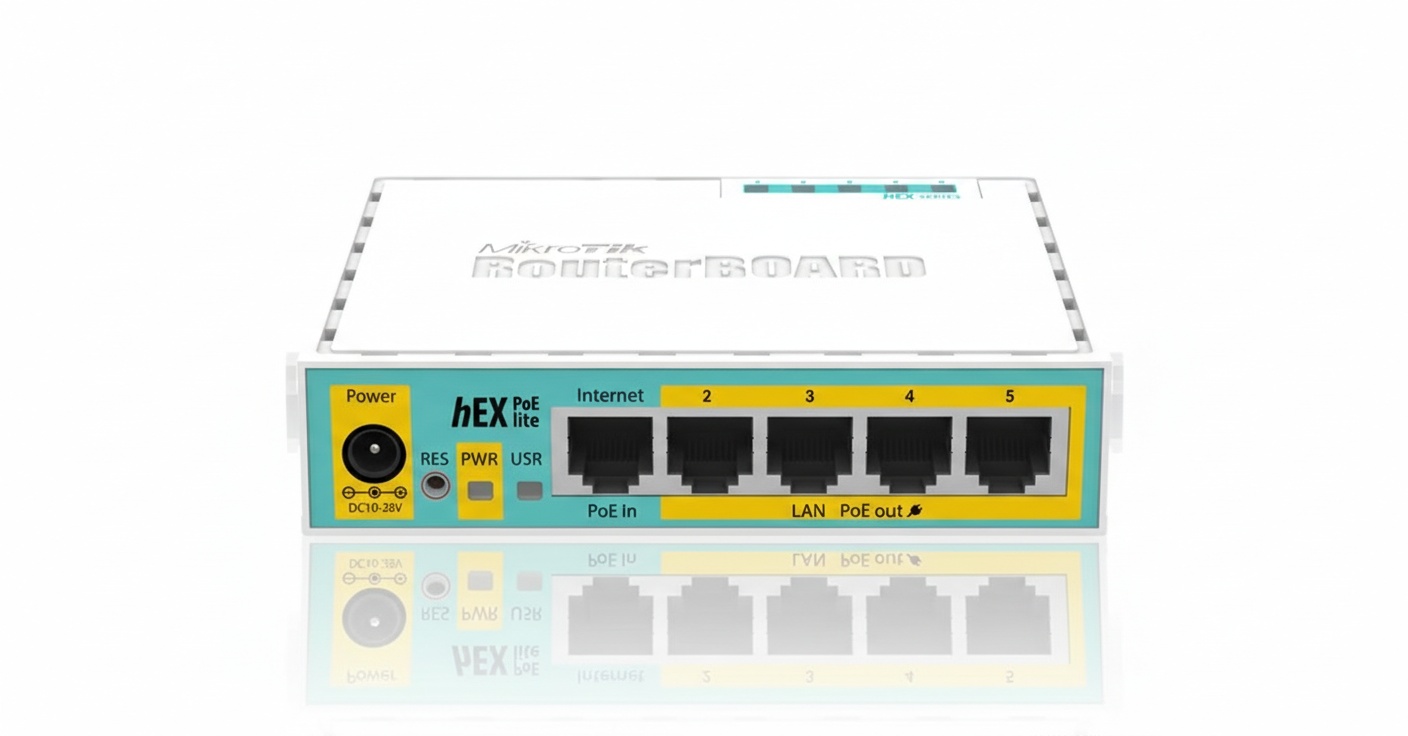

MikroTik RB750UPR2 5-Port Ethernet Router with PoE Output
Roll over image to zoom in
Key Features
Four Passive PoE output ports for powering devices.
Integrated USB 2.0 port for 3G/4G modem failover.
Compact, fanless design for silent desktop operation.
Advanced RouterOS L4 for professional traffic control.
Please fill the form to get price quote.
MikroTik RB750UPR2 5-Port Ethernet Router with PoE Output
Overview
The MikroTik RB750UPR2, commercially known as the hEX poe lite, is a compact five-port Fast Ethernet router designed for small-to-medium enterprise (SME) environments and remote branch offices. This device serves as a highly efficient solution for managing small wired networks where space and power management are primary concerns. Its core differentiator is the inclusion of Passive PoE output capabilities on ports two through five, alongside a versatile USB 2.0 port. From an infrastructure perspective, the RB750UPR2 is typically deployed at the network edge or within SOHO setups to consolidate power delivery.
By powering downstream devices such as wireless access points, IP cameras, or VoIP phones directly from the router, engineers can eliminate the clutter of multiple power adapters and midspan injectors. The unit is powered by a 650MHz CPU and 64MB of RAM, running the robust RouterOS (License Level 4). This allows for advanced networking configurations including firewalling, bandwidth shaping, and VPN tunneling. While optimized for 10/100 Mbps environments, its wide input voltage range (6-30V) makes it exceptionally adaptable for various DC power scenarios, including battery-backed or solar-powered deployments.
Specifications
| Brand | MikroTik |
| Part Number | RB750UPR2 |
| Product Type | Ethernet Router |
| CPU | QCA9531 650 MHz |
| RAM | 64 MB |
| Storage | 16 MB Flash |
| Ethernet Ports | 5x 10/100 Mbps |
| PoE Out | Passive PoE (Ports 2-5) |
| PoE In | Passive PoE (Port 1) |
| USB Port | 1x USB 2.0 Type A |
| Operating System | RouterOS License Level 4 |
| Input Voltage | 6 V – 30 V |
| Max Power Consumption | 3 W (without PoE out) |
| Dimensions | 113 x 89 x 28 mm |
| Operating Temperature | -40°C to +70°C |
Frequently Asked Questions
What is the maximum current output per PoE port?
The RB750UPR2 supports up to 1A per port if the input voltage is below 30V, with a total cumulative limit of 2A across all ports.
Does this router support 802.3af/at (PoE+) standards?
No, this model uses Passive PoE. The output voltage is identical to the input voltage provided to the router. Ensure your connected devices are compatible with the specific input voltage used.
Can the USB port be used for redundant internet connectivity?
Yes, the USB 2.0 port supports various 3G/4G modems, allowing you to configure a secondary WAN link for automatic failover in branch office deployments.
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 8.9 × 11.3 × 2.8 cm |
| Brand | Mikrotik |
