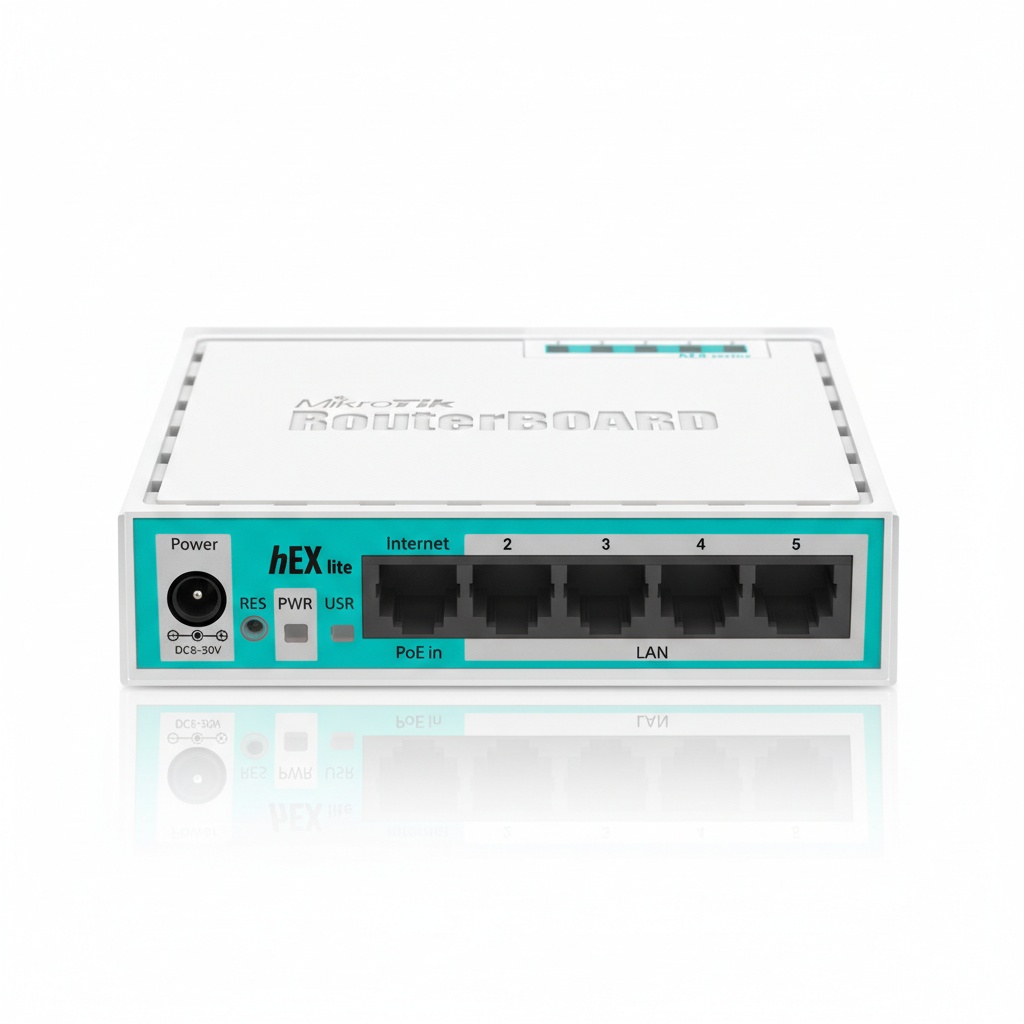

MikroTik RB750r2 5-Port Fast Ethernet SOHO Router
Roll over image to zoom in
Key Features
Five 10/100 Mbps RJ45 ports for local connectivity.
Powered by RouterOS Level 4 for advanced management.
Compact, fanless design for silent desktop operation.
Supports 6V to 30V input via DC jack or passive PoE.
Please fill the form to get price quote.
MikroTik RB750r2 5-Port Fast Ethernet SOHO Router
Overview
The MikroTik RB750r2, commercially known as the hEX lite, is a compact five-port Fast Ethernet router designed for small office and home office (SOHO) environments. As a senior engineer, I recognize this unit as a staple for deployments where physical space and budget are constrained, but professional-grade networking features are non-negotiable. Unlike standard consumer hardware, the RB750r2 runs the full-featured RouterOS, providing engineers with granular control over bandwidth management, firewalling, and user access. In a deployment context, the RB750r2 excels as an edge gateway for small branch offices or as a dedicated management node within a larger data center rack.
Its 850MHz CPU and 64MB of RAM are optimized for handling 10/100 Mbps traffic wire-speed while maintaining a remarkably low power envelope of just 2W. It is frequently utilized for MPLS switching, VPN termination, and as a cost-effective tool for network labs. The device is easily managed through MikroTik’s WinBox GUI, WebFig, or a comprehensive Command Line Interface (CLI), making it a versatile asset for any IT infrastructure toolkit.
Specifications
| Brand | MikroTik |
| Part Number | RB750r2 |
| Product Type | Wired Router |
| CPU | QCA9533 850 MHz |
| RAM | 64 MB |
| Storage | 16 MB Flash |
| Ethernet Ports | 5 x 10/100 Mbps |
| Operating System | RouterOS (License Level 4) |
| Max Power Consumption | 2 W |
| PoE In | Passive PoE (6-30 V) |
| Dimensions | 113 x 89 x 28 mm |
| Operating Temperature | -20°C to +70°C |
| Architecture | MIPSBE |
Frequently Asked Questions
Does the RB750r2 support Gigabit Ethernet speeds?
No, the RB750r2 (hEX lite) is equipped with five 10/100 Mbps Fast Ethernet ports. If your infrastructure requires Gigabit throughput, the RB750Gr3 (hEX) is the recommended alternative.
Can the RB750r2 be powered using a standard PoE switch?
The RB750r2 supports passive PoE input (6V – 30V) on port Ether1. It is not compatible with 802.3af/at active PoE standards unless a passive PoE converter is used.
What is the primary use case for the RouterOS Level 4 license included?
The Level 4 license allows the device to act as a wireless access point (if hardware is added), a bridge, or a powerful router with support for unlimited VLANs and up to 200 simultaneous PPPoE/L2TP/PPTP tunnels.
Additional information
| Weight | 0.13 kg |
|---|---|
| Dimensions | 8.9 × 11.3 × 2.8 cm |
| Brand | Mikrotik |
