MikroTik CRS304-4XG-IN – 4-Port 10G RJ45 Cloud Router Managed Ethernet Switch
Key Features
-
Four 10GbE RJ45 ports for high-speed copper connectivity.
-
Quad-input power redundancy including PoE-in and USB-C.
-
Fanless metal chassis for silent, reliable operation.
-
Powered by RouterOS v7 for advanced L3 routing features.
Please fill the form to get price quote.

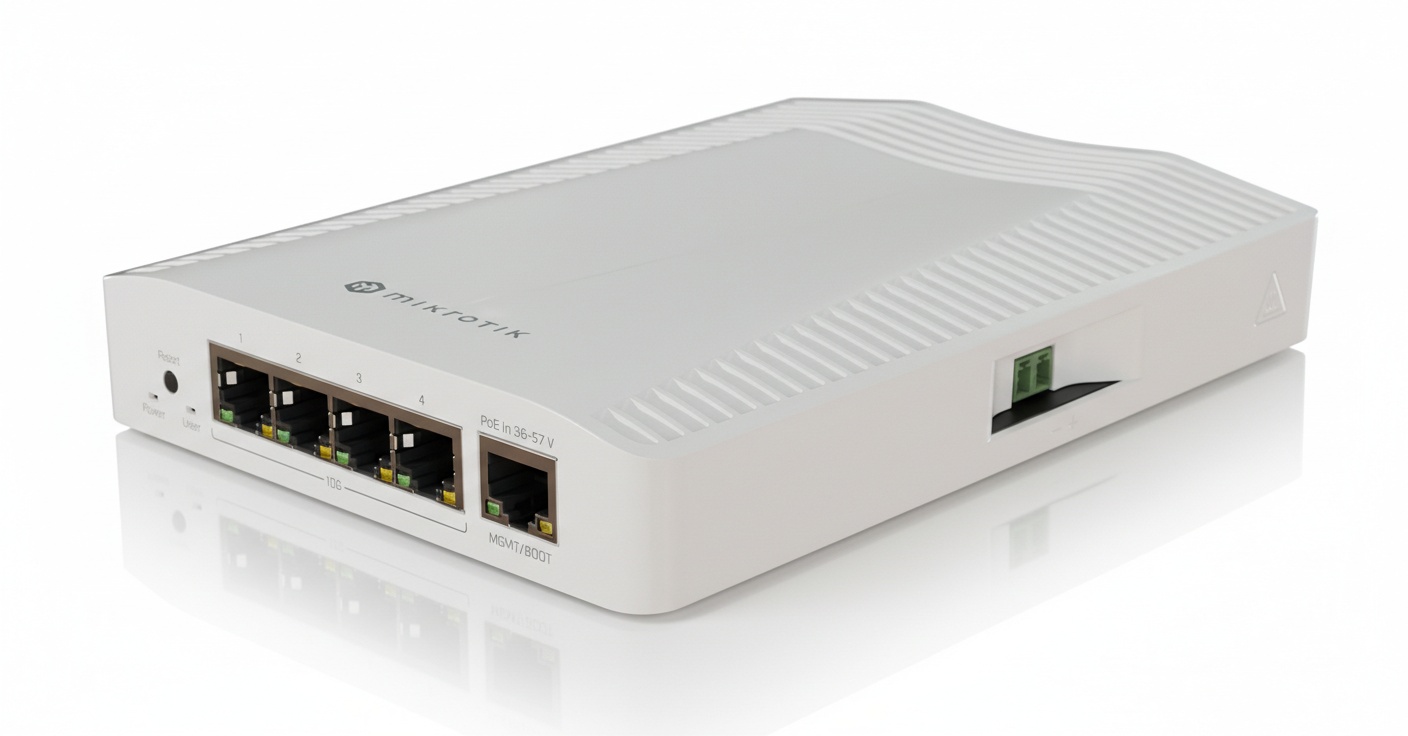

MikroTik CRS304-4XG-IN 4-Port 10G RJ45 Cloud Router Managed Ethernet Switch
Overview
The MikroTik CRS304-4XG-IN is a compact, high-performance switch designed to bridge the gap between small-scale deployments and high-bandwidth 10GbE requirements. Featuring four dedicated 10G RJ45 Ethernet ports, this device is engineered for environments where space is at a premium but throughput cannot be compromised. It serves as an ideal top-of-rack solution for small server clusters, a high-speed distribution point for creative studios, or a robust edge device for branch offices. At its core, the CRS304-4XG-IN utilizes a Marvell 98DX226S switch chip, enabling wire-speed performance across all ports without bottlenecking.
A standout feature is its power redundancy; the unit supports four distinct power inputs, including a DC jack, 2-pin terminal, PoE-in, and a USB-C port, ensuring high availability in critical setups. Running on RouterOS v7, it provides advanced Layer 3 routing capabilities alongside its primary Layer 2 switching functions. The fanless, rugged metal enclosure ensures silent operation, making it suitable for office environments while maintaining the durability required for industrial or data center applications. This switch simplifies the transition to 10GbE copper infrastructure without the complexity of SFP+ modules.
Specifications
| Brand | MikroTik |
| Part Number | CRS304-4XG-IN |
| Product Type | Cloud Router Managed Ethernet Switch |
| CPU | Marvell 98DX226S (800 MHz) |
| RAM | 512 MB |
| Storage | 16 MB Flash |
| 10G RJ45 Ports | 4 |
| 1G Ethernet Ports | 1 (Management/PoE-in) |
| Switching Capacity | 82 Gbps |
| Non-Blocking Throughput | 41 Gbps |
| Power Inputs | 4 (DC jack, 2-pin, PoE-in, USB-C) |
| Max Power Consumption | 12 W |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 167 x 143 x 44 mm |
Frequently Asked Questions
Does this switch support PoE output to power other devices?
No, the CRS304-4XG-IN supports PoE-in on its Gigabit Ethernet port for its own power, but it does not provide PoE-out to other connected devices.
Can this device be mounted in a standard 19-inch server rack?
Yes, the unit includes rackmount ears that allow it to be installed in a standard 19-inch rack, occupying 1U of vertical space.
Is the USB-C port used for data or only for power?
The USB-C port on the CRS304-4XG-IN is strictly for power input and does not support data transfer or console management functions.
Additional information
| Weight | 1.05 kg |
|---|---|
| Dimensions | 14.0 × 22.2 × 4.4 cm |
| Brand | Mikrotik |
