HPE R0Q74B – MSA 2060 16Gb Fibre Channel SFF Storage

HPE R0Q74B MSA 2060 16Gb Fibre Channel SFF Storage

Overview

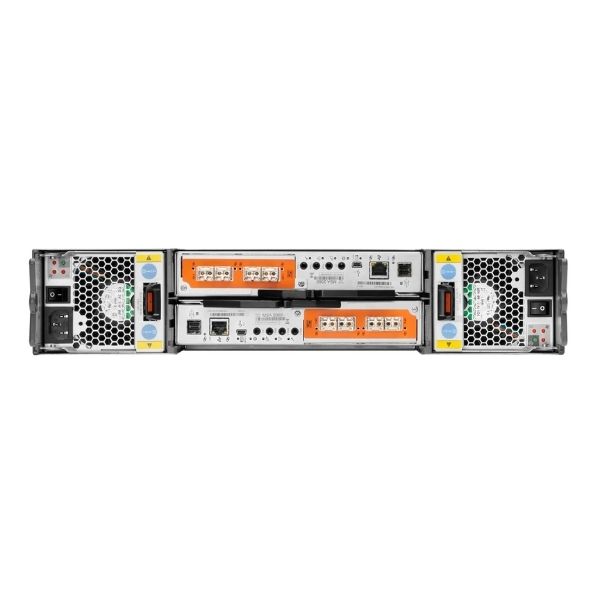

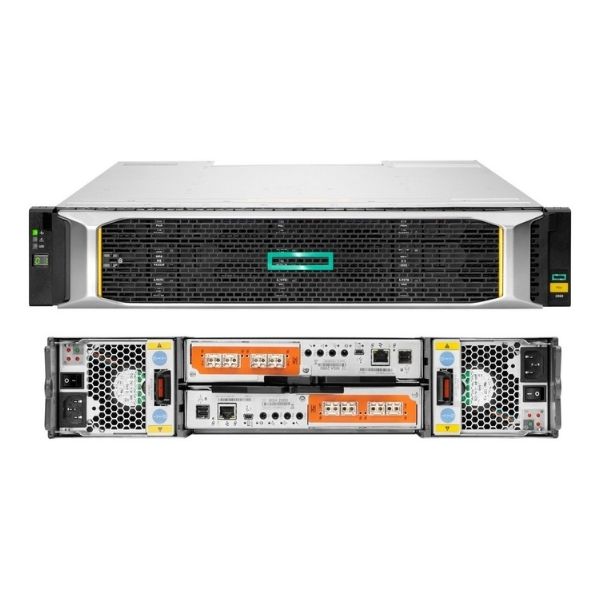

The HPE R0Q74B is a 2U rack-mountable storage array chassis designed for small-to-medium enterprise environments requiring high-speed block storage over 16Gb Fibre Channel fabrics. It features a dual-controller architecture that provides 8 total physical host ports to ensure high availability and load balancing for mission-critical application data. This Small Form Factor (SFF) enclosure houses up to 24 hot-plug 2.5-inch drives, supporting a versatile mix of high-performance SSDs for active workloads and high-capacity SAS HDDs for localized data retention.

The internal system is powered by an automated tiering engine that optimizes data placement in real-time based on active access frequencies. By migrating frequently used data blocks to flash media and moving archival data to lower-cost rotational drives, the array maintains consistent sub-millisecond response times without manual administrative tuning. The hardware includes integrated support for up to 512 virtual snapshots and asynchronous remote replication, providing a robust localized defense against logical data corruption and facility-wide hardware failures.

This storage unit functions as the core hardware layer for high-density SAN environments, delivering up to 395,000 IOPS to satisfy the requirements of intensive database operations and virtualized server clusters. It is engineered with a modular backplane that allows for seamless capacity expansion through the addition of up to nine drive enclosures, scaling the physical footprint as data volumes grow. The chassis manages all internal storage logic independently of the host servers, ensuring that heavy input-output operations do not consume CPU cycles from the connected application nodes.

IT infrastructure teams deploy this Fibre Channel storage array to consolidate fragmented server storage into a centralized, high-speed resource pool that is easy to manage via a web-based interface. The unit is equipped with redundant, hot-plug 80 PLUS Platinum power supplies and dual cooling fans to prevent hardware-level downtime in 24/7 production environments. Its straightforward deployment path allows administrators to provision high-volume logical units quickly, making it a reliable solution for scaling enterprise-grade storage capacity with minimal operational overhead.

Typical Deployment Scenarios

This 16Gb Fibre Channel storage array is deployed in centralized corporate data centers, high-performance virtualization clusters, and secure offsite disaster recovery facilities. It is utilized by systems architects to host large-scale SQL databases, provide shared storage for VMware or Hyper-V environments, and establish high-speed block-level backup targets.

Specifications

Compatibility / Ecosystem

The R0Q74B is compatible with all standard 16Gb and 8Gb Fibre Channel switches, host bus adapters, and multi-mode fiber cabling infrastructure. It provides full operating system validation for Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux, and VMware ESXi platforms, integrating seamlessly into existing enterprise SAN fabrics.
