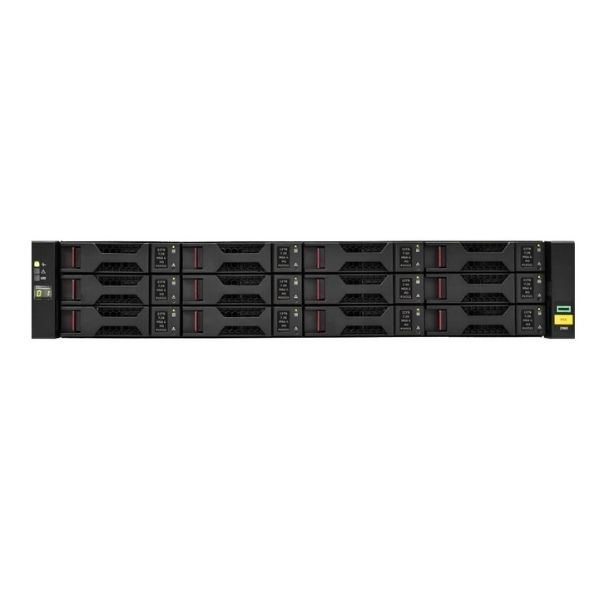

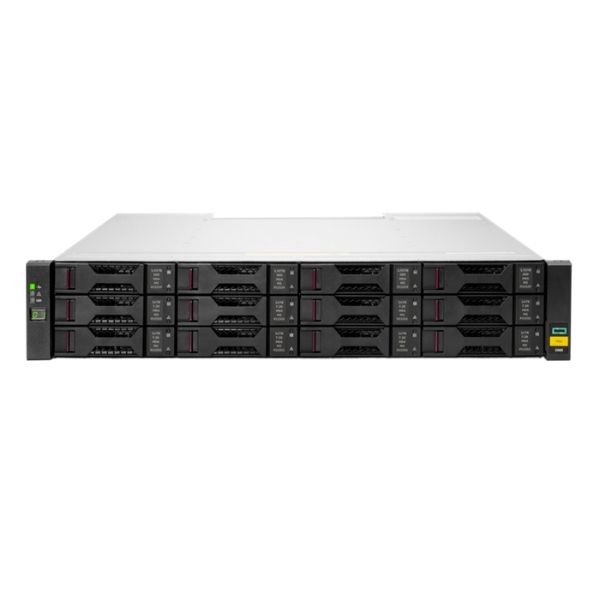

HPE R0Q73B MSA 2060 16Gb FC Storage
Key Features
- Dual active-active FC controllers
- 8-port 16Gb Fibre Channel connectivity
- 12-bay large form factor chassis
- Hybrid SAS HDD and SSD support
Please fill the form to get price quote.
HPE R0Q73B MSA 2060 16Gb FC Storage
Overview
The HPE R0Q73B MSA 2060 is a dual-controller Fibre Channel SAN storage array built for small and mid-sized enterprises requiring centralized shared storage for virtualization, database, and application workloads. It provides higher host connectivity bandwidth and improved scalability compared to earlier MSA generations while maintaining simplified deployment and administration.
The platform uses dual active-active storage controllers with 16Gb Fibre Channel connectivity and supports hybrid or flash storage configurations using SAS HDDs and SSDs. Automated tiering, snapshot services, and remote replication capabilities support mixed enterprise workloads requiring balanced performance and data protection.
Its 2U large form factor chassis is suited for branch offices, departmental infrastructure, remote enterprise sites, and mid-sized data centers where rack density and storage scalability are operational requirements. The architecture supports expansion enclosures for future capacity growth without replacing the existing storage platform.
The system integrates with HPE ProLiant server environments and supports common enterprise operating systems and hypervisors including VMware vSphere, Microsoft Windows Server, and Linux-based deployments.
Typical Deployment Scenarios
- VMware and Hyper-V virtualization storage
- Fibre Channel SAN infrastructure deployments
- Departmental database storage environments
- Backup and disaster recovery repositories
- Hybrid flash storage deployments
- Mid-sized enterprise application hosting
Technical Specifications
| Specification | Details |
|---|---|
| Brand | HPE |
| Part Number | R0Q73B |
| Product Type | SAN Storage System |
| Product Series | MSA 2060 |
| Controller Configuration | Dual Controller |
| Storage Controller | 2 x 16Gb FC Controllers |
| Host Interface | 16Gb Fibre Channel |
| FC Ports | 8 Total FC Ports |
| Form Factor | 2U Rack-Mount |
| Drive Bays | 12 x 3.5-inch LFF |
| Supported Drive Types | SAS HDD and SSD |
| Maximum Expansion Enclosures | 9 |
| Maximum Raw Capacity | Up to 7.37PB |
| Snapshot Support | Virtualized Snapshots |
| Replication Support | Remote Replication |
| Dimensions (H x W x D) | 3.5 x 17.6 x 20 in |
| Power Supply | Dual Redundant Hot-Plug PSU |
Compatibility / Ecosystem
The HPE R0Q73B integrates with HPE ProLiant server infrastructure and enterprise Fibre Channel SAN environments. It supports VMware vSphere, Microsoft Hyper-V, Windows Server, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server deployments. The platform is compatible with HPE MSA expansion enclosures and supports hybrid storage configurations using enterprise SAS HDD and SSD media.
Additional information
| Weight | 5.0 kg |
|---|---|
| Dimensions | 50.8 × 44.5 × 8.9 cm |
