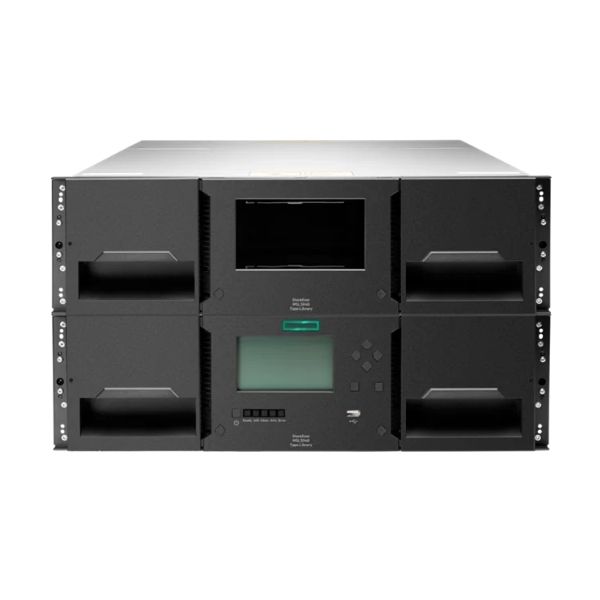

HPE Q6Q62B – StoreEver MSL3040 Scalable Tape Library Base Module

HPE Q6Q62B StoreEver MSL3040 Scalable Tape Library Base Module

Overview

The HPE Q6Q62B is a 3U modular tape library base enclosure engineered for enterprise data hubs demanding high-density cold storage, continuous system archiving, and structured disaster recovery layouts. It features 40 native physical media cartridge slots and holds up to three internal half-height tape drive kits to automate structural database retention workloads. By isolating deep-archive datasets onto physical magnetic tape, this chassis provides a reliable physical air-gap that defends corporate assets against network-propagated ransomware attacks. The architecture connects into enterprise networks using modular SAS or high-speed optical Fibre Channel controller interface options depending on active storage tier configurations.

The storage mechanism utilizes an automated internal robotic assembly that systematically maneuvers cartridges between active slot segments and target drive bays without manual administrator interaction. It functions as an expandable hardware shell, allowing operational infrastructure groups to stack optional 3U expansion shelves directly above or below this core unit to scale media footprint availability. The enclosure integrates a factory barcode scanner that maps stored media cartridges during initialization to maintain real-time tracking coordination with backend storage catalogs. This configuration accelerates target search indexes, allowing the internal robotics to select and pull requested tape volumes cleanly during massive recovery actions.

System administration is managed remotely via the integrated web-accessible HPE StoreEver MSL Command View application interface over a local browser link. This application suite offloads manual floor operations by sending proactive automated alert signals regarding drive tracking tolerances, cartridge status metrics, and structural power parameters. Security encryption tasks are processed directly at the physical media layer, leveraging a self-contained, hardware-based AES 256-bit encryption platform to secure data without causing performance blockages. This architectural layout ensures that all outward-bound media cartridges comply with strict corporate audit mandates before transport to offsite physical vaults.

Storage engineers deploy this scalable core frame to resolve variable data growth demands while preserving strict hardware investment horizons over time. The 3U structural chassis mounts inside standard four-post computer equipment racks, saving valuable floor space by maximizing the data volume ratio per vertical rack unit. It permits the hot-add installation of drives and expansions, enabling on-site technicians to upscale aggregate input-output bandwidth without taking existing production queues offline. This operational path allows procurement groups to start with a minimal physical footprint and scale storage investments in step with corporate backup volume growth.

Typical Deployment Scenarios

This scalable tape library base module is deployed in enterprise data hubs, financial regulatory compliance vaults, and secondary offsite disaster recovery centers. It is utilized by infrastructure architects to consolidate disjointed disk backups onto automated tape pools, manage large uncompressed raw asset libraries, and establish permanent multi-decade archiving platforms.

Specifications

Compatibility / Ecosystem

The Q6Q62B base module provides direct integration with HPE ProLiant and Apollo server arrays running Windows Server, Red Hat Enterprise Linux, and VMware ESXi environments. It supports mixed LTO media portfolios through automated configuration and accepts standard half-height drive kits salvaged from legacy MSL 1/8 autoloaders or MSL2024 frames
