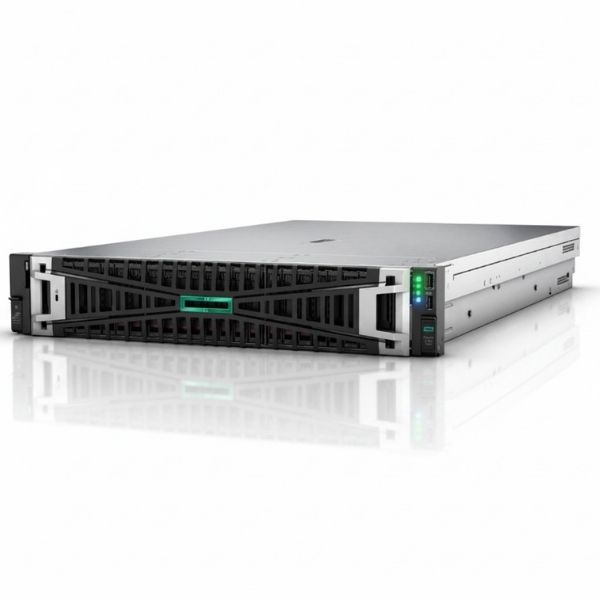

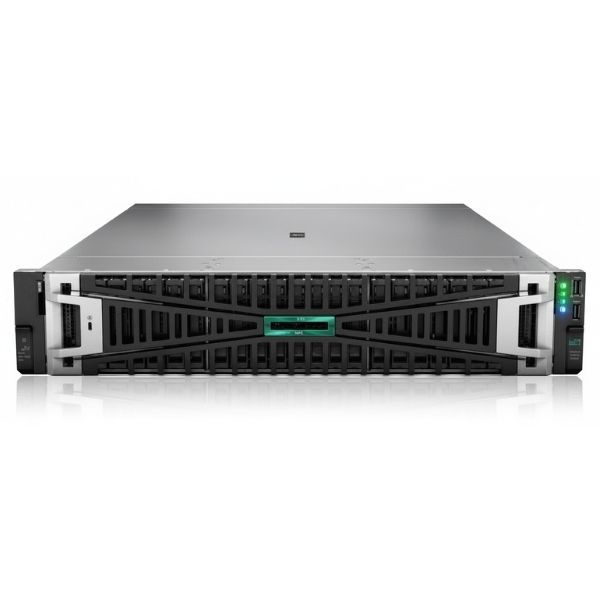

HPE P77170-425 – ProLiant DL380 Gen10 Plus 2U Rack Server

HPE P77170-425 – ProLiant DL380 Gen10 Plus 2U Rack Server

Overview

The HPE P77170-425 is a ProLiant DL380 Gen10 Plus enterprise rack server designed for virtualization, database workloads, and general-purpose data center compute. It is deployed in enterprise environments where balanced CPU performance, scalable memory, and flexible storage expansion are required within a 2U rack architecture.

The system is based on a single Intel Xeon Silver 4309Y processor with 8 cores, designed for entry-level to mid-range enterprise workloads. It supports DDR4 ECC registered memory, typically configured at 64GB in this SKU, providing sufficient capacity for virtualization hosts and business application servers.

The storage subsystem includes an 8 × 2.5-inch SFF hot-plug drive bay configuration, supporting SAS and SATA SSD/HDD devices. The platform uses an enterprise RAID controller (HPE SR416i-a Gen10 Plus class) enabling redundancy and performance optimization for mixed workloads including VM storage and database volumes.

For expansion, the server supports PCIe (Gen4/Gen3 depending on configuration) slots for network adapters, storage controllers, and acceleration cards. It is designed for integration into standard enterprise rack infrastructures with redundant power supplies and high-availability components.

In deployment, this system is commonly used in VMware or Hyper-V virtualization clusters, mid-sized databases, ERP systems, and private cloud environments. The 2U form factor provides a balance between compute density and internal expansion capability.

A typical deployment scenario includes clustered virtualization nodes connected to shared SAN/NAS storage, supporting multiple virtual machines with redundancy and centralized management.

This server is not intended for edge or SMB office workloads due to its enterprise rack design, power requirements, and data center orientation.

Typical Deployment Scenarios

• Enterprise virtualization clusters (VMware / Hyper-V)
• Mid-range database and ERP systems
• Private cloud infrastructure nodes
• Software-defined storage compute nodes
• General-purpose 2U rack server deployments

Technical Specifications

Compatibility / Ecosystem

The HPE P77170-425 integrates into enterprise Gen10 Plus ecosystems supporting VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise, and Ubuntu Server. It supports SAS/SATA storage backplanes and enterprise RAID controllers, along with PCIe expansion for networking and storage acceleration. Management is handled via HPE iLO 5 for remote provisioning and lifecycle control.
