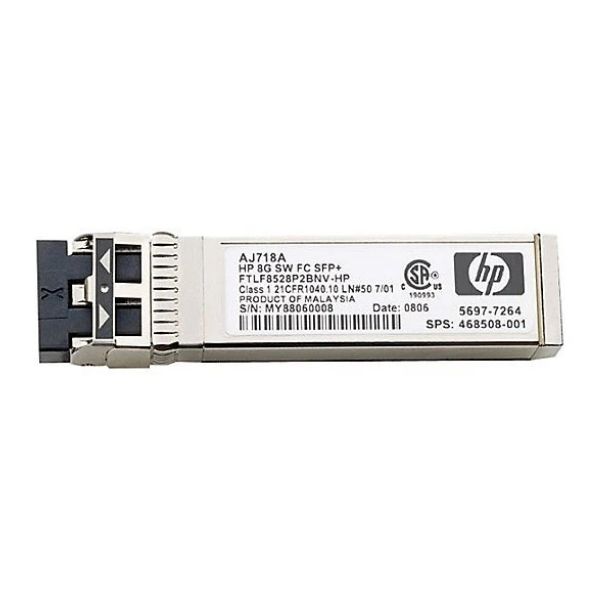

HPE AJ718A – 8Gb Short Wave Fibre Channel SFP+ Transceiver

HPE AJ718A – 8Gb Short Wave Fibre Channel SFP+ Transceiver

Overview

The HPE AJ718A is a short-wave SFP+ optical transceiver module engineered for high-performance enterprise Storage Area Networks requiring reliable, low-latency data transmission. It operates over multi-mode fiber infrastructure to establish fast block-level data paths between host bus adapters and central storage arrays. This hot-swappable module inserts directly into standard small form-factor pluggable cages without requiring an infrastructure system shutdown. Managed via standard platform interfaces, it provides integrated digital optical monitoring capabilities to report real-time physical operating statistics.

The transceiver mechanics utilize an advanced 850nm Vertical-Cavity Surface-Emitting Laser optical engine to maintain steady light transmission profiles across continuous duty cycles. It functions as a precise hardware translator, converting internal system electronic busses into high-frequency optical signals over dual LC physical interfaces. The internal layout includes optimized matching circuitry that limits electronic noise and jitter, preserving signal integrity across extended storage blocks transfers. This physical design ensures low bit-error rates even under high thermal loads inside dense core network routing cages.

The internal microcode architecture supports multi-rate operations, allowing the module to drop down or scale up matching speeds dynamically based on connected terminal port configurations. It manages electrical ingestion cleanly through a single 3.3V power rails layout, keeping total power draw below 1 Watt per deployed port interface. By processing diagnostic indicators internally via an automated two-wire management interface, the module provides structural readouts without drawing processing resources from the core host server hardware. This standalone processing setup prevents operational overhead from impacting active production transport windows.

Storage infrastructure teams deploy this optical transceiver to eliminate data path congestion between core aggregation switches and high-speed enterprise storage structures. The compact SFP+ form factor maximizes line card density, allowing maximum port population arrays inside limited 1U or 2U storage distribution rack frames. It features a robust physical extraction bail mechanism that simplifies field replacement and speeds up physical facility reconfiguration procedures. This enables operational maintenance personnel to alter fiber patch distribution profiles cleanly with zero disruption to surrounding active network nodes.

Typical Deployment Scenarios

This Short Wave SFP+ transceiver is deployed in enterprise storage area networks, corporate backup server arrays, and primary virtualization hosting nodes. It is utilized by infrastructure engineers to establish high-speed optical links inside fiber routing switches, connect host bus adapters to disk arrays, and patch short-range intra-rack storage connections.

Specifications

Compatibility / Ecosystem

The AJ718A module provides native validation with HPE Storage H-series Host Bus Adapters, StoreFabric directors, and enterprise SAN storage systems. It maintains backward rate compatibility with legacy 4Gb and 2Gb Fibre Channel infrastructures, ensuring seamless insertion into mixed-generation optical distribution networks.
