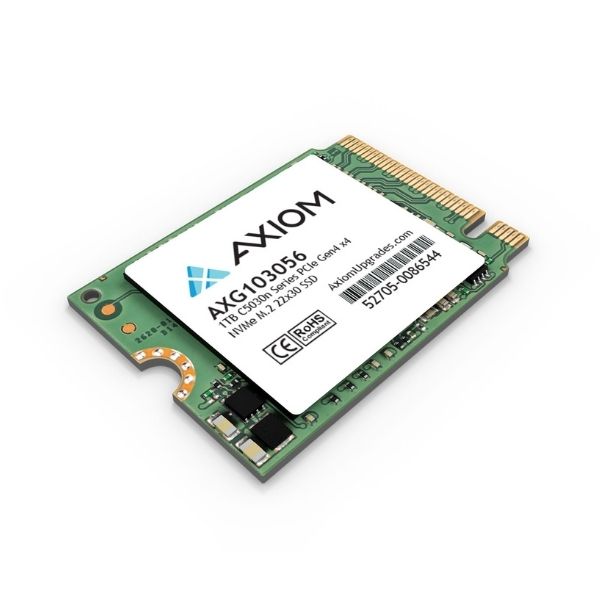

Axiom SSDMAP1630NS1TB-AX – C5030N Series 1TB NVMe M.2 SSD
Roll over image to zoom in
1,994.56 AED2,099.99 AED (-5%)
Axiom SSDMAP1630NS1TB-AX – C5030N Series 1TB NVMe M.2 SSD
Overview
The Axiom SSDMAP1630NS1TB-AX is a compact high-performance internal solid-state drive designed for systems requiring fast NVMe storage in a space-constrained M.2 2230 form factor. It uses a PCIe Gen4 x4 interface with NVMe protocol support to deliver high sequential read speeds for operating systems, application loading, and data-intensive tasks. The drive is optimized for low power consumption and thermal efficiency, making it suitable for laptops, compact desktops, and embedded platforms where both performance and efficiency are required. It is commonly used in enterprise and OEM environments as a high-speed upgrade or replacement storage solution.
Typical Deployment Scenarios
- Laptop internal storage upgrades
- Compact workstation and OEM systems
- High-speed OS boot drive deployments
- Embedded and edge computing devices
- Gaming console storage expansion
- Lightweight enterprise storage acceleration
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Axiom |
| Part Number | SSDMAP1630NS1TB-AX |
| Product Type | Internal SSD |
| Product Family | C5030N Series |
| Storage Capacity | 1 TB |
| Form Factor | M.2 2230 (22 × 30 mm) |
| Interface | PCIe Gen4 x4 NVMe |
| NVMe Protocol | NVMe 2.0 |
| NAND Type | 3D NAND |
| Maximum Sequential Read | Up to 5000 MB/s |
| Maximum Sequential Write | Up to 3700 MB/s |
| Random Read | Up to 550K IOPS |
| Random Write | Up to 600K IOPS |
| Power Consumption | Up to 4.75 W (active) |
| Operating Temperature | 0°C to 70°C |
| Endurance | 450 TBW |
| MTBF | 1.5 million hours |
| Features | SLC caching, LDPC ECC, SMART monitoring |
Compatibility / Ecosystem
- Laptops supporting M.2 2230 NVMe Gen4 slots
- Compact desktop and OEM workstation systems
- Embedded and edge computing platforms
- Gaming console storage expansion systems
- Windows and Linux operating systems
- Virtualized and enterprise storage environments
- Performance-sensitive boot and cache configurations
Additional information
| Weight | 0.0068 kg |
|---|---|
| Dimensions | 3.0 × 2.2 cm |
