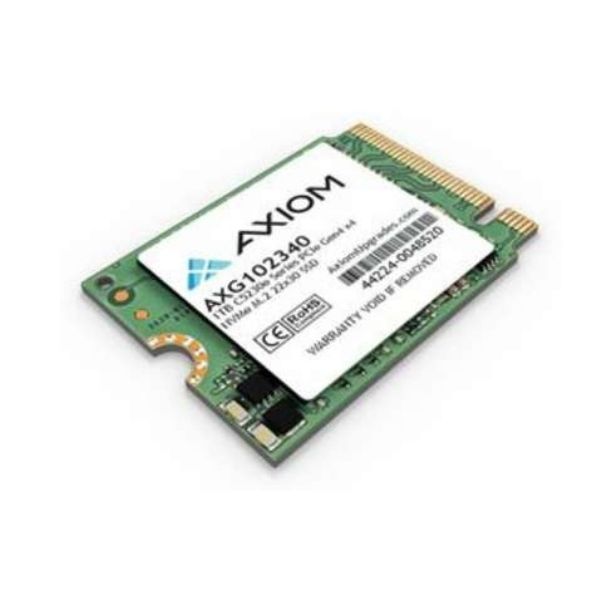

Axiom AXG102340 – C5230e 1TB PCIe Gen4 NVMe M.2 SSD
Overview
The Axiom AXG102340 is a 1TB M.2 NVMe solid-state drive from the C5230e series designed for compact, high-performance storage applications in enterprise and embedded systems. It uses a PCIe Gen4 x4 interface with NVMe 1.4 protocol and 3D NAND flash to deliver high-speed data transfer and efficient storage performance in space-constrained platforms. The drive is built in an ultra-compact 22×30 mm M.2 form factor, making it suitable for small form factor PCs, industrial systems, and OEM-integrated devices. It also supports hardware-based encryption for secure data handling in enterprise environments.
Typical Deployment Scenarios
- Compact enterprise and embedded systems
- Small form factor workstation storage
- OEM and industrial computing platforms
- Secure endpoint and encrypted storage deployments
- High-speed boot drives for specialized devices
- Space-constrained IT infrastructure systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Axiom |
| Part Number | AXG102340 |
| Product Type | Internal NVMe SSD |
| Series | C5230e |
| Storage Capacity | 1 TB |
| Form Factor | M.2 2230 (22 × 30 mm) |
| Interface | PCIe Gen4 x4 NVMe 1.4 |
| NAND Type | 3D NAND |
| Sequential Read Speed | Up to ~5,000 MB/s class |
| Sequential Write Speed | Up to ~4,000 MB/s class |
| Random Read Performance | Up to ~195,000 IOPS |
| Random Write Performance | Up to ~289,000 IOPS |
| Encryption | 256-bit AES / OPAL 2.0 support |
| Endurance | Up to 500 TBW |
| Power Consumption | ~4.75 W active (max class) |
| Operating Temperature | 0°C to 70°C |
| MTBF | ~1.7 million hours class |
Compatibility / Ecosystem
- PCIe Gen4 NVMe compatible systems
- M.2 2230 slot-based laptops and embedded boards
- Windows 10 / Windows 11 environments
- Linux enterprise and embedded distributions
- OEM industrial computing platforms
- Secure boot and encrypted storage deployments
Additional information
| Weight | 0.0068 kg |
|---|---|
| Dimensions | 3.0 × 2.2 × 0.23 cm |
