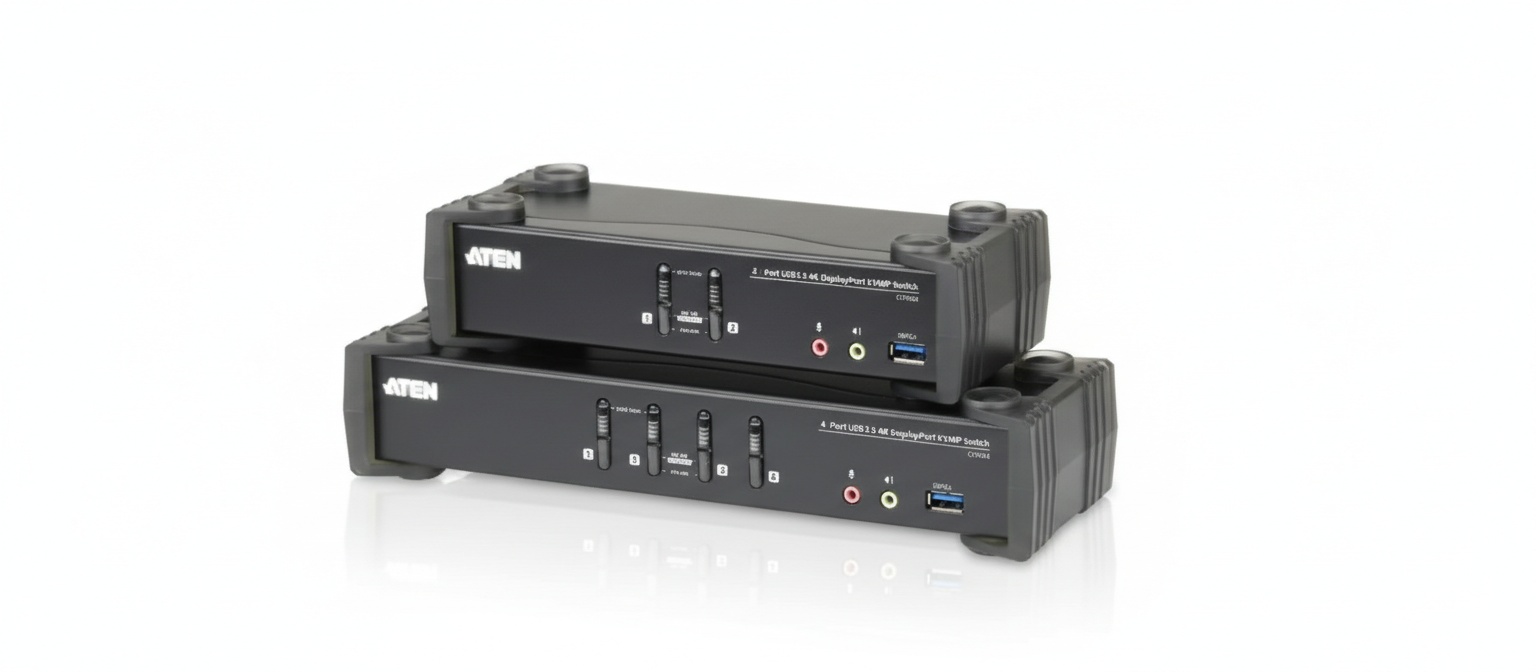

ATEN CS1924 4-Port 4K DisplayPort USB 3.0 KVMP Switch

  • Brand: ATEN
  • SKU: CS1924
CS1924
Roll over image to zoom in
Click to open expanded view

3,664.36 AED4,725.00 AED (-22%)

In stock

Key Features

- Supports 4K DCI resolutions up to 4096 x 2160 @ 60Hz.
- Integrated 2-port USB 3.1 Gen 1 hub with 5 Gbps speeds.
- Multi-Stream Transport (MST) for multi-monitor setups.
- Independent switching of KVM, USB, and audio focus.

SKU: CS1924 Category: Tags: , , , , , Brand:

ATEN CS1924 4-Port 4K DisplayPort USB 3.0 KVMP Switch in Dubai

Overview :

The ATEN CS1924 is a professional-grade 4-port KVMP switch engineered for environments requiring high-resolution video and high-speed data throughput. Designed for power users in media post-production, CAD/CAM engineering, and financial trading floors, the CS1924 facilitates the management of four DisplayPort-equipped computers from a single console. It distinguishes itself by integrating a 2-port USB 3.1 Gen 1 hub, delivering data transfer rates up to 5 Gbps, which is essential for sharing high-speed peripherals like external storage or card readers across multiple workstations.

This switch supports 4K DCI resolutions (4096 x 2160 @ 60Hz), ensuring precision for detail-oriented tasks. A critical feature for modern multi-display workflows is its support for Multi-Stream Transport (MST), allowing users to daisy-chain multiple monitors through a single DisplayPort connection. Deployment is seamless in both desktop and server room contexts, offering flexible switching via front-panel pushbuttons, keyboard hotkeys, or a USB mouse. The CS1924 also features independent switching capabilities, enabling the operator to maintain audio or USB peripheral focus on one computer while switching the KVM focus to another, maximizing operational efficiency in complex multitasking scenarios.

Specifications :

Brand ATEN
Part Number CS1924
Product Type KVMP Switch
Computer Connections 4
Port Selection Pushbutton, Hotkey, Mouse
Video Resolution 4096 x 2160 @ 60Hz
Video Interface DisplayPort 1.2
USB Hub 2 x USB 3.1 Gen 1 Type A (5 Gbps)
Audio Ports 3.5mm Jack (2.1 Surround Sound)
Power Consumption DC 5V, 3.48W
Operating Temperature 0°C to 50°C
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
Weight 0.91 kg

Additional information

Weight 0.91 kg
Dimensions 27.00 × 8.80 × 5.55 cm
