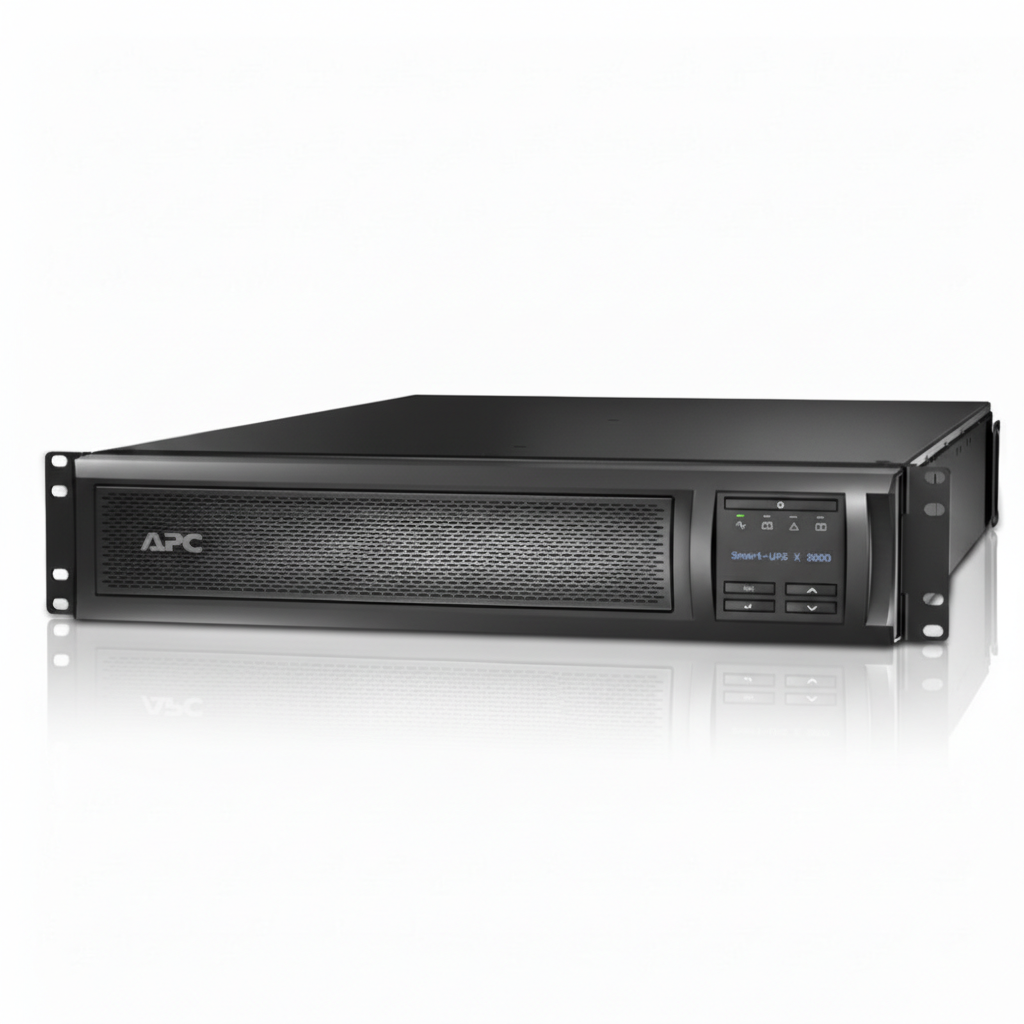

APC SMX3000RMHV2U – Smart-UPS X 3000VA Rack/Tower 230V
Roll over image to zoom in
16,684.50 AED
3kVA Rack/Tower UPS with Scalable Runtime
APC SMX3000RMHV2U – Smart-UPS X 3000VA Rack/Tower 230V
Overview :
The APC SMX3000RMHV2U is a high-density, line-interactive UPS designed to protect critical servers, voice/data networks, and edge computing installations. Delivering 3000VA/2700W of power in a flexible 2U rack/tower convertible form factor, this unit is engineered for environments requiring high-voltage (230V) support and high power density. As part of the Smart-UPS X family, it is specifically optimized for applications where uptime is paramount, offering pure sine wave output to ensure compatibility with sensitive active PFC power supplies and electronic hardware.
A primary differentiator for this model is its scalable runtime capability. IT administrators can add multiple external battery packs to sustain operations through prolonged outages, a feature often required in remote branch offices or distributed IT sites. The unit features an integrated LCD interface for real-time status updates and a “Green Mode” that bypasses unused electrical components to achieve 98% operating efficiency without sacrificing protection. With a switched outlet group for remote rebooting of hung equipment and a SmartSlot for optional network management cards, the SMX3000RMHV2U provides the granular control and reliability necessary for modern enterprise infrastructure.
Key Features :
Scalable runtime via external battery pack support.
High-efficiency Green Mode achieves 98% efficiency.
Pure sine wave output for sensitive IT electronics.
Intuitive LCD interface for local status and control.
Specifications :
| Brand | APC |
| Part Number | SMX3000RMHV2U |
| Product Type | Line-Interactive UPS |
| Power Capacity | 3000VA / 2700W |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 230V |
| Output Connections | (8) IEC 320 C13, (2) IEC 320 C19 |
| Input Connection | IEC 320 C20 |
| Waveform Type | Pure Sine Wave |
| Form Factor | 2U Rack/Tower Convertible |
| Dimensions (H x W x D) | 85 mm x 432 mm x 667 mm |
| Net Weight | 37.32 kg |
| Operating Temperature | 0°C to 40°C |
| Transfer Time | 2-4ms typical |
Frequently Asked Questions :
Can I add more battery packs to increase backup time?
Yes, the SMX3000RMHV2U supports up to 10 external battery packs (SMX120RMBP2U), allowing for hours of runtime during extended power outages.
Does this UPS include a Network Management Card?
This model features a SmartSlot for an optional Network Management Card (such as the AP9640 or AP9641), but it does not come pre-installed.
Is the rack-mount hardware included in the box?
Yes, the unit includes the necessary rack-mounting brackets and support rails, as well as stabilizing feet for tower-style deployment.
Additional information
| Weight | 45.36 kg |
|---|---|
| Dimensions | 86.9 × 59.6 × 24.3 cm |
| Brand | Apc |
