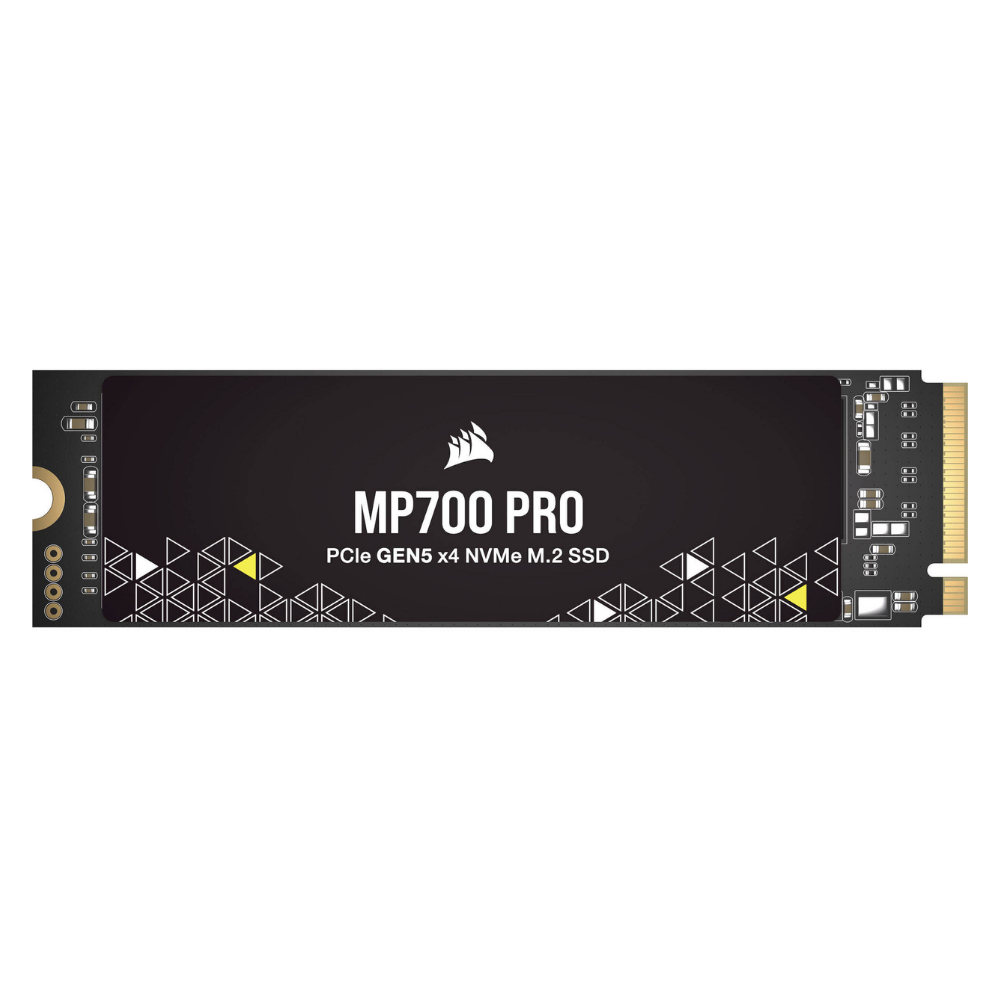

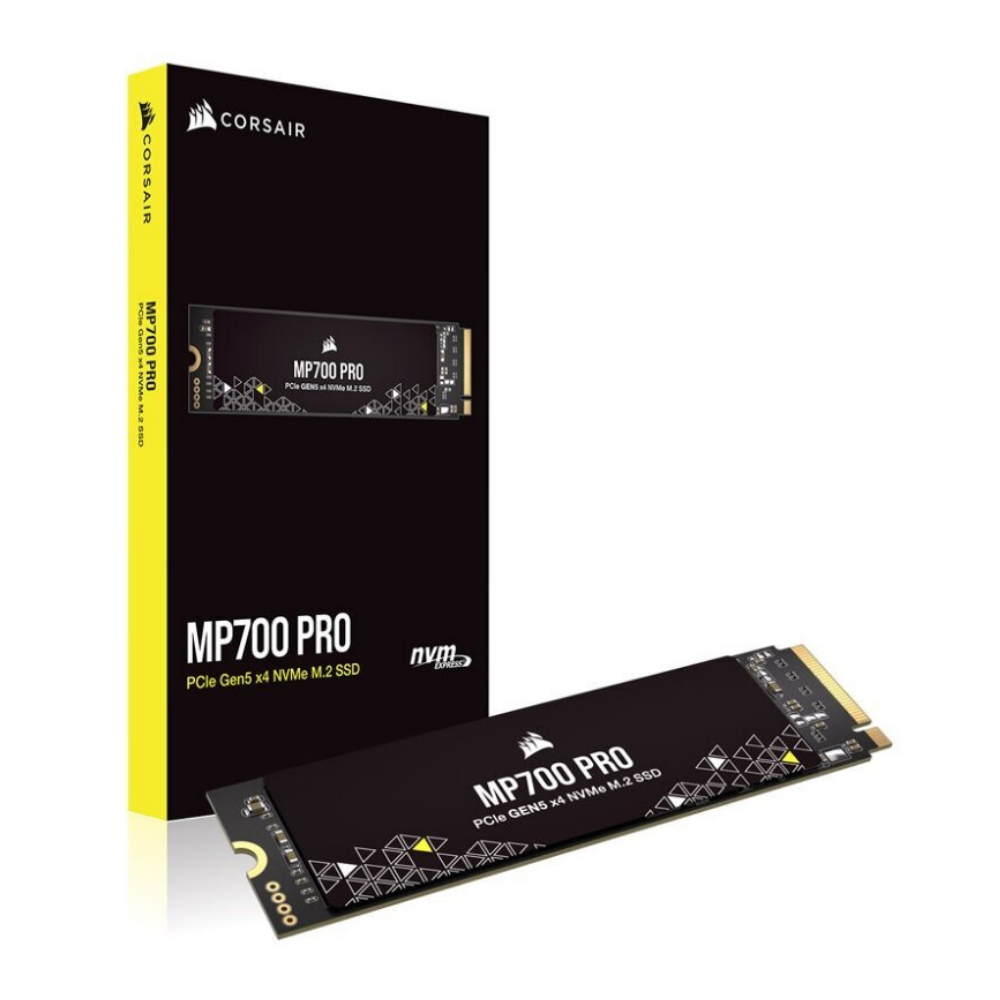

Corsair CSSD-F1000GBMP700PNH MP700 PRO 1TB PCIe Gen5 NVMe SSD
Key Features
• PCIe Gen5 x4 NVMe interface for maximum bandwidth
• 1TB 3D TLC NAND optimized for performance and endurance
• Up to 11,700 MB/s read and 9,600 MB/s write speeds
• High IOPS performance for demanding workloads
• Requires dedicated cooling for sustained Gen5 operation
Please fill the form to get price quote.
Corsair CSSD-F1000GBMP700PNH MP700 PRO 1TB PCIe Gen5 NVMe SSD
Overview
Corsair CSSD-F1000GBMP700PNH is a 1TB PCIe Gen5 NVMe solid-state drive from the MP700 PRO series, designed for high-performance desktop and workstation environments requiring maximum storage throughput and low latency.
It utilizes a PCIe 5.0 x4 interface with NVMe 2.0 protocol, delivering significantly higher bandwidth compared to previous Gen4 SSDs. This enables ultra-fast data access for workloads such as large dataset processing, high-resolution media editing, and application-heavy environments.
The drive is built using 3D TLC NAND flash, providing a balance between endurance and sustained performance. It supports sequential read speeds up to approximately 11,700 MB/s and write speeds up to 9,600 MB/s, depending on system configuration and cooling implementation.
It is deployed in high-end desktops, engineering workstations, and performance-focused computing systems, particularly where PCIe Gen5 platforms (Intel 700-series / AMD 600-series chipsets or newer) are available.
Thermal management is critical for this class of storage. The drive requires a dedicated heatsink or motherboard cooling solution, as Gen5 SSDs generate higher thermal output under sustained load.
It is not suitable for legacy systems limited to SATA or PCIe Gen3/Gen4 where its performance advantage cannot be utilized.
Typical Deployment Scenarios
• High-performance workstation storage for large datasets
• PCIe Gen5 desktop builds requiring maximum throughput
• Content creation systems (video, 3D assets, AI workloads)
• OS and application drive for ultra-fast load times
• Gaming systems leveraging DirectStorage-compatible titles
Specifications
| Specification | Value |
|---|---|
| Brand | Corsair |
| Part Number | CSSD-F1000GBMP700PNH |
| Product Type | NVMe Internal SSD |
| Capacity | 1TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen5 x4 (NVMe 2.0) |
| NAND Type | 3D TLC |
| Sequential Read | Up to ~11,700 MB/s |
| Sequential Write | Up to ~9,600 MB/s |
| Random Read (4K QD32) | Up to ~1.4M IOPS |
| Random Write (4K QD32) | Up to ~1.5M IOPS |
| Endurance (TBW) | ~700 TBW |
| Encryption | AES 256-bit |
| Operating Temperature | 0°C to 70°C |
| Power Requirement | 3.3V |
| Weight | ~0.03 kg |
Compatibility / Ecosystem
Compatible with motherboards supporting M.2 PCIe Gen5 x4 slots. Backward compatible with PCIe Gen4/Gen3 slots (reduced performance). Requires motherboard or aftermarket heatsink for sustained operation. Supports Windows 10/11 and modern Linux distributions.
Additional information
| Weight | 0.00821 kg |
|---|---|
| Dimensions | 8 × 2.2 × 0.3 cm |
