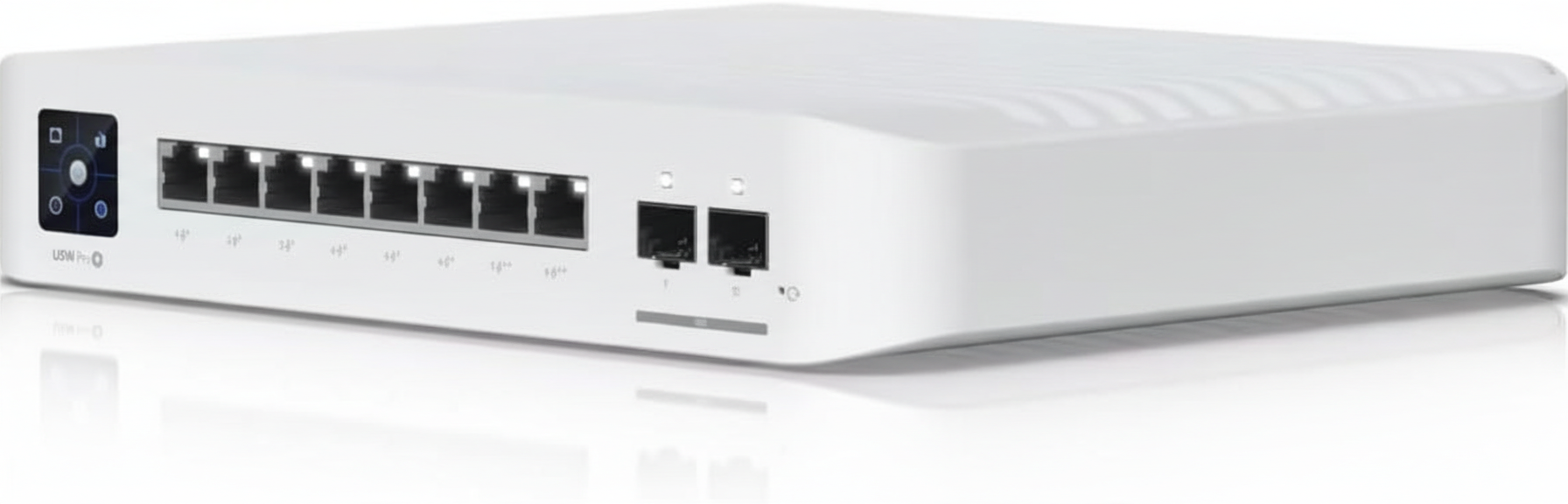

Name: Ubiquiti USW-PRO-8-POE – 8-Port Layer 3 PoE Switch with 10G SFP+
Brand: Ubiquiti
SKU: USW-PRO-8-POE
Availability: InStock

Ubiquiti USW-PRO-8-POE – 8-Port Layer 3 PoE Switch with 10G SFP+

Overview :

The Ubiquiti USW-PRO-8-POE is a high-performance, compact Layer 3 switch engineered for enterprise edge deployments where silent operation and high-speed uplinks are mandatory. Unlike standard desktop switches, this Pro-tier model integrates two 10G SFP+ ports, providing the necessary bandwidth for high-capacity fiber backhaul or direct connections to high-speed storage and servers. It is an ideal solution for small branch offices, retail environments, and AV-over-IP installations that require sophisticated traffic management without the acoustic footprint of traditional rack-mount hardware.

Technically, the unit features eight Gigabit Ethernet ports, including six PoE+ ports and two high-power PoE++ ports, supported by a robust 120W total power budget. This allows for the seamless integration of power-hungry devices such as WiFi 6/7 access points and PTZ security cameras. Managed through the UniFi Network application, the USW-PRO-8-POE supports advanced Layer 3 switching features, including inter-VLAN routing and static routing, which helps reduce the processing load on the primary gateway. Its fanless thermal design and versatile mounting options—including wall mounting—ensure it can be deployed reliably in non-traditional IT spaces while maintaining enterprise-grade stability.

Key Features :

Dual 10G SFP+ ports for high-capacity fiber uplinks.

Six PoE+ and two PoE++ ports with 120W total budget.

Advanced Layer 3 switching and inter-VLAN routing.

Silent, fanless thermal design for noise-sensitive areas.

Specifications :

Brand	Ubiquiti
Part Number	USW-PRO-8-POE
Product Type	Managed Layer 3 PoE Switch
Networking Interfaces	(8) 10/100/1000 Mbps RJ45 Ports
SFP+ Interfaces	(2) 1/10 Gbps SFP+ Ports
PoE Interfaces	(6) PoE+ (802.3at), (2) PoE++ (802.3bt)
Total PoE Budget	120W
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps
Power Method	100—240V AC / 54V DC Input
Max Power Consumption	30W (Excluding PoE output)
Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)
Weight	2.1 kg (4.6 lb)
Operating Temperature	-5 to 45° C (23 to 113° F)

Frequently Asked Questions :

Does this switch support Layer 3 routing features?

Yes, the USW-PRO-8-POE supports advanced Layer 3 features including inter-VLAN routing, static routing, and DHCP server functionality when managed via the UniFi Network application.

Can I mount this switch in a standard 19-inch server rack?

This switch is a compact form-factor device designed for desktop or wall mounting. It is not a full-width 1U rack-mount switch, making it better suited for space-constrained environments.

What is the maximum power output available per port?

Ports 1 through 6 support PoE+ (up to 30W per port), while ports 7 and 8 support PoE++ (up to 60W per port), provided the total 120W power budget is not exceeded.

Additional information

Weight	2.1 kg
Dimensions	9.8 × 7.9 × 1.7 cm
Brand	Ubiquiti
