Ubiquiti HORN-5-60 Horn 5GHz 60° Isolation Antenna Horns for airFiber
115.50 AED125.99 AED (-8%)
Enhance your airFiber network with Ubiquiti’s HORN-5-60 5GHz 60° Isolation Antenna, designed for superior co-location performance.
Ubiquiti HORN-5-60 5GHz Isolation Antenna Horn 60° – In Dubai
Overview :

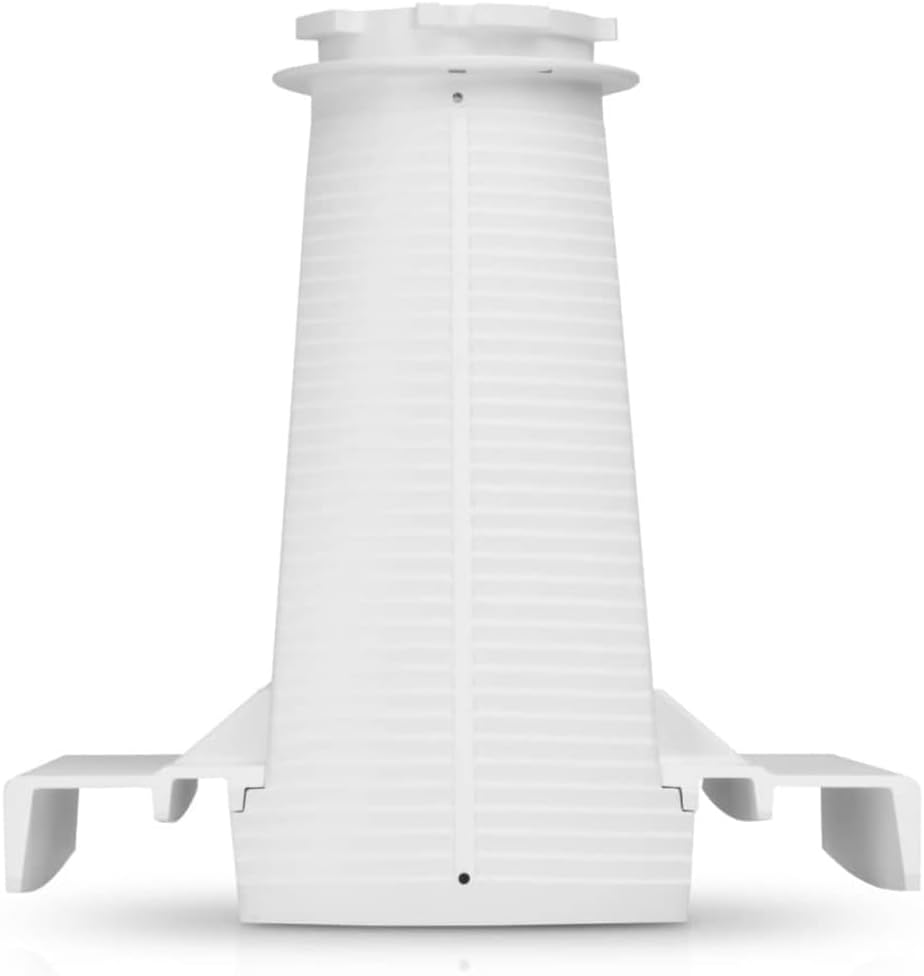

The Ubiquiti HORN-5-60 is a high-performance 5 GHz horn antenna engineered to deliver a 60° beamwidth, making it ideal for point-to-point (PtP) and point-to-multipoint (PtMP) wireless communication systems. Designed for use with Ubiquiti’s airFiber® LTU and airMAX® radios, this antenna offers enhanced co-location performance without compromising gain. Its modular design allows for easy interchangeability with other horn antennas, providing flexibility to meet specific deployment requirements. The HORN-5-60 features dual-linear polarization and is built to withstand harsh weather conditions, ensuring reliable operation in various environments.
Specifications :
| Specification | Details |
|---|---|
| Model | HORN-5-60 |
| Type | 5 GHz Horn Antenna |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 16 dBi |
| Beamwidth (Horizontal) | 60° |
| Beamwidth (Vertical) | 60° |
| Elevation Beamwidth | 30° |
| VSWR | Maximum 2:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 50 N @ 200 km/h (11.2 lbf @ 125 mph) |
| Polarization | Dual-linear |
| Cross-Polar Isolation | 17 dB |
| Dimensions | 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73 inches) |
| Weight | 720 g (25.39 oz) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Connector Type | N-type female |
| Mounting | Pole mount (pole not included) |
Additional information
| Brand | Ubiquiti |
|---|
