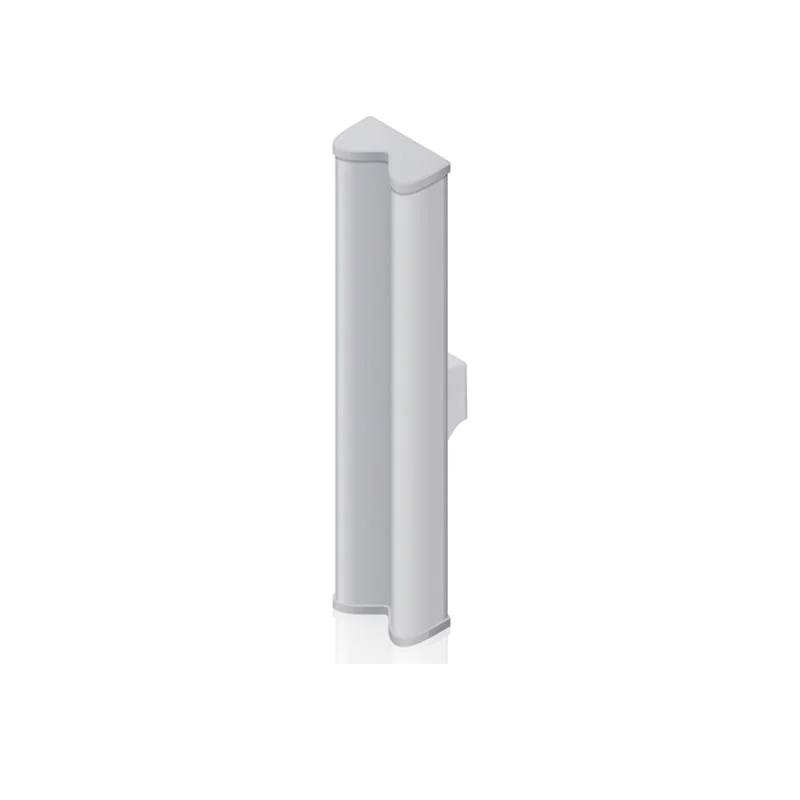

Ubiquiti AM-5G16-120 airMAX Sector 2×2 BaseStation Section Antenna
Roll over image to zoom in
125.11 AED136.49 AED (-8%)
High-performance 5 GHz sector antenna with 16 dBi gain and 120° beamwidth, designed for seamless integration with Ubiquiti Rocket radios
Ubiquiti AM-5G16-120 airMAX Sector 2×2 BaseStation Section Antenna – In Dubai
Overview :
The Ubiquiti AM-5G16-120 is a carrier-class 5 GHz sector antenna engineered to deliver 16 dBi gain with a 120° beamwidth, making it ideal for point-to-multipoint (PtMP) applications. Featuring 2×2 dual-polarity MIMO technology, it ensures high-speed and reliable wireless connectivity. Designed for seamless integration with Ubiquiti’s Rocket radios, this antenna facilitates the creation of robust and scalable wireless networks
Specifications :
| Specification | Details |
|---|---|
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 15.0 – 16.0 dBi |
| Polarization | Dual Linear |
| Beamwidth (H-pol) | 137° (6 dB) |
| Beamwidth (V-pol) | 118° (6 dB) |
| Elevation Beamwidth | 8° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Cross-pol Isolation | 22 dB Min. |
| Dimensions | 367 x 63 x 41 mm |
| Weight | 1.1 kg |
| Wind Survivability | 125 mph |
| Wind Loading | 6 lbf @ 100 mph |
| Mounting | Universal Pole Mount, includes RocketM Bracket and Weatherproof RF Jumpers |
| Compatibility | Ubiquiti Rocket M5, Rocket Prism 5AC |
| Operating Temperature | -40°C to 80°C |
| Operating Humidity | 5% to 95% Non-Condensing |
| Certifications | ETSI Specification EN 302 326 DN2 |
| Application | Point-to-MultiPoint (PtMP) Networking |
| Connector Type | RP-SMA Female |
| Included Accessories | RocketM Bracket, Weatherproof RF Jumpers |
| Warranty | 1-Year Limited Warranty |
Additional information
| Brand | Ubiquiti |
|---|
