Name: TP-Link SG3452P – JetStream 48-Port PoE+ Managed Switch
Brand: TP-Link
SKU: SG3452P
Availability: InStock

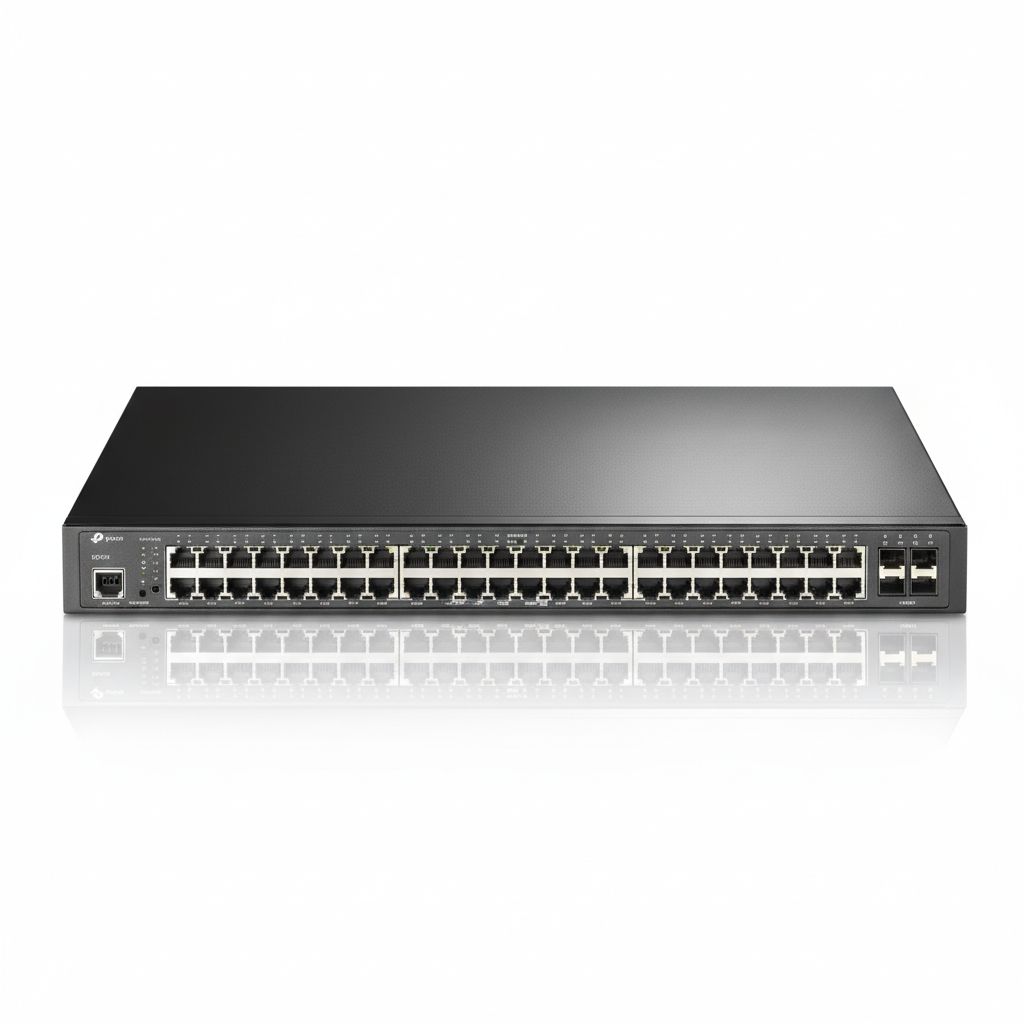

TP-Link SG3452P – JetStream 48-Port PoE+ Managed Switch

Overview :

The TP-Link SG3452P is a high-density Layer 2+ managed switch engineered for enterprise access layers and campus networks. Equipped with 48 Gigabit RJ45 ports supporting 802.3at/af PoE+ and 4 dedicated Gigabit SFP slots, it provides a scalable solution for powering high-volume deployments of IP cameras, wireless access points, and VoIP infrastructure. With a robust 384W total PoE budget, this switch simplifies edge deployments by delivering both data and power through a single cable, reducing the need for localized power outlets.

Designed for seamless integration into the Omada Software Defined Networking (SDN) ecosystem, the SG3452P supports centralized cloud management, allowing IT administrators to manage multi-site environments from a single pane of glass. Beyond standard switching, it offers advanced L2+ features such as Static Routing and 802.1Q VLANs to optimize traffic flow. Security is reinforced through IP-MAC-Port Binding, Access Control Lists (ACLs), and 802.1X authentication, ensuring network integrity in sensitive B2B environments. This switch is an ideal choice for SMBs requiring a balance of high port density, power delivery, and sophisticated management without the overhead of a full Layer 3 core.

Key Features :

48× 802.3at/af PoE+ ports with a 384W total power budget.

Integrated into Omada SDN for centralized cloud management.

Advanced L2+ features including Static Routing and IGMP.

Robust security with IP-MAC-Port Binding and 802.1X.

Specifications :

Brand	TP-Link
Part Number	SG3452P
Product Type	Managed PoE+ Switch
Total Ports	48× 10/100/1000 Mbps RJ45, 4× Gigabit SFP
PoE Standard	802.3at/af compliant
PoE Budget	384 W
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
MAC Address Table	16 K
Jumbo Frame	9 KB
Management	Omada SDN, Web UI, CLI, SNMP
Dimensions	440 × 330 × 44 mm
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	0°C to 40°C

Frequently Asked Questions :

Does the SG3452P require an Omada controller to function?

No, the switch can operate as a standalone managed device via its local web interface or CLI. However, an Omada controller (hardware or software) is required for centralized cloud management and automated provisioning.

What is the maximum power output per port on this switch?

Each of the 48 ports supports the 802.3at/af standard, delivering up to 30W per port, provided the total cumulative power draw does not exceed the 384W system budget.

Can the SFP slots be used for hardware stacking?

The SG3452P does not support physical stacking. The four SFP slots are designed for high-speed fiber uplinks to core switches or for connecting remote network segments.

Additional information

Weight	5.74 kg
Dimensions	33 × 44 × 4.4 cm
Brand	TP-Link
