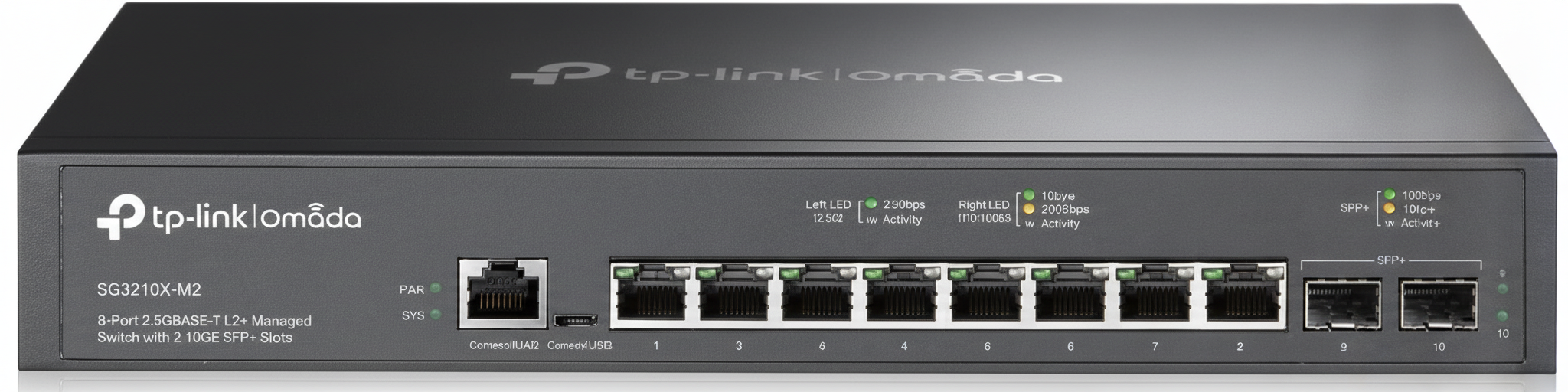

TP-Link SG3210X-M2 – 8-Port 2.5G L2+ Managed Switch with 10G Uplinks
8-Port 2.5G & 2-Port 10G SFP+ Managed Switch
Please fill the form to get price quote.
TP-Link SG3210X-M2 – 8-Port 2.5G L2+ Managed Switch with 10G Uplinks
Overview :
The TP-Link SG3210X-M2 is a high-performance L2+ managed switch engineered to eliminate bandwidth bottlenecks in modern multi-gigabit environments. Featuring eight 2.5 Gbps RJ45 ports and two 10G SFP+ uplink slots, this unit provides the necessary throughput for WiFi 6/7 access points, high-speed NAS arrays, and high-performance workstation clusters. It is a strategic fit for small-to-medium business (SMB) edge deployments or branch office networks requiring low-latency data transfers without the overhead of a full 10G copper infrastructure.
Key Features :
Eight 2.5 Gbps ports for high-speed WiFi 6/7 backhaul
Dual 10G SFP+ slots for high-bandwidth fiber uplinks.
Integrated Omada SDN for centralized cloud management.
Advanced L2+ features including IPv4/IPv6 Static Routing.
Specifications :
| Brand | TP-Link |
| Part Number | SG3210X-M2 |
| Product Type | L2+ Managed Switch |
| 2.5G RJ45 Ports | 8 |
| 10G SFP+ Slots | 2 |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16 K |
| Jumbo Frame | 9 KB |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Max Power Consumption | 16.1 W |
| Dimensions (W x D x H) | 226 × 131 × 44 mm |
| Mounting | Desktop / Rack Mount |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions :
Does this switch support Power over Ethernet (PoE)?
No, the SG3210X-M2 is a non-PoE switch. It is designed specifically for high-speed data distribution to devices with their own power sources, such as servers, workstations, and powered NAS units.
Can I manage this switch without an Omada SDN controller?
Yes. While it is fully compatible with the Omada ecosystem for centralized management, it also supports standalone management via a local Web GUI, CLI (Console, Telnet, SSH), and SNMP.
Are the 10G SFP+ slots backward compatible with 1G SFP modules?
Yes, the SFP+ slots are dual-speed and support both 10G SFP+ and 1G SFP fiber modules, providing flexibility for various uplink distances and media types.
Additional information
| Weight | 1.31 kg |
|---|---|
| Dimensions | 18.0 × 29.4 × 4.4 cm |
| Brand | TP-Link |
