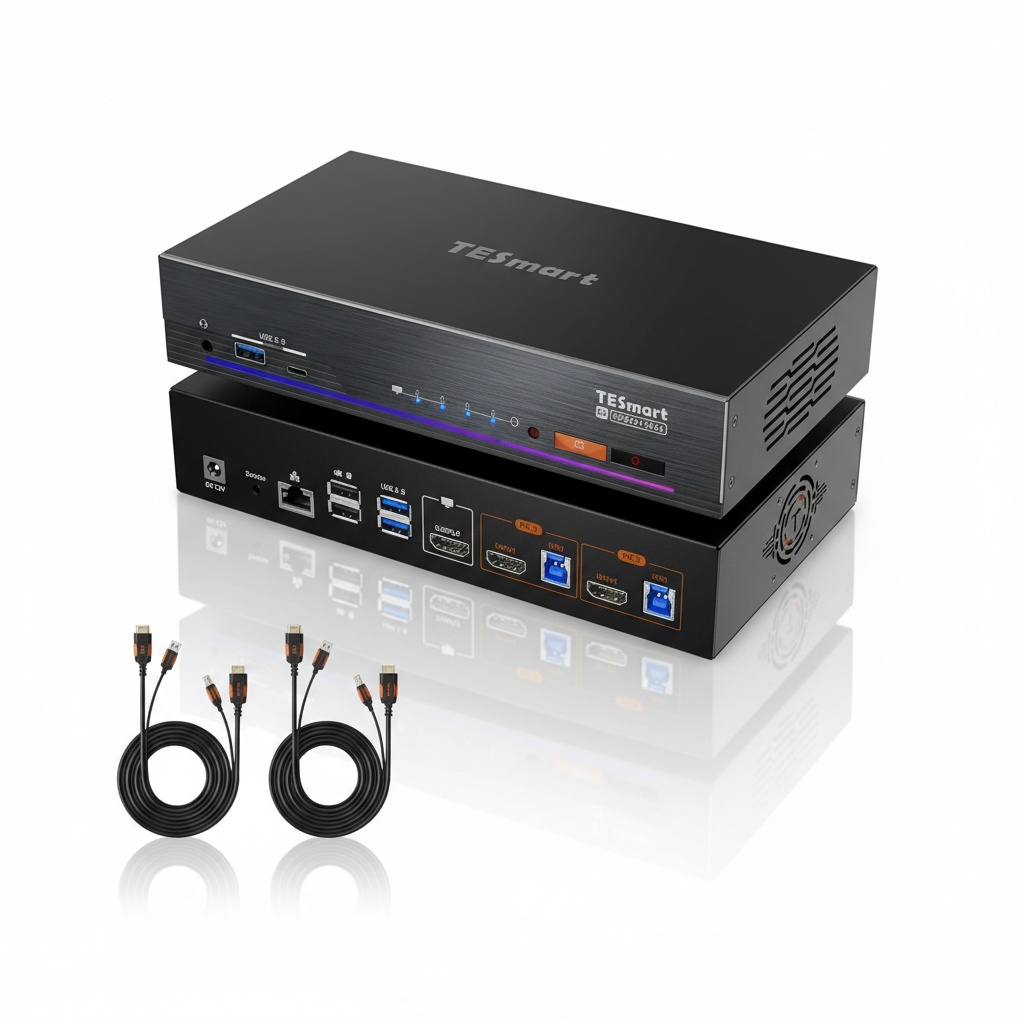

TESmart HKS201-M24-USBK 2-Port 4K@60Hz HDMI KVM Switch

  • Brand: TESmart
  • SKU: HKS201-M24-USBK
HKS201-M24-USBK
Roll over image to zoom in
Click to open expanded view

1,877.39 AED2,625.00 AED (-28%)

In stock

Key Features

- Supports 4K@60Hz 4:4:4 for high-fidelity visual output.
- Integrated EDID emulation prevents window rearrangement.
- Dedicated USB 2.0 hub port for peripheral sharing.
- Multiple switching modes via hotkeys, IR, or buttons.

SKU: HKS201-M24-USBK Category: Tags: , , , , , Brand:

TESmart HKS201-M24-USBK 2-Port 4K@60Hz HDMI KVM Switch in Dubai

Overview :

The TESmart HKS201-M24-USBK is a professional-grade 2-port HDMI KVM switch engineered for high-resolution workstation management in demanding B2B environments. Designed for deployment in media production suites, server room crash carts, and engineering workstations, this unit allows a single operator to control two HDMI-equipped computers using one set of keyboard, mouse, and monitor. It supports true 4K resolution at 60Hz with 4:4:4 chroma subsampling, ensuring the color accuracy and text sharpness required for CAD, video editing, and financial monitoring.

A critical differentiator for the HKS201-M24-USBK is its integrated EDID emulation technology. By maintaining constant communication between the display and the inactive source, it prevents desktop icons from rearranging and windows from resizing when switching between inputs—a common failure point in standard KVMs. The hardware includes a dedicated USB 2.0 hub port for sharing peripherals like printers or external storage across both connected systems. Deployment is seamless across Windows, macOS, and Linux environments without the need for software drivers. Switching is handled via front-panel buttons, keyboard hotkeys, or the included IR remote, providing flexible integration into various physical desk or rack layouts.

Specifications :

Brand TESmart
Part Number HKS201-M24-USBK
Product Type 2-Port HDMI KVM Switch
Max Resolution 3840 x 2160 @ 60Hz (4:4:4)
HDMI Version HDMI 2.0
HDCP Version HDCP 2.2
Data Rate 18 Gbps
USB Version USB 2.0 (Keyboard/Mouse + Hub)
Switching Methods Hotkey, Front Panel, IR Remote
Audio Support L/R Analog Output (3.5mm)
Power Supply DC 5V 2A
Operating Temp 0°C to 70°C
Dimensions 200 x 80 x 25 mm
Material Aluminum Alloy

Additional information

Weight 1.7 kg
Dimensions 23 × 12.5 × 4.5 cm
