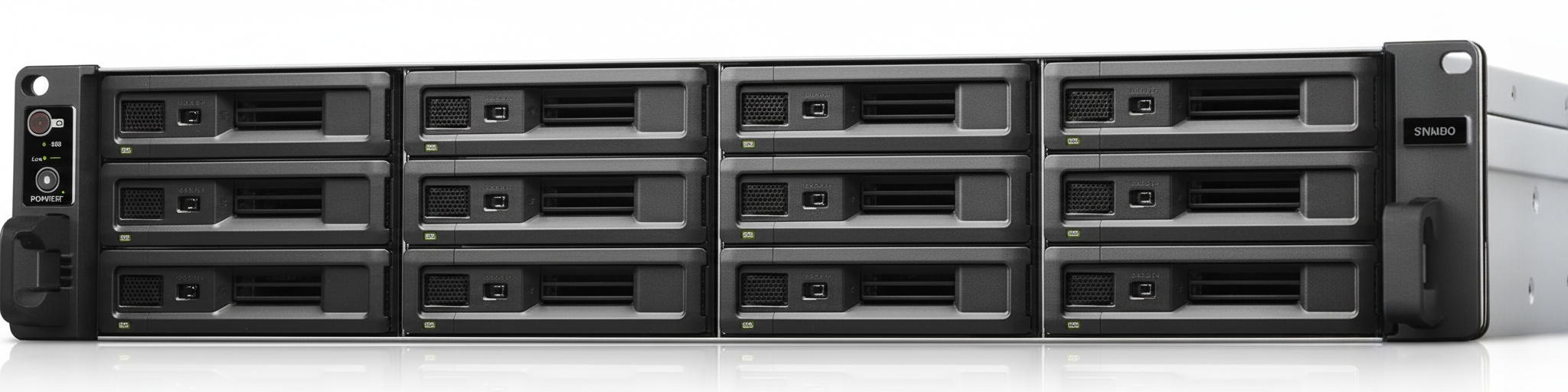

Synology SA3200D 12-Bay Dual-Controller SAS Storage System

Overview

The Synology SA3200D is a dual-controller rackmount storage server designed for high-availability enterprise storage deployments. It is typically deployed by infrastructure engineers and storage administrators who require continuous storage access with minimal downtime in environments such as virtualization clusters, backup repositories, and centralized enterprise storage platforms. The system integrates redundant controllers operating in an active-passive configuration to ensure storage services remain available during controller failure events.

Each controller module is powered by an Intel Xeon D-1521 processor with four cores and eight threads, providing the compute capability required to manage storage workloads and system services. The platform includes 8 GB of DDR4 ECC memory per controller, expandable up to 64 GB, allowing the system to support demanding workloads such as iSCSI storage services, virtualization datastores, and multi-user file access. This architecture ensures stable performance and data integrity when running enterprise storage services.

The system provides 12 hot-swappable SAS drive bays supporting 2.5-inch or 3.5-inch dual-port SAS HDDs or SSDs. Storage capacity can be expanded using SAS expansion units, allowing the system to scale to 36 total drives when connected to compatible expansion shelves. This modular approach enables organizations to expand storage capacity without downtime while maintaining RAID protection across large storage pools.

In typical deployments, the system is installed in a 2U rackmount enclosure within enterprise data centers or edge storage environments. Built-in networking includes two 1GbE RJ-45 ports and one 10GbE RJ-45 port per controller, enabling integration into existing enterprise networks while allowing throughput upgrades through optional PCIe network interface cards.

A key architectural component is the non-transparent bridge (NTB) communication channel between controllers. This allows low-latency synchronization and automatic failover to the secondary controller if the active controller becomes unavailable. The system’s redundant power supplies and modular cooling further contribute to operational continuity in high-availability storage infrastructures.

The SA3200D is generally deployed as shared storage for enterprise applications, backup systems, or virtual machine infrastructure where reliability and availability are critical. Environments requiring extremely low latency or flash-optimized storage performance typically deploy all-flash storage arrays instead of HDD-based enterprise NAS systems.
