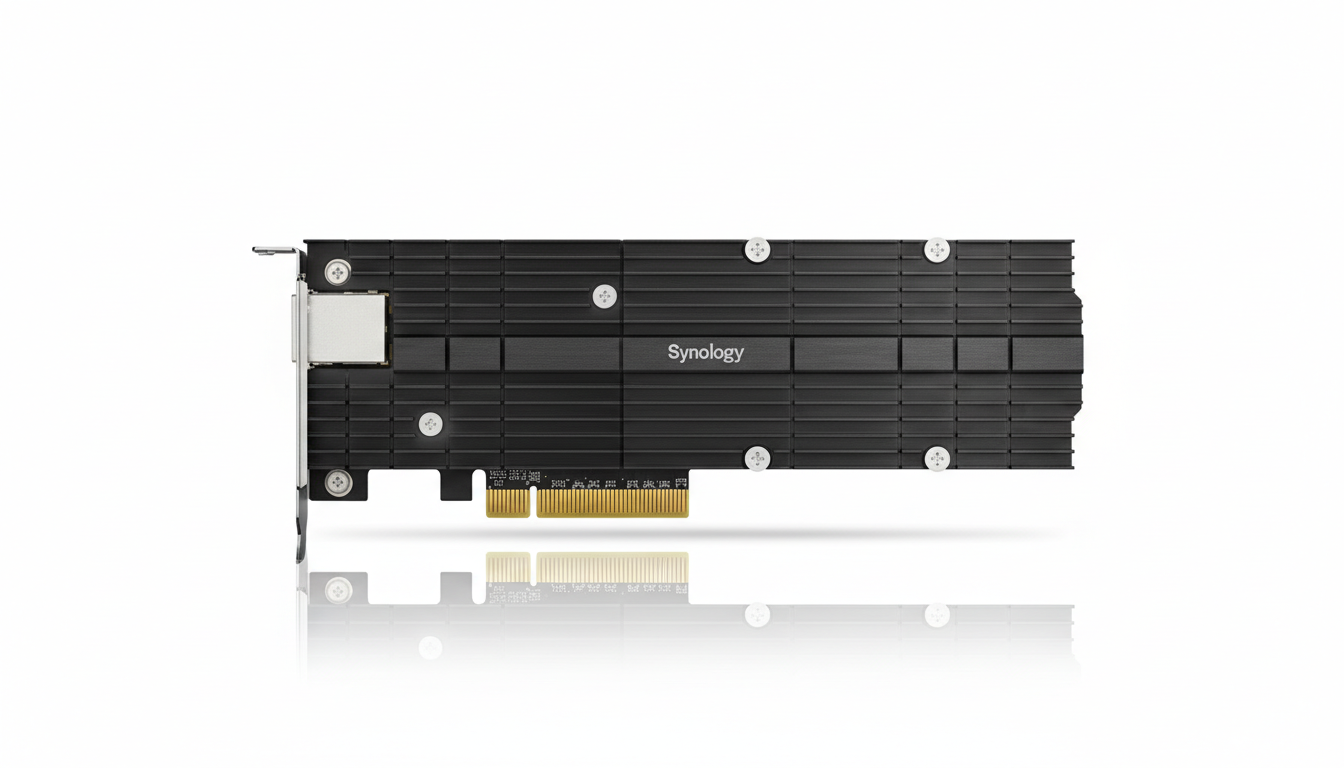

Synology E10M20-T1 – 10GbE and Dual M.2 Adapter Card

E10M20-T1
Roll over image to zoom in
Click to open expanded view

903.74 AED961.80 AED (-6%)

In stock

10GbE and Dual M.2 NVMe SSD Combo Card.

SKU: E10M20-T1 Category: Tags: , , , , Brand:

Synology E10M20-T1 – 10GbE and Dual M.2 NVMe SSD Adapter Card

Overview :

The Synology E10M20-T1 is a specialized multi-function PCIe expansion card designed to resolve the common bottleneck of limited PCIe slot availability in enterprise NAS environments. By integrating a single 10GbE RJ-45 port with dual M.2 22110/2280 NVMe SSD slots, this card allows system administrators to simultaneously upgrade network throughput and storage I/O performance using only a single PCIe 3.0 x8 slot. This is an ideal solution for virtualization, high-traffic file servers, and creative post-production workflows where low latency and high bandwidth are critical for productivity.

Deployed primarily in RackStation and DiskStation units, the E10M20-T1 supports 10GBASE-T, 5Gbps, 2.5Gbps, and 1Gbps standards, providing flexible integration into existing copper-based network infrastructures. The card is engineered to offload random I/O to the SSD cache, significantly reducing latency for frequently accessed data without sacrificing a dedicated network slot. This hardware-level consolidation simplifies system architecture and reduces the total cost of ownership for businesses scaling their storage capabilities. Managed directly through Synology DiskStation Manager (DSM), the card offers a seamless installation experience with verified reliability for 24/7 enterprise operations.

Key Features :

Dual M.2 NVMe slots for high-speed SSD cache acceleration.

Integrated 10GbE RJ-45 port supports multi-gigabit speeds.

PCIe 3.0 x8 interface ensures maximum data throughput.

Supports 2280 and 22110 SSD form factors for flexibility.

Specifications :

Brand Synology
Part Number E10M20-T1
Product Type M.2 SSD & 10GbE Combo Adapter Card
Host Interface PCIe 3.0 x8
Storage Interface PCIe NVMe
Supported Form Factors 22110 / 2280
Connector Type M-key
Network Port 1 x RJ-45
Data Transfer Rates 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
Network Standard IEEE 802.3an/bz/ab/u
Operating Temperature 0°C to 40°C (32°F to 104°F)
Dimensions 71.75 mm x 200.05 mm x 17.76 mm
Bracket Height Low Profile and Full Height

Frequently Asked Questions :

Does this card support SATA M.2 SSDs?

No, the E10M20-T1 is designed exclusively for M.2 NVMe SSDs. SATA-based M.2 modules are not compatible with this adapter.

Can I use the 10GbE port without installing SSDs?

Yes, the network port and the SSD slots function independently. You can utilize the 10GbE connectivity even if the M.2 slots are empty.

Is this card compatible with all Synology NAS models?

No, it is compatible with specific models that have a PCIe slot and support this specific card. Always check the Synology Compatibility List for your specific NAS model before purchase.

Additional information

Weight 0.447 kg
Dimensions 1.77 × 20.005 × 7.175 cm
Brand

Synology
