StarTech PEX4SFF8643 – PCIe x4 to SFF‑8643 U.2 Adapter

StarTech PEX4SFF8643 – PCIe x4 to SFF‑8643 U.2 Adapter in Dubai

Overview:

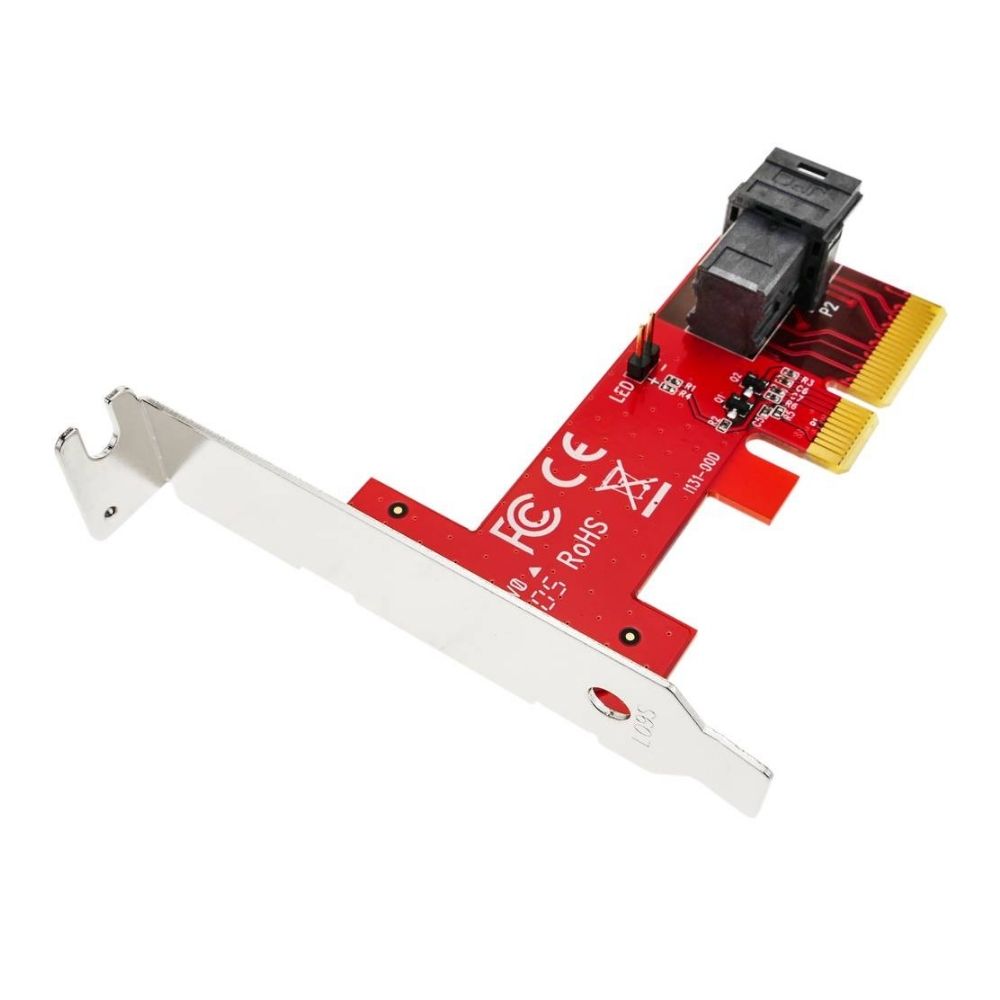

The StarTech PEX4SFF8643 is a PCI Express x4 adapter card that enables connection of a single U.2 (SFF‑8643) NVMe SSD to systems with available PCIe expansion slots. It is deployed by IT engineers, systems integrators, and workstation builders to add high‑speed U.2 NVMe storage capability to desktops, servers, and compact workstations that lack native U.2 ports. The adapter provides a direct pathway for high‑throughput NVMe traffic rather than relying on host‑dependent drive cages or backplanes.

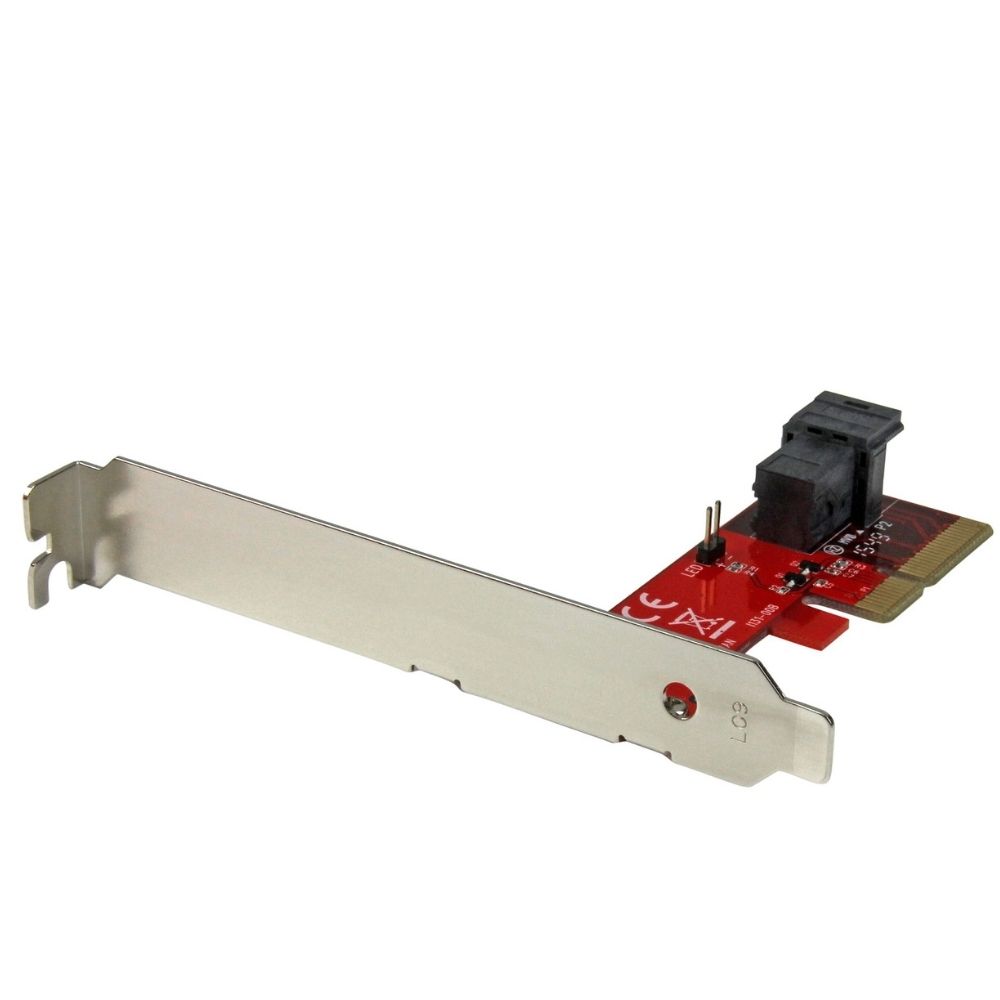

From a technical deployment perspective, the adapter offers PCIe 3.0 x4 lane connectivity via the host slot, delivering full NVMe bandwidth to connected drives. It presents a standard internal SFF‑8643 connector that accepts U.2 NVMe SSDs when paired with an appropriate SFF‑8643 cable. The design includes both full‑height (preinstalled) and low‑profile brackets, enabling installation in a broad range of chassis from full towers to small form factor (SFF) systems.

This card fits in PCIe 3.0‑capable motherboards, and can also operate in PCIe 2.0 slots with reduced bandwidth. It is suitable for upgrading legacy systems to support enterprise‑class U.2 NVMe storage or adding NVMe performance without investing in newer platforms. Typical use cases include expanding local storage bandwidth for content creation systems, engineering workstations, and virtual desktop hosts.

Integration requires insertion into an available PCIe x4, x8, or x16 slot, secure bracket mounting, and connection of the U.2 SSD via an SFF‑8643 cable (sold separately). No special drivers or OS support are necessary, as the adapter functions as a pass‑through link for NVMe traffic.

A practical deployment involves adding a U.2 NVMe SSD to a high‑performance workstation for local scratch storage in video editing or large dataset analytics. It also supports leveraging server‑grade U.2 NVMe drives in desktop test benches or compact server nodes without native U.2 connectors.

This adapter is not suitable for SATA drives without appropriate bridging hardware, nor does it provide RAID or storage management functions. It also does not convert signals for externally accessible connectors.

Typical Deployment Scenarios:

• Add U.2 NVMe SSD support to PCIe‑equipped desktops
• Workstation local high‑bandwidth scratch storage
• Compact server NVMe expansion where native U.2 ports are missing
• Legacy motherboard NVMe upgrade path
• Testing platforms for enterprise U.2 NVMe drive validation

Technical Specifications:

Compatibility / Ecosystem:

Compatible with PCIe 3.0 and PCIe 2.0 motherboard slots
Supports U.2 NVMe SSDs via SFF‑8643 interface
Fits both standard and small form factor systems with bracket adjustment
Works with OS NVMe drivers for Windows, Linux, and macOS via passthrough.
