StarTech PEX2M2 Dual M.2 SATA PCIe Controller Card

StarTech PEX2M2 Dual M.2 SATA PCIe Controller Card – In Dubai

Overview :

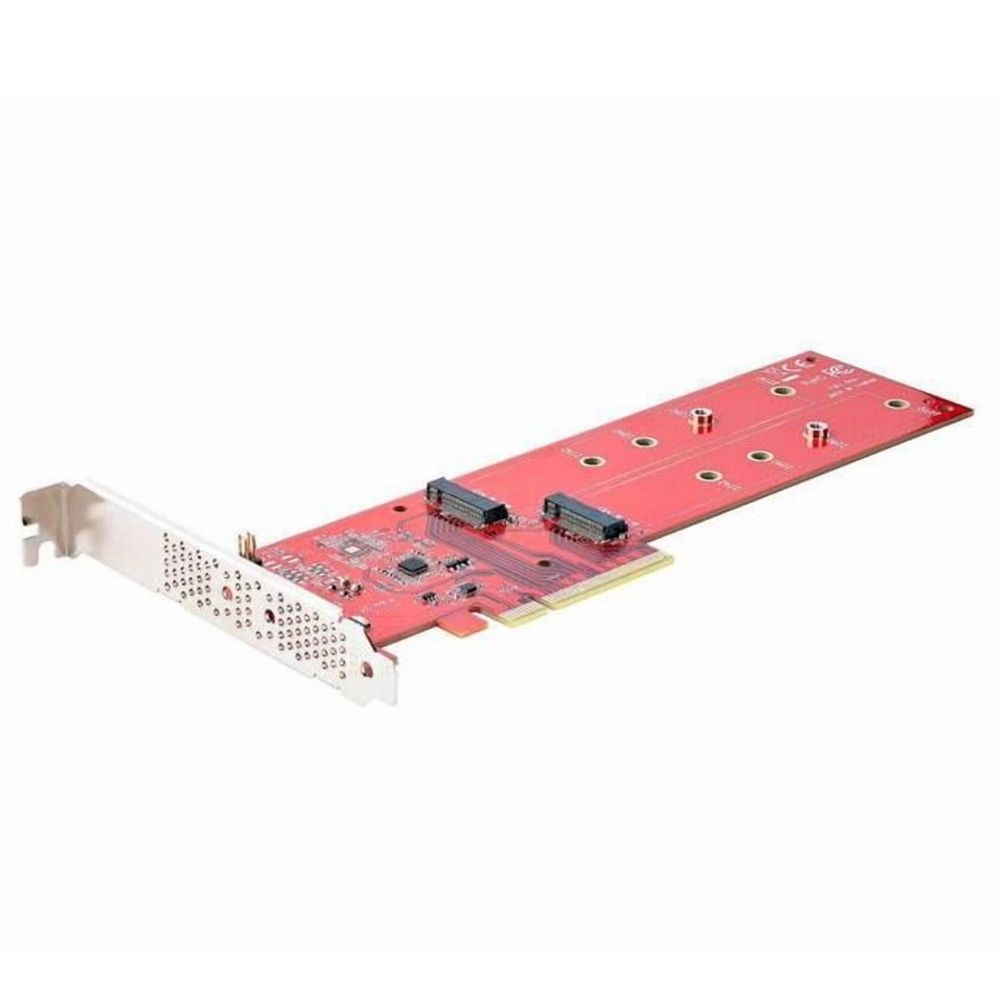

The StarTech PEX2M2 is a PCIe-based M.2 SATA SSD controller card designed to expand internal storage by enabling installation of two M.2 SATA SSDs into a desktop system. It is typically deployed by IT professionals, system builders, and engineers who require additional internal storage or need to recover data from M.2 drives without relying on onboard motherboard slots.

The card utilizes a PCI Express x4 interface and supports SATA III (6Gbps) throughput, allowing installed M.2 drives to operate within standard SATA performance limits. It is designed specifically for SATA-based M.2 (NGFF) drives and does not support NVMe PCIe SSDs. The controller enables improved system responsiveness when used with SSDs, particularly for OS boot drives or frequently accessed data.

This adapter fits into desktop environments, workstations, and small form factor PCs where motherboard M.2 slots are limited or unavailable. Its dual-profile bracket design allows installation in both full-height and low-profile chassis, making it suitable for compact systems as well as standard ATX builds.

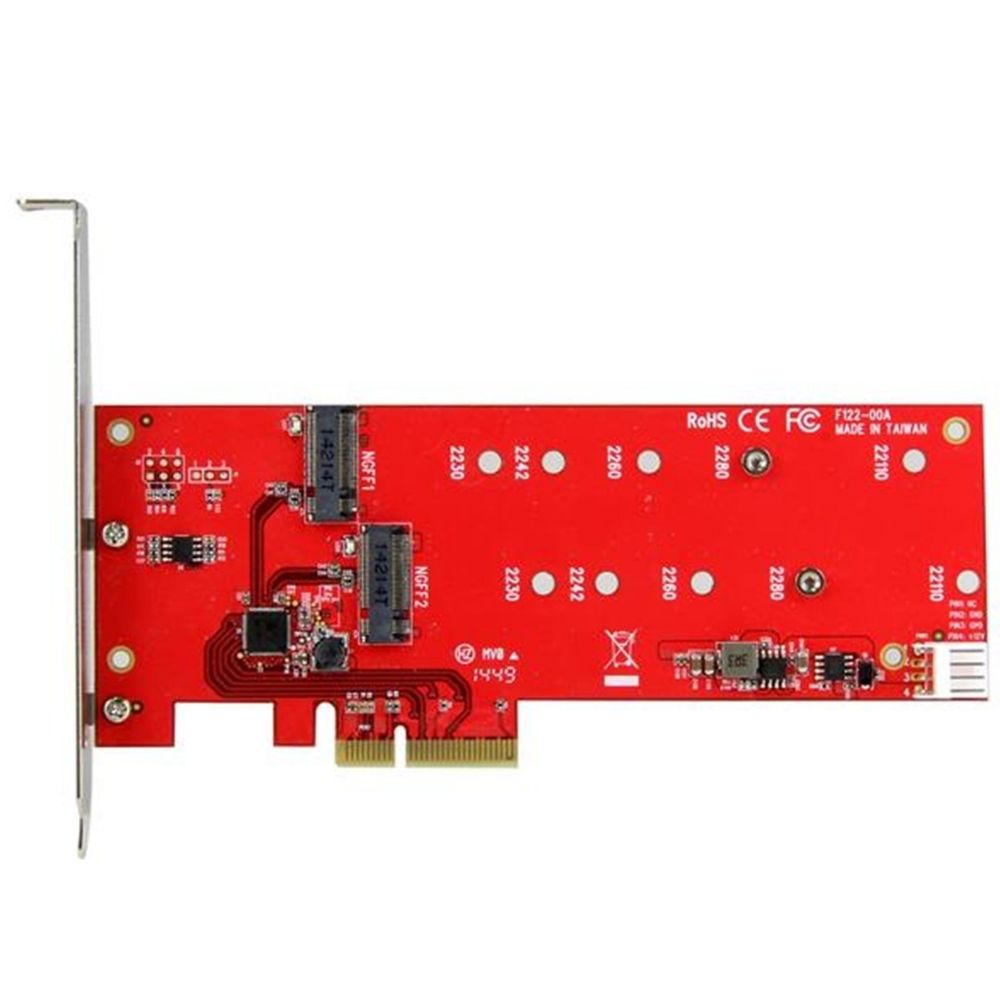

Integration is straightforward, requiring no additional drivers on most operating systems due to native support. It connects directly to the PCIe bus and provides internal M.2 slots for supported drive sizes including 2230, 2242, 2260, 2280, and 22110 form factors.

In practical deployment, this card is used for expanding storage in desktop systems, adding SSD-based boot drives, or accessing data from removed M.2 drives during recovery workflows. It is also used in lab and testing environments where multiple SSDs need to be accessed quickly.

This device is not suitable for NVMe-based high-performance storage environments, RAID acceleration, or enterprise storage systems requiring hardware RAID or PCIe Gen4 bandwidth.

Typical Deployment Scenarios :

• Desktop storage expansion with additional M.2 SSDs
• Data recovery from laptop M.2 SATA drives
• Workstation upgrades without native M.2 slots
• Lab environments testing multiple SSDs
• Small form factor PCs requiring internal SSD expansion

Technical Specifications :

Compatibility / Ecosystem :

• Compatible with SATA I/II/III M.2 SSDs (B-Key)
• Works with PCIe x4/x8/x16 slots on desktop motherboards
• Supports standard Windows and Linux environments (no drivers required)
• Includes low-profile bracket for compact systems
