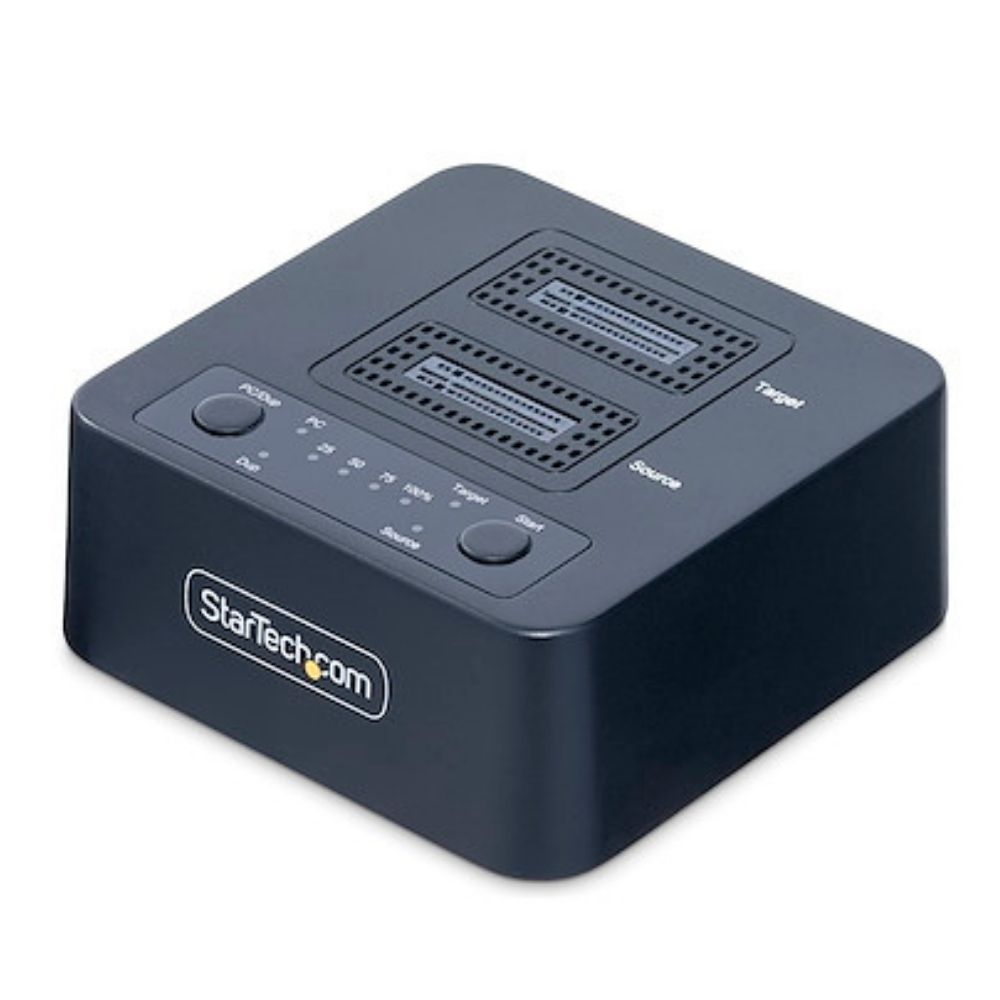

StarTech M2-HDD-DUPLICATOR‑N1 1:1 M.2 NVMe Drive Duplicator

StarTech M2-HDD-DUPLICATOR‑N1 1:1 M.2 NVMe Drive Duplicator in Dubai

Overview:

The StarTech M2‑HDD‑DUPLICATOR‑N1 is a standalone 1:1 M.2 NVMe drive duplicator and external drive dock designed for cloning and accessing NVMe SSDs without requiring a host computer. It is deployed by IT technicians, system integrators, and storage technicians for tasks such as rapid system imaging, drive upgrades, off‑line backups, and replication of identical SSD configurations. It addresses the need for sector‑by‑sector duplication of M.2 NVMe drives in environments where speed and hardware‑level cloning are priorities.

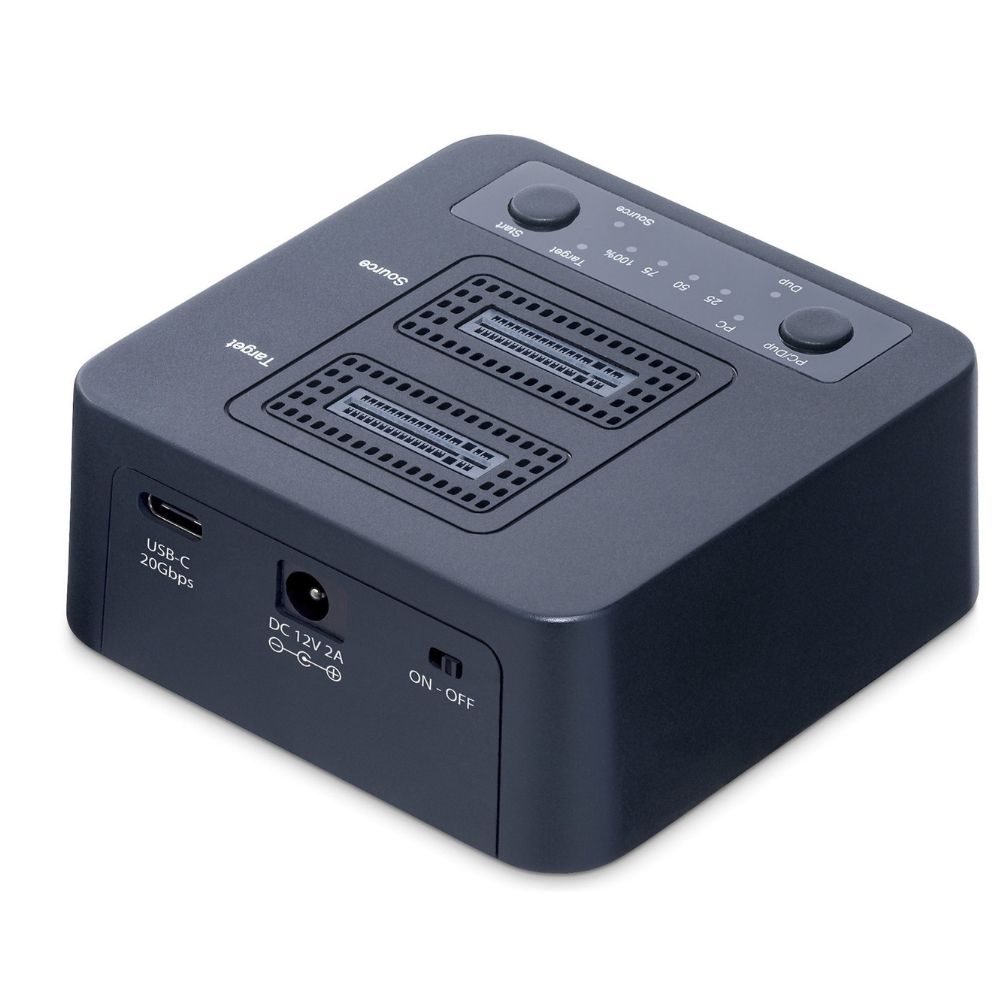

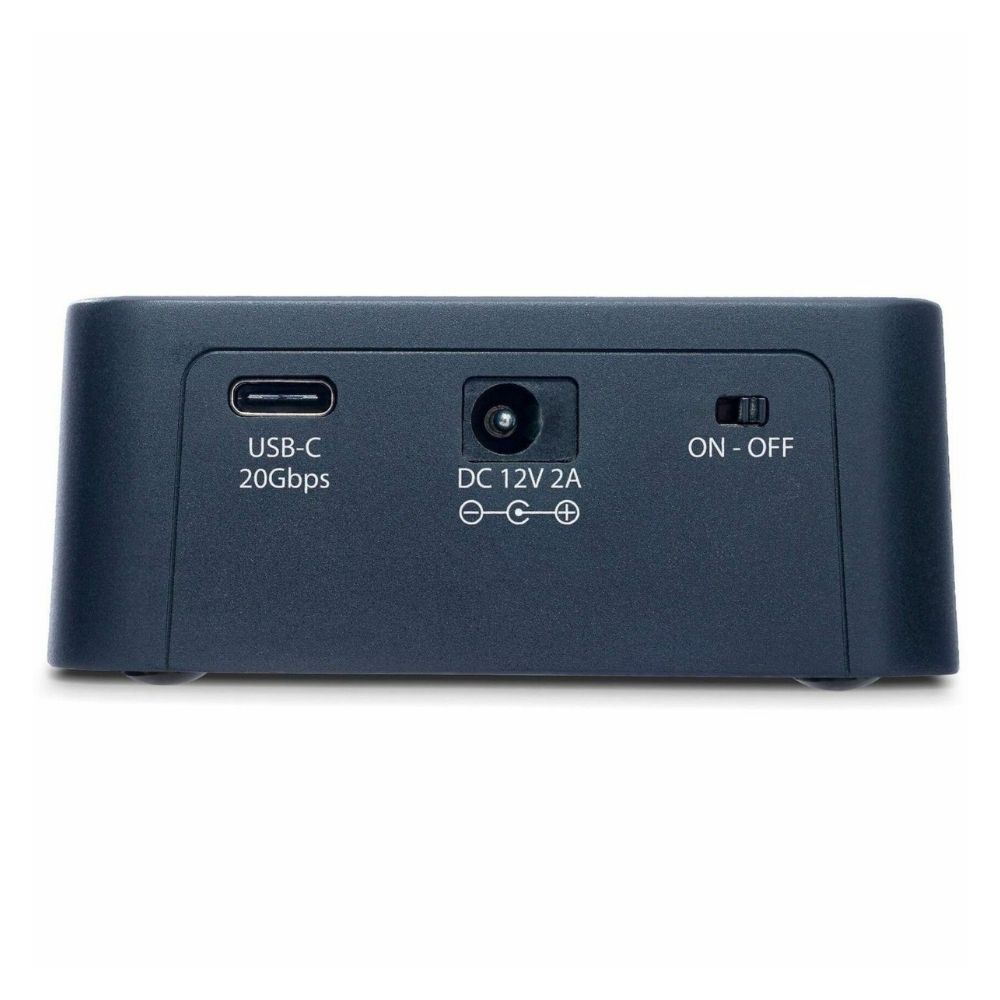

From a deployment perspective, the unit supports two M.2 slots — one for a source drive and one for a target drive — and operates in standalone duplicator mode or as a USB‑connected M.2 dock via USB‑C 3.2 Gen 2×2 (20 Gbps). In standalone duplicator mode, sector‑by‑sector copying occurs at rates up to 90 GB/min, enabling quick replication of firmware, OS images, or entire SSD contents without host software.

This solution fits technical benches, data recovery labs, enterprise maintenance stations, and IT support desktops where frequent cloning of systems or bulk SSD provisioning is required. Its compact, toaster‑style design takes minimal desktop space and simplifies loading/unloading of drives.

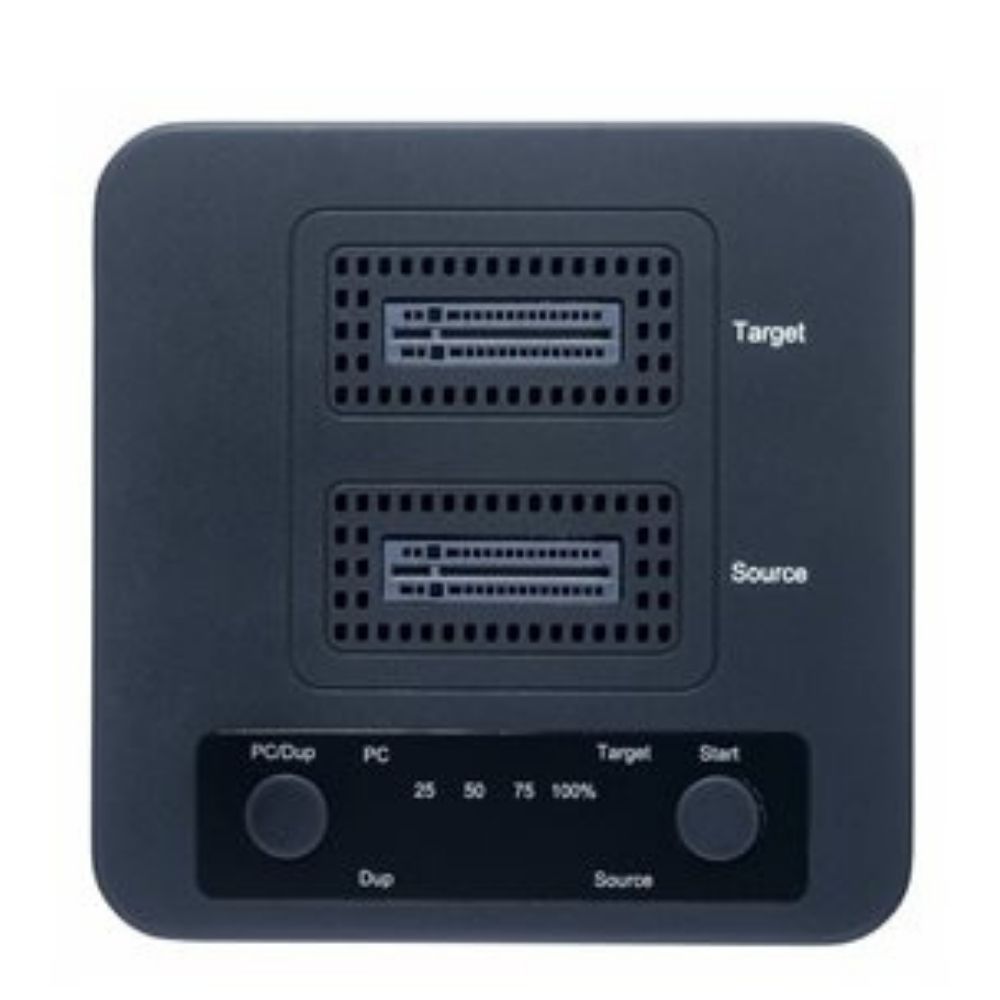

Integration into workflow is straightforward. In PC‑host mode, it functions as an external M.2 drive dock allowing file access on inserted M.2 NVMe drives via high‑speed USB‑C to Windows, macOS, Linux, or Chrome OS hosts. LEDs provide status and progress indications, and an audible buzzer signals completion of operations.

A typical deployment includes replicating standard system images to new SSDs during system provisioning or copying critical data from failing drives for backup and recovery. It also serves as a portable NVMe drive access point in service environments.

This device is not suitable for duplicating SATA‑only drives or non‑M.2 form factors without appropriate adapters, nor does it replace network‑connected duplication systems or enterprise storage array tools. It also does not provide hardware RAID functionality.

Typical Deployment Scenarios:

• Rapid 1:1 cloning of M.2 NVMe SSDs on service benches
• Bulk imaging of standardized OS/system images
• Portable NVMe drive access via USB‑C docking
• Offline backups of critical M.2 SSD data
• IT support environments for system provisioning

Technical Specifications:

Compatibility / Ecosystem:

Supports Windows, macOS, Chrome OS, Linux in PC‑host mode
Works with USB‑C 3.2 Gen 2×2 host ports
Supports sector‑by‑sector drive cloning without software
Handles common M.2 NVMe form factors (2230–22110)
