StarTech BRACKET125PTP 2.5″ to 3.5″ Drive Bay Mounting Bracket

StarTech BRACKET125PTP 2.5″ to 3.5″ Drive Bay Mounting Bracket – In Dubai

Overview :

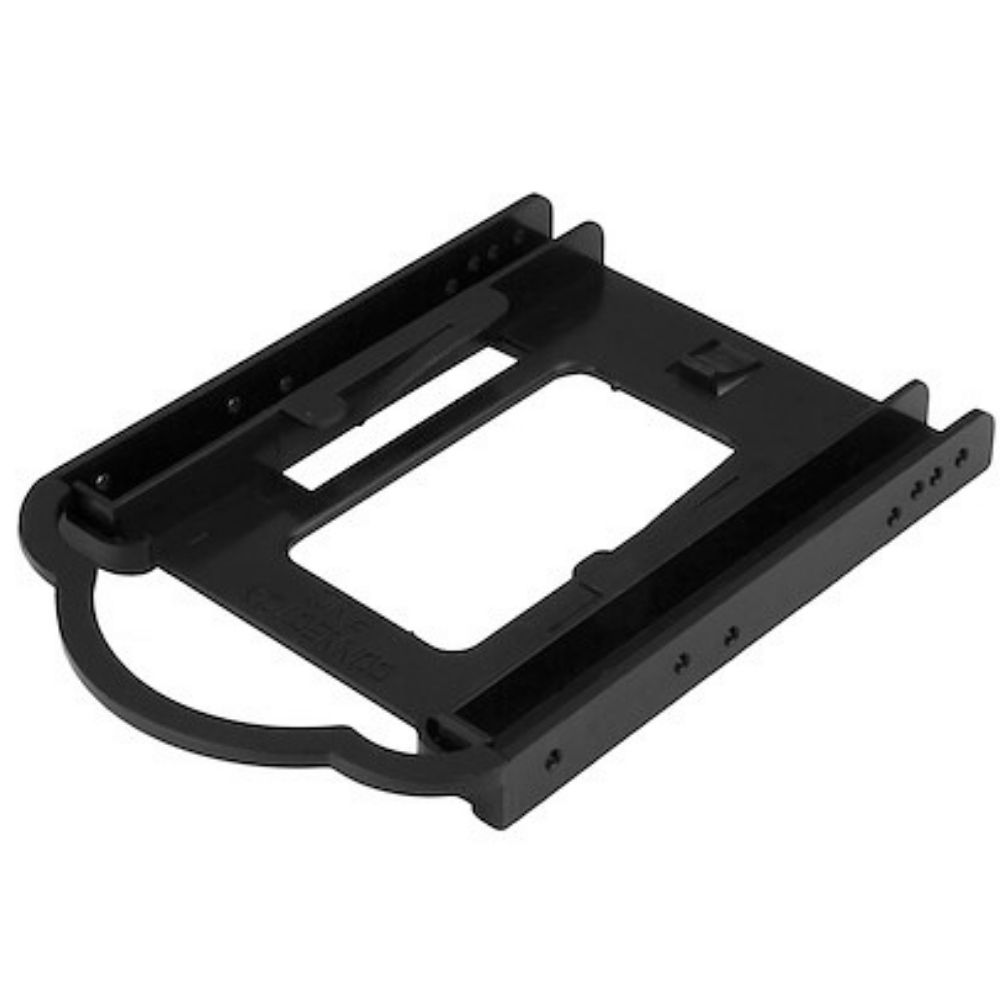

The StarTech BRACKET125PTP is a set of mounting brackets designed to allow 2.5‑inch solid‑state drives (SSDs) and hard disk drives (HDDs) to be installed in standard 3.5‑inch internal drive bays found in desktop PCs and servers. It is used by system integrators, IT technicians, and storage engineers when upgrading or repurposing systems that lack native 2.5″ bays but need the performance benefits of smaller storage media.

This accessory kit supports SATA and SAS interface drives within the 2.5″ form factor and accommodates drive heights between 7 mm and 9.5 mm. The tool‑less design with plastic pegs eliminates the need for screws or additional hardware during installation, reducing assembly time in rackmount servers, desktops, and storage drawers.

Integration into existing storage platforms is straightforward; the brackets slide into a 3.5″ bay and secure a 2.5″ drive without specialized tools. The kit is supplied in a 5‑pack, giving technicians multiple brackets for system builds or refurbishments.

This accessory does not provide electrical connectivity itself and requires a host system with appropriate SATA or SAS controller support and cabling. It is not a standalone storage device but a mechanical conversion accessory to enable the use of standard 2.5″ storage media in larger drive bays.

Typical Deployment Scenarios :

• Installing 2.5″ SSDs/HDDs into 3.5″ bays in desktops or servers
• Upgrading legacy storage systems lacking 2.5″ mounting points
• Repurposing drives during hardware refresh projects
• Building mixed‑storage configurations in rackmount chassis
• Drive staging and testing stations in repair labs

Technical Specifications :

Compatibility / Ecosystem :

‑ Compatible with HDDs and SSDs with heights from 7 mm to 9.5 mm
‑ Fits standard internal 3.5″ drive bays in desktops and servers
‑ Works with SATA and SAS host controllers
‑ Tool‑less design simplifies installations without additional hardware
