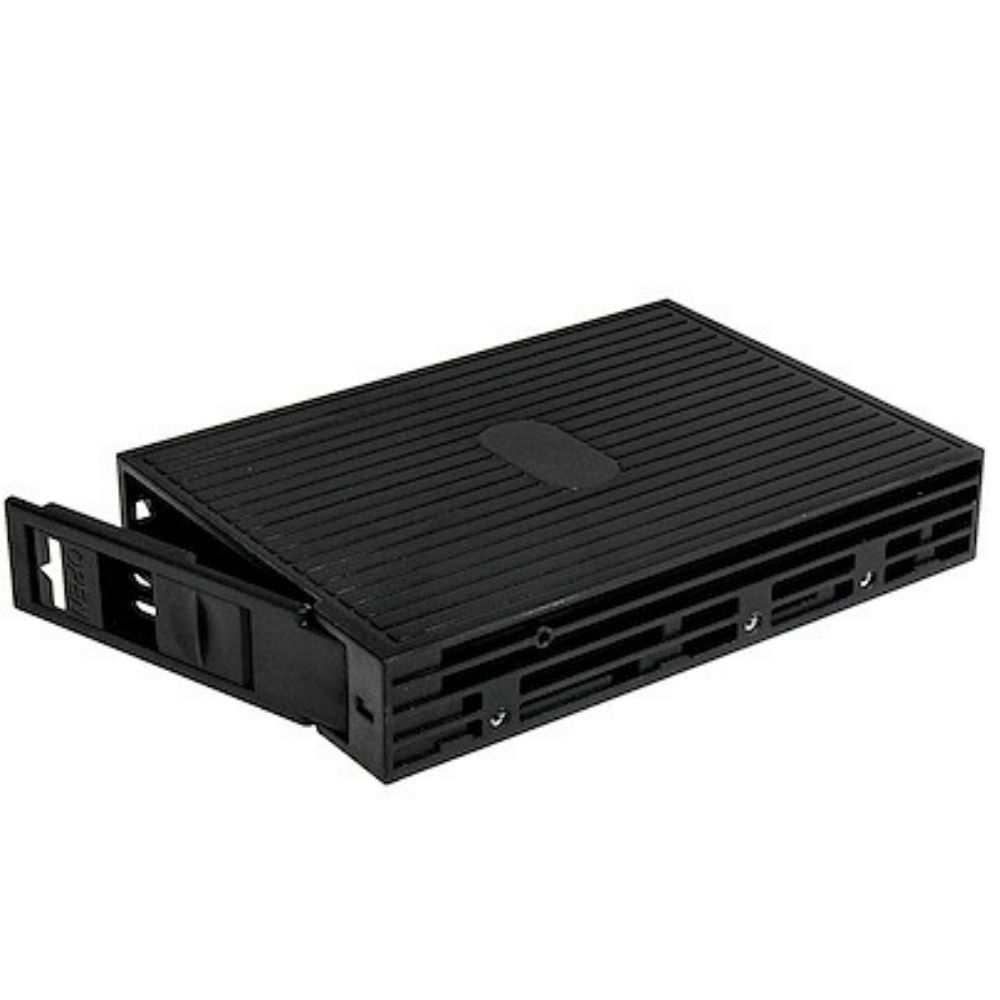

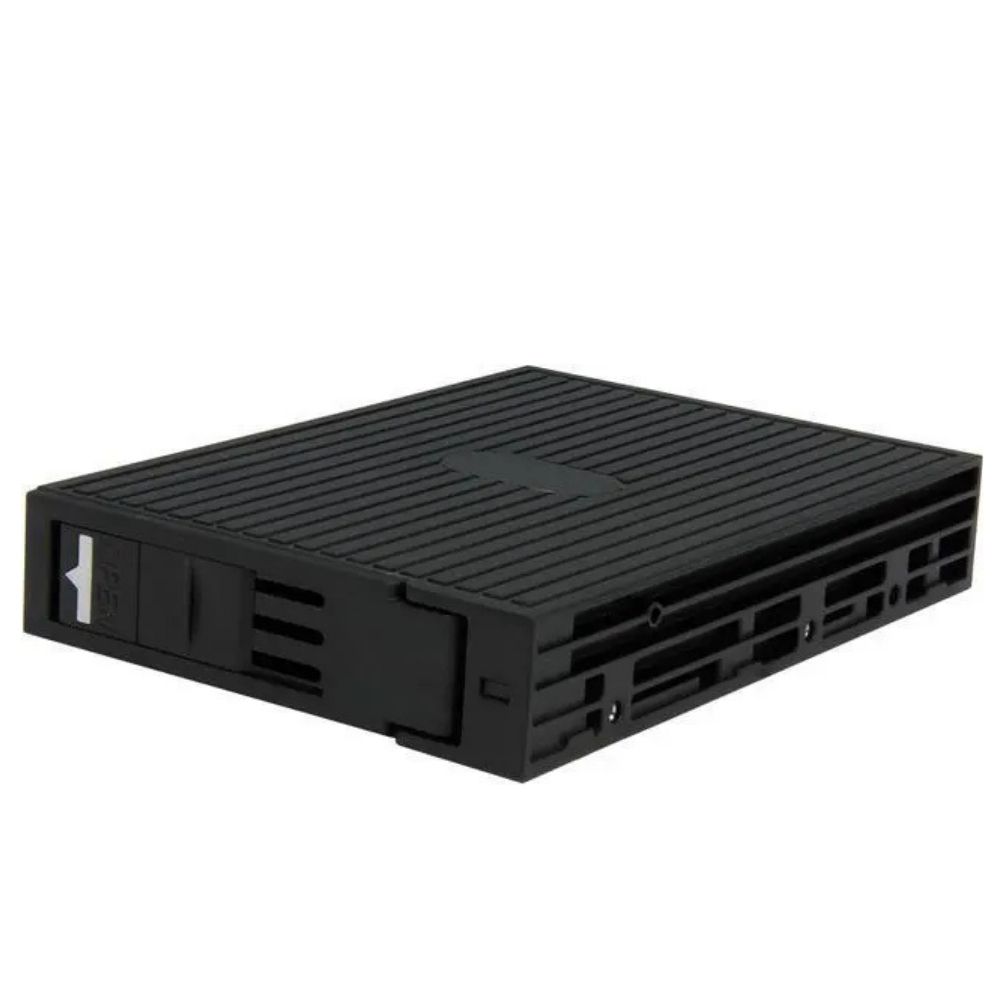

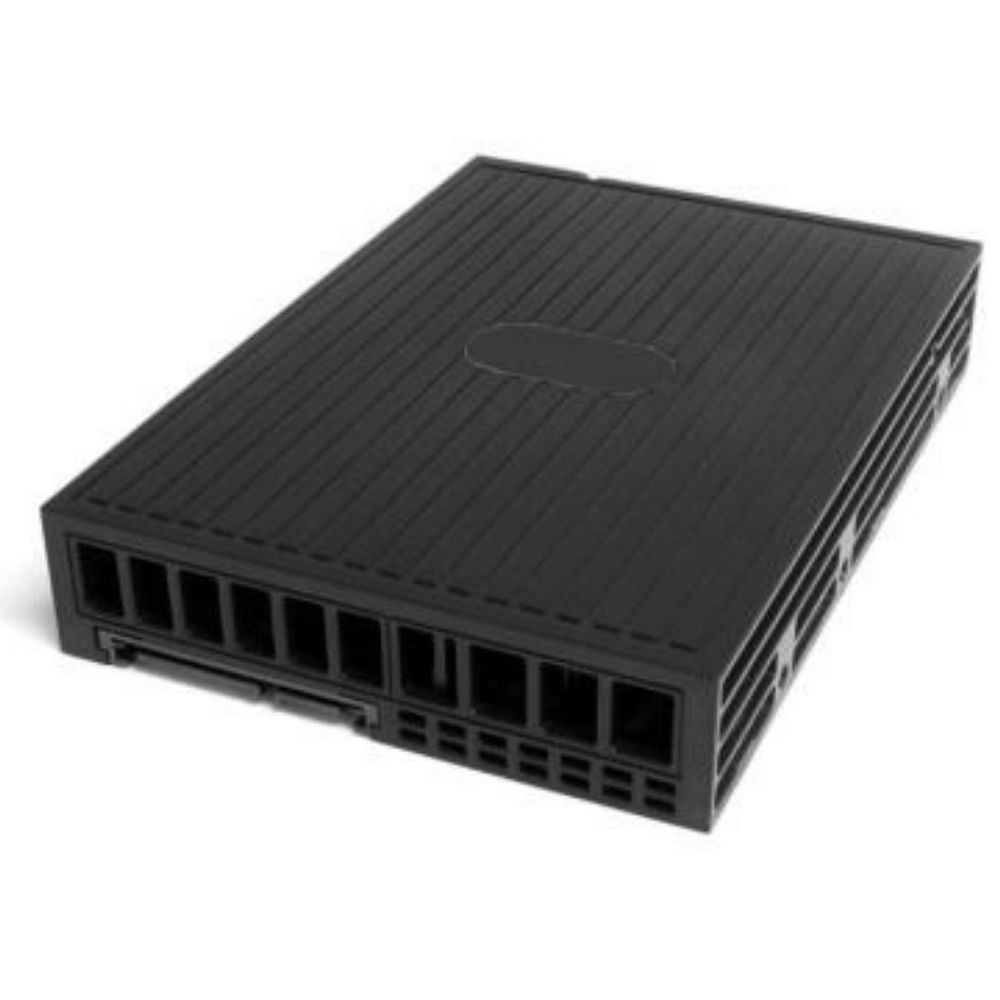

StarTech 25SATSAS35 2.5″ to 3.5″ SATA/SAS Drive Converter

StarTech 25SATSAS35 2.5″ to 3.5″ SATA/SAS Drive Converter – In Dubai

Overview :

The StarTech 25SATSAS35 is a drive bay converter designed to allow installation of 2.5-inch SATA or SAS drives into standard 3.5-inch drive bays. It is typically deployed by system builders and IT engineers to enable compatibility between smaller form factor drives and legacy or desktop storage infrastructures.

The converter supports SATA III and SAS interfaces with transfer rates up to 6 Gb/s, ensuring that connected drives can operate at their full interface speed when paired with a compatible controller. It accommodates 2.5-inch drives up to 15 mm in height and provides direct data and power pass-through via standard SATA connectors.

This device is commonly used in desktop systems, entry-level servers, and storage enclosures where only 3.5-inch bays are available. It allows organizations to reuse existing 2.5-inch SSDs or HDDs without modifying chassis infrastructure.

Integration is straightforward, using standard 3.5-inch mounting points along the sides and base, making it compatible with most rackmount servers, tower systems, and drive cages. The trayless design simplifies installation and removal, reducing deployment time in maintenance scenarios.

In practical deployment, the converter is used to extend storage flexibility by enabling mixed drive form factors within the same system. It is particularly useful in environments transitioning from HDD to SSD where available bays are limited to 3.5-inch formats.

This device is not suitable for environments requiring NVMe connectivity or advanced backplane features such as SAS expanders or high-density enterprise hot-swap trays with full management capabilities.

Typical Deployment Scenarios :

• Installing 2.5″ SSDs into desktop 3.5″ drive bays
• Reusing laptop drives in server or workstation systems
• Storage upgrades in legacy tower servers
• Mixed drive deployments in SATA/SAS environments
• Test benches and lab environments for drive swapping

Technical Specifications :

Compatibility / Ecosystem :

• Compatible with standard 3.5-inch desktop and server bays
• Supports SATA and SAS controller environments
• Works with RAID controllers and onboard SATA ports
• Compatible with Dell-style side mounting configurations
