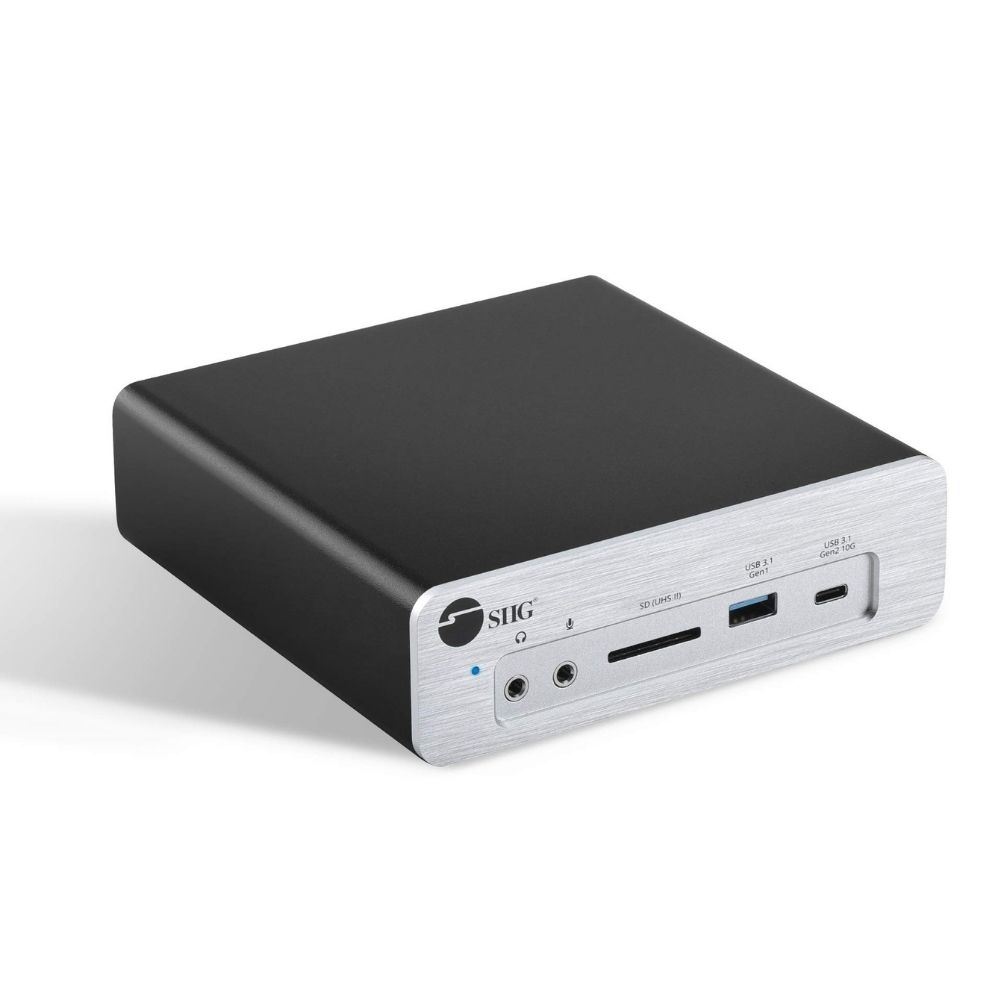

SIIG JU‑DK0K11‑S1 Thunderbolt 3 DP1.4 Docking Station

SIIG JU‑DK0K11‑S1 Thunderbolt 3 DP1.4 Docking Station

Overview

The SIIG JU‑DK0K11‑S1 is a Thunderbolt 3 docking station that expands a single Thunderbolt 3 port on a laptop or desktop into a multi‑function productivity hub. It is deployed in office and hybrid work environments where additional display outputs, peripheral connectivity, wired networking, and external storage support are needed without internal expansion slots.

This dock supports Thunderbolt 3 data throughput up to 40 Gbps and DisplayPort 1.4 video output, enabling dual 4K60 Hz displays or a single 8K30 Hz/4K144 Hz video configuration. It also integrates dual M.2 PCIe NVMe SSD slots, allowing users to add two M.2 storage drives directly to the dock for additional high‑speed storage and accelerated data workflows.

On the connectivity front, the JU‑DK0K11‑S1 offers a combination of USB‑C and USB‑A ports at both Gen2 and Gen1 speeds, a Gigabit Ethernet port for reliable network access, SD‑UHS‑II memory card reader support, and audio/microphone interfaces for unified communications. The docking station also provides up to 87 W Power Delivery to charge laptops and devices via the host Thunderbolt 3 connection.

It is suitable for professional office desktops, hot‑desking stations, and creative workstations requiring external SSD storage options alongside expanded I/O. It is not designed for internal expansion of PCIe cards or as a primary network switch or server storage node.

Technical Specifications
