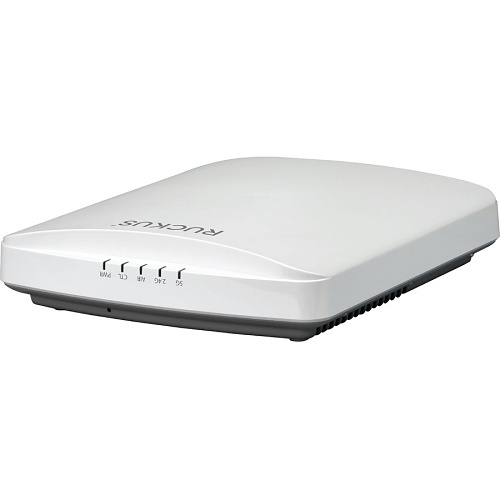

RUCKUS 9U1-R650-WW00 Unleashed R650 Dual-Band Wi-Fi 6 Wireless Access Point
Wi-Fi 6 access point with 2.5GbE backhaul, 512-client capacity, and IoT support
Please fill the form to get price quote.
RUCKUS 9U1-R650-WW00 Unleashed R650 dual-band 802.11abgn Wireless Access Point with Multi-Gigabit Ethernet
Overview :
Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications. The R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4×4:4 in 5GHz, 2×2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity. The R650 has built-in IoT radios with onboard Bluetooth® Low Energy and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
Specifications:
| Specification | Details |
|---|---|
| Part Number | 9U1-R650-WW00 |
| Brand | Ruckus |
| Product Type | Wireless Access Point |
| Product Series | Unleashed R650 |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Bands | 2.4 GHz (2×2:2) / 5 GHz (4×4:4) |
| Maximum Data Rate | 2.4Gbps (574 Mbps @2.4GHz + 2400 Mbps @5GHz) |
| Ethernet Ports | 1x 2.5GbE RJ-45, 1x 1GbE RJ-45 |
| PoE Support | Yes (802.3af/at) |
| Security | WPA3, WPA2, Dynamic PSK, OWE |
| Max Clients | 512 |
| Antenna | Internal, 3 dBi gain |
| Management | Web UI, CLI, Ruckus Cloud |
| IoT Integration | Bluetooth Low Energy (BLE), Zigbee |
| Mounting | Desk, Ceiling, Wall |
| Dimensions | 194mm x 224mm x 47mm |
| Weight | 854g |
| Power Consumption | 21.59W (typical) |
| Operating Temp | 0°C to 50°C |
