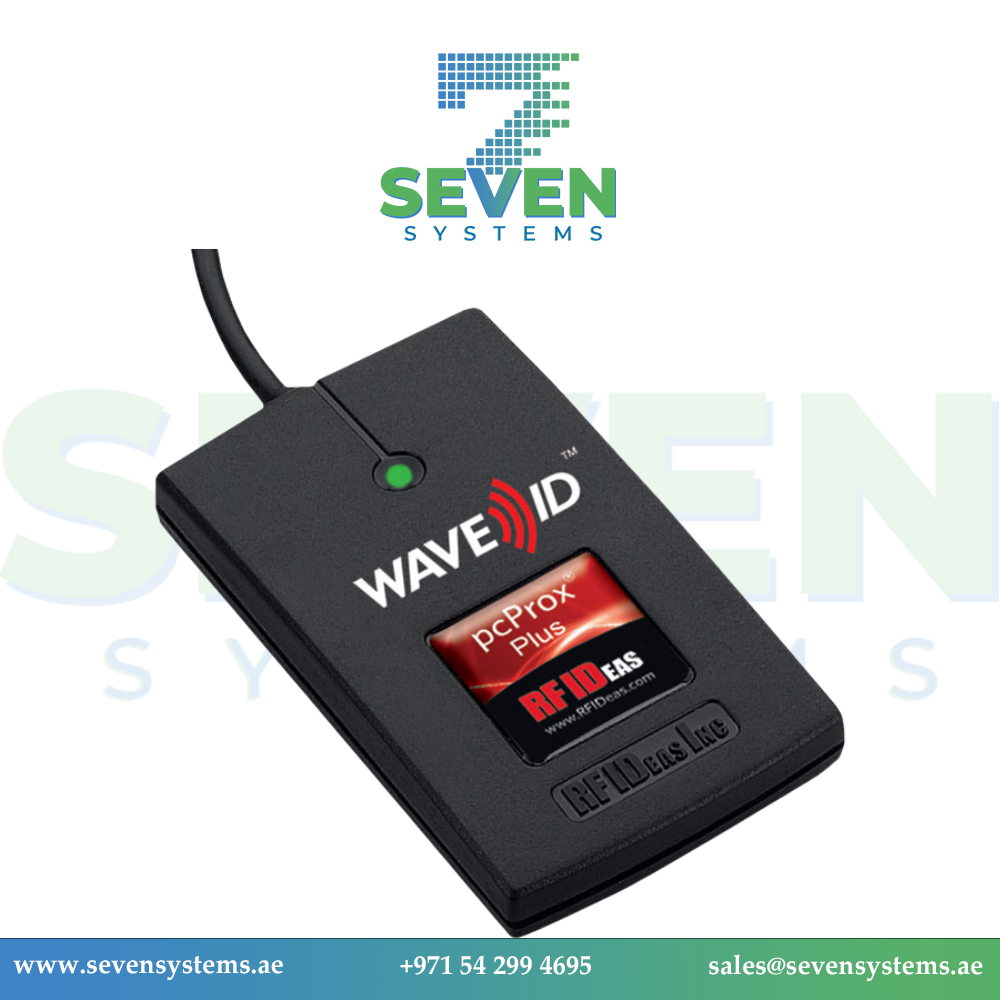

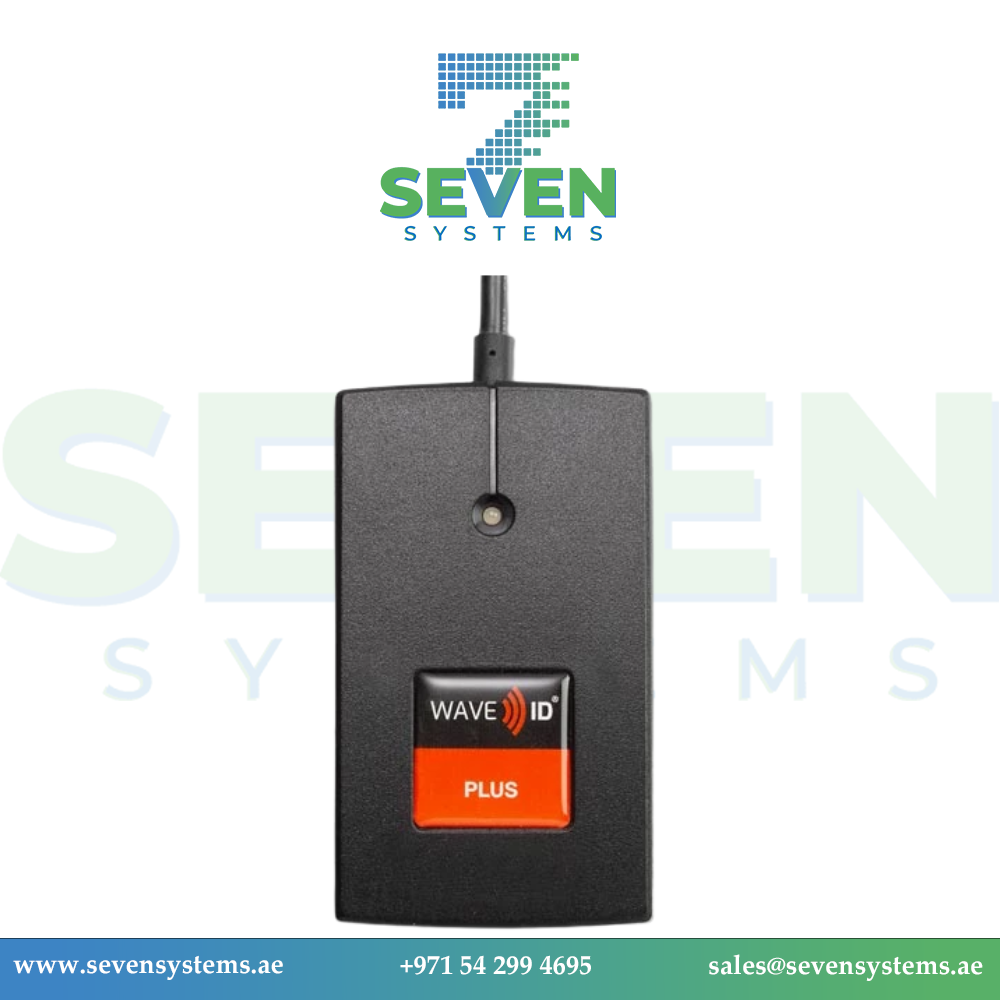

rf IDEAS RDR-7582AKU-C06 Wave ID Solo SDK CSN Black Reader 13.56 MHz USB RFID Reader
73.40 AED83.90 AED (-13%)
rf IDEAS
RDR-7582AKU-C06 Wave ID Solo SDK CSN Black Reader 13.56 MHz USB RFID Reader
The rf IDEAS Wave ID Solo SDK CSN (RDR‑7582AKU‑C06) is a highly versatile 13.56 MHz contactless RFID reader designed to read raw card serial numbers (CSNs). Engineered for seamless integration using its SDK, this reader communicates directly via USB virtual COM (no keystroke emulation), making it ideal for security-critical applications like SSO, time & attendance, and secure access. With a sleek black finish, a compact desktop form factor, and a six-inch cable, it fits perfectly on kiosks, point‑of‑sale systems, or workstation desks.
Features :
Built for developers and IT professionals, the Wave ID Solo SDK reader provides true plug-and-play functionality across Windows, macOS, Linux, and thin client platforms. It reads ISO 14443A/B and ISO 15693 CSNs from contactless smart cards (e.g., MIFARE, ISO DESFire, LEGIC)
Advanced Options :
Unlike keystroke readers, it delivers raw data via an SDK or ASCII protocol, enabling custom parsing, encryption, or integration within enterprise-grade software. LED indicators and an adjustable beeper ensure usability feedback, while its durable housing and USB-powered operation suit high-frequency environments .
Product Key Features
-
Reads 13.56 MHz contactless cards (ISO 14443A/B, 15693)
-
Outputs raw CSN via SDK over USB (virtual COM)
-

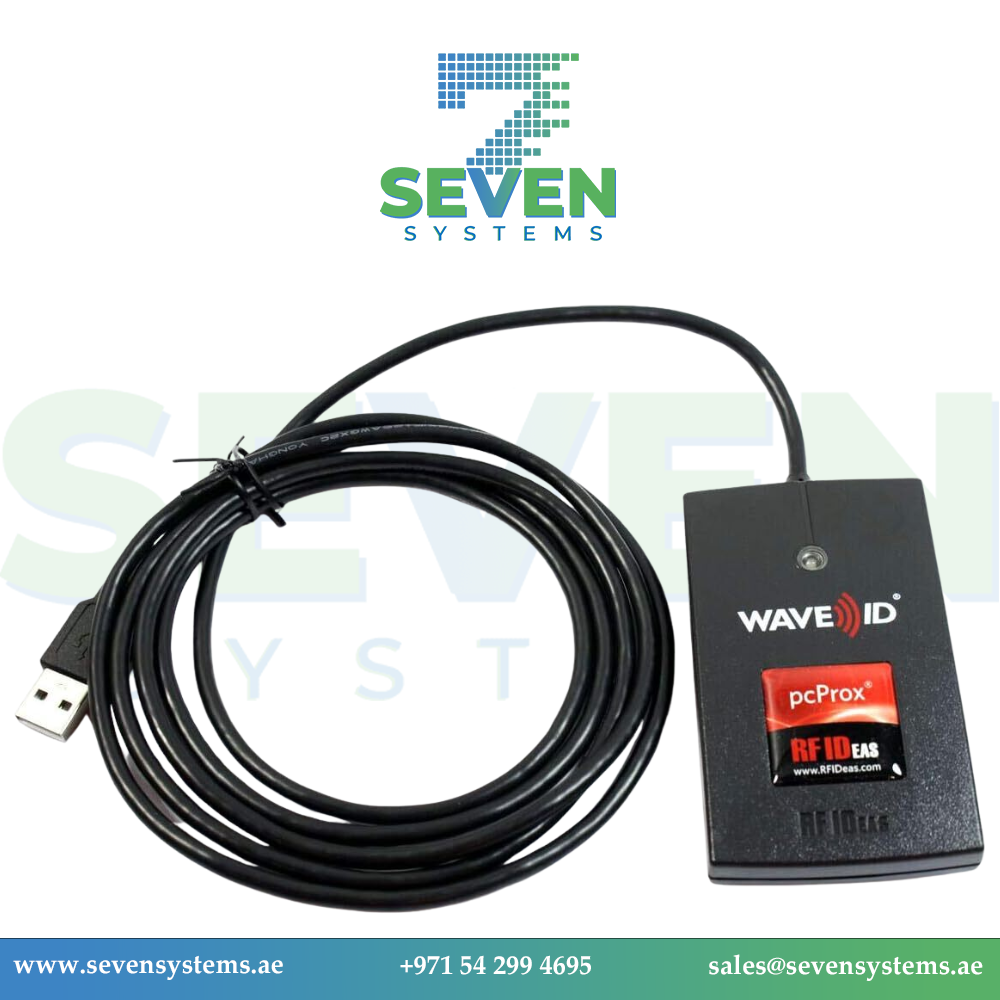

Compact desktop reader with 6-inch cable
-
LED feedback plus configurable tone indicators
-
Cross-platform support: Windows, macOS, Linux, thin clients
-
RoHS/REACH certified, FCC/CE/RU/RCM compliant
Reliability & Performance :
Engineered for durability, the Wave ID Solo supports frequent card reads without degradation. It consumes only ~70–100 mA power, fully driven via USB, and features LED/beeper controls for interactive error handling or user confirmation. Its SDK allows direct control and robust integration into managed applications, reducing reliance on keyboard inputs and improving security posture. With an operating temperature range of –30° to +65 °C and humidity tolerance to 95% non-condensing, it performs reliably in most office or kiosk scenarios .
Key Features :
-
SDK-based raw CSN transmission via USB
-
Reads MIFARE, iCLASS, NFC, LEGIC, and other CSN-compliant cards
-
Fully configurable reader (LED/beeper)
-
USB-powered; no external power required
-
Desktop footprint: 3.4″ × 2″ × 0.6″, lightweight (~113 g)
-
High durability, suitable for continuous-use environments
Specifications:
| Specification | Details |
|---|---|
| Model Number | RDR‑7582AKU‑C06 (Wave ID Solo SDK CSN) |
| Product Type | SDK-based 13.56 MHz USB RFID Reader |
| Interface | USB 2.0 (virtual COM) |
| Card Standards Supported | ISO 14443A/B, ISO 15693 |
| CSN Output Type | Raw serial number via SDK |
| Read Range | Approx. 1″–3″ (2.5–7.6 cm), card-dependent |
| Form Factor | Desktop reader; 6″ USB cable |
| Indicators | Quad-state LED; adjustable beeper |
| Power | USB-powered, ~70–100 mA |
| OS Compatibility | Windows, macOS, Linux, Unix, Thin Clients |
| Operating Temp Range | –30 °C to +65 °C (–22° to +150 °F) |
| Storage Temp Range | –40 °C to +85 °C |
| Dimensions (W×D×H) | 3.4″ × 2″ × 0.6″ (8.6 × 5.1 × 1.5 cm) |
| Weight | ~4 oz (113 g) |
| Certifications | FCC, CE, IC, RCM; RoHS, REACH |
| Warranty | 1 Year |
Additional information
| Weight | 0.113 kg |
|---|---|
| Dimensions | 5.08 × 8.57 × 1.52 cm |
