Plugable USBC-SATA-V USB‑C SATA Vertical Hard Drive Dock
219.09 AED230.90 AED (-5%)
Key Features :
• USB 3.1 Gen 2 interface up to 10 Gbps
• Supports 2.5" and 3.5" SATA HDD/SSD
• UASP and BOT protocols for efficient transfer
• Hot‑swap vertical dock design
• Plug‑and‑play with Windows, macOS, Linux
Plugable USBC-SATA-V USB‑C SATA Vertical Hard Drive Dock – In Dubai
Overview :
The Plugable USBC-SATA-V is a USB‑C SATA vertical hard drive docking station designed to provide direct access to standard 2.5‑inch and 3.5‑inch SATA HDDs and SSDs from host computers. It is typically deployed by IT technicians, system integrators, and data recovery professionals for quick drive access, cloning, and backup tasks without needing internal drive mounts or enclosures.
This dock supports USB 3.1 Gen 2 host connections, delivering up to 10 Gbps bandwidth when connected to a compatible USB‑C or Thunderbolt port. The internal SATA III interface supports up to 6 Gbps drive performance, and the unit uses the ASM1351 bridge chipset with support for USB Attached SCSI Protocol (UASP) and Bulk‑Only Transport (BOT) for efficient data transfer.

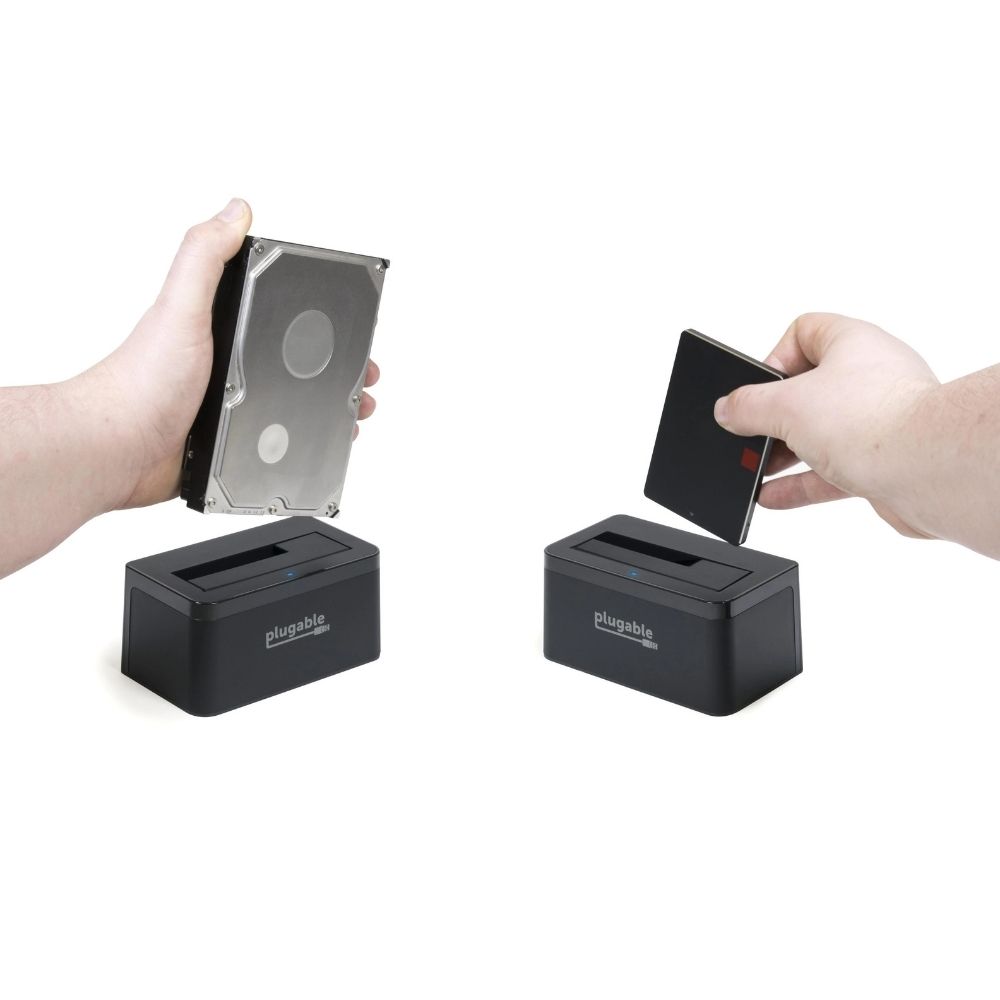

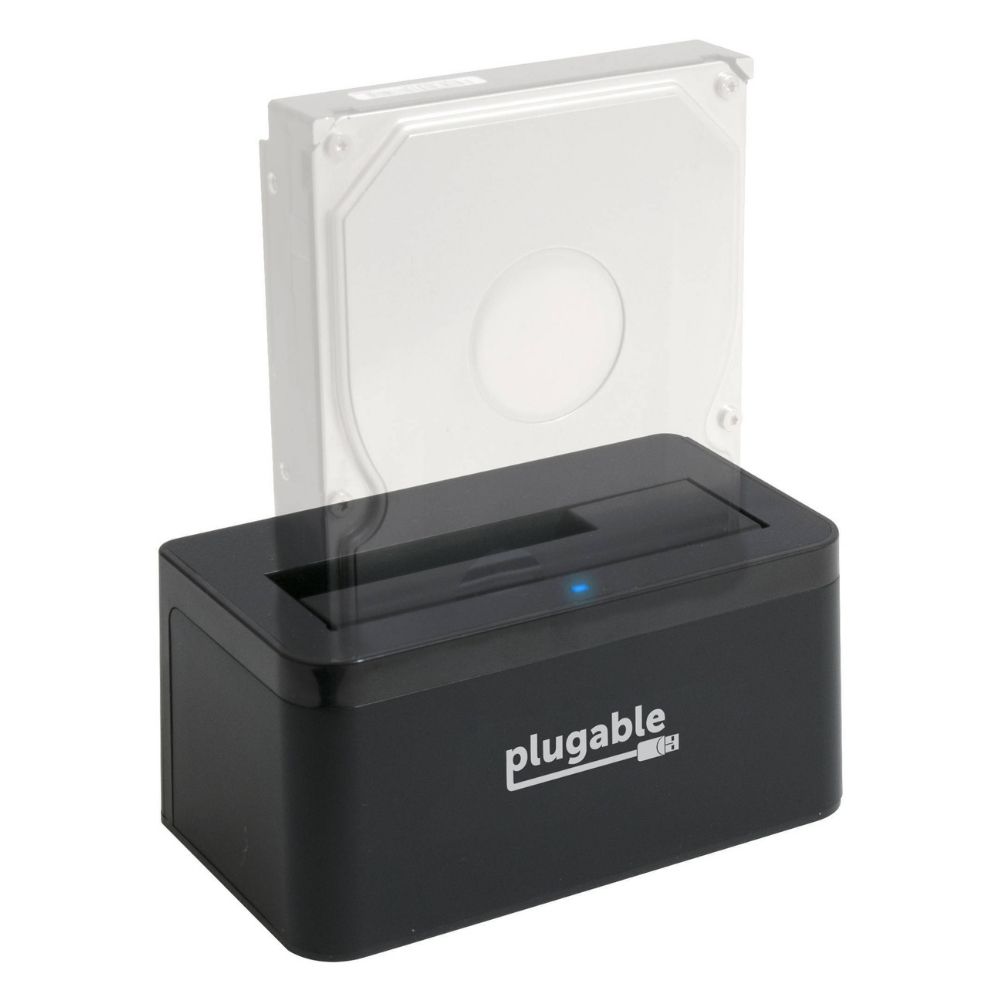

The upright vertical design offers a single‑bay hot‑swap docking slot that accepts bare SATA drives tool‑free. This makes it suitable for IT labs, service desks, and field environments where drives are frequently inserted and removed for data imaging, recovery, or replication tasks.
Integration is straightforward with plug‑and‑play support across Windows, macOS, and Linux operating systems without requiring additional drivers. Dual USB cables (USB‑C to USB‑C and USB‑C to USB‑A) are included to ensure compatibility with both modern and legacy systems.
In practical deployment, the USBC‑SATA‑V is used to access internal SATA drives for data transfer, diagnostics, and capacity testing. It is not intended as a permanent storage solution for everyday external drive use or environments where RAID or multi‑bay management is required.
Typical Deployment Scenarios :
• Quick access to internal SATA drives for data recovery
• Disk imaging and OS cloning workflows
• Backup operations using bare hard drives
• IT lab environments with frequent drive swapping
• Field support for drive diagnostics and testing
Technical Specifications :
| Specification | Details |
|---|---|
| Brand | Plugable Technologies |
| Part Number | USBC-SATA-V |
| Product Type | USB‑C SATA Hard Drive Dock |
| Interface | USB 3.1 Gen 2 (up to 10 Gbps) |
| Drive Support | 2.5″ and 3.5″ SATA HDD/SSD |
| SATA Standard | SATA I/II/III (up to 6 Gbps) |
| UASP Support | Yes |
| Protocols | USB Attached SCSI (UASP), BOT |
| Hot Swap | Supported |
| OS Compatibility | Windows, macOS, Linux |
| Cables Included | USB‑C to USB‑C, USB‑C to USB‑A |
| Power Supply | 12V 3A external adapter |
| Form Factor | Vertical open dock |
| Use Case | Drive access, cloning, data transfer |
Compatibility / Ecosystem :
• Works with USB‑C and Thunderbolt host ports
• Compatible with SATA I/II/III HDDs and SSDs
• Plug‑and‑play support for Windows, macOS, and Linux
• Supports UASP for improved throughput
Additional information
| Weight | 0.306 kg |
|---|---|
| Dimensions | 7.5 × 14 × 6.5 cm |
