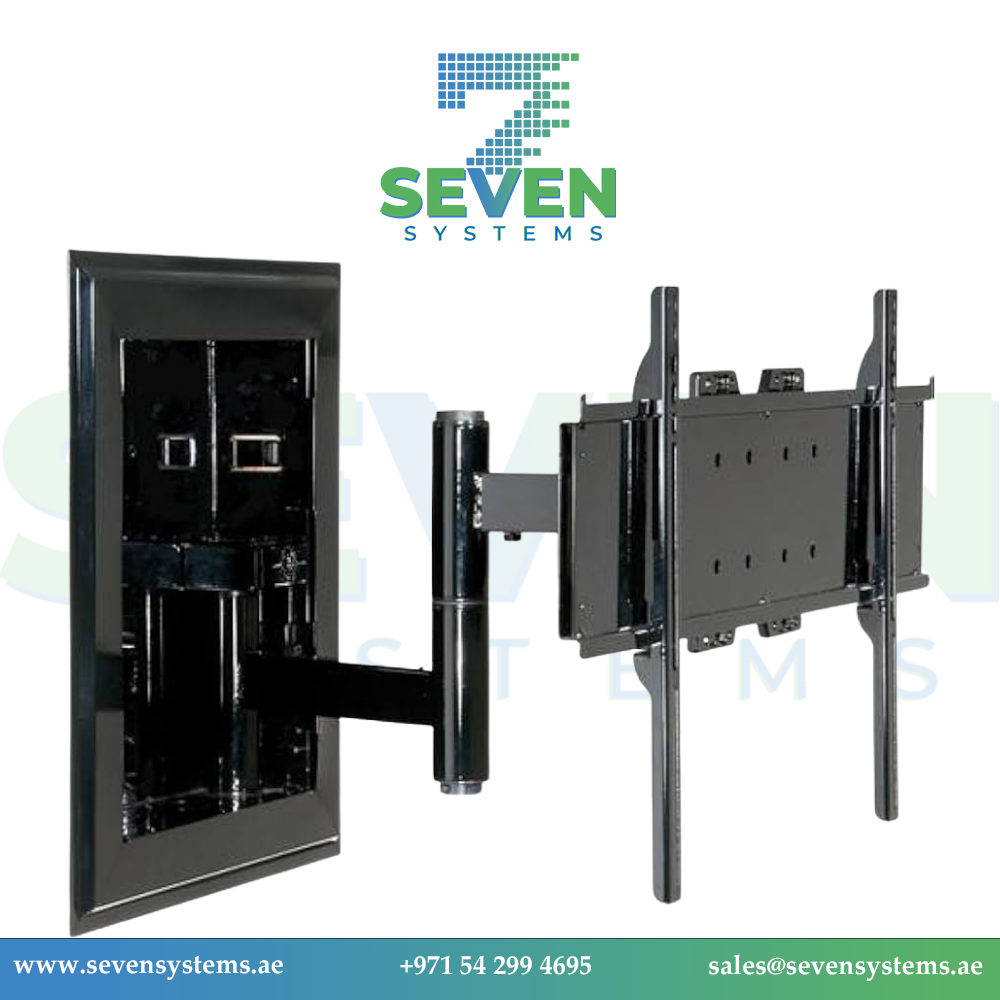

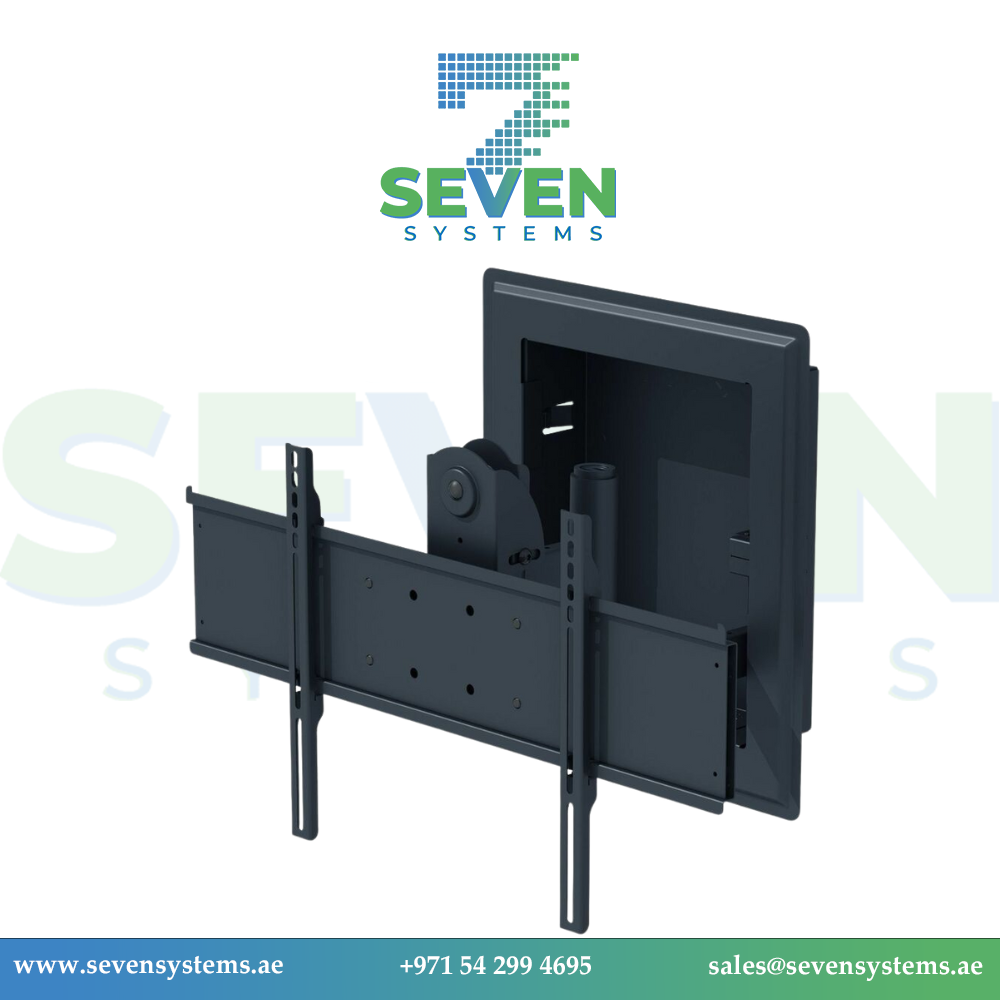

Peerless‑AV IM760PU In‑Wall Mount (Black) – for 32″–60″ Flat‑Screen Displays – Universal Articulating Arm

239.40 AED257.25 AED (-7%)

In stock

SKU: IM760PU Category: Tag: Brand:

Peerless‑AV

IM760PU In‑Wall Mount (Black) – for 32″–60″ Flat‑Screen Displays

The Peerless‑AV IM760PU (Black) is an industry-leading in-wall mounting system tailored for sleek, space-saving installations of 32″ to 60″ flat‑screen displays. Designed for both residential and commercial environments, the mount installs neatly between standard 16″ stud centers, positioning the display virtually flush against the wall. With a robust swing-out arm offering up to 19″ extension, swivel, tilt, and roll, this mount balances clean aesthetics with ergonomic viewing flexibility. Whether for home theaters, meeting rooms, or hospitality displays, it combines elegance, strength, and refined engineering in one premium package.

Features :

Constructed from heavy-duty steel with a scratch-resistant fused epoxy finish, the IM760PU supports up to 200 lb (90 kg) and accommodates VESA patterns up to 730 × 433 mm. Its self-locating stud-tabs allow precise mounting between wall studs, and once installed, the swing arm extends up to 19″ (480 mm) while offering ±45° swivel, +10°/–5° tilt, and ±7° roll for optimal viewing angles. The universal adapter plate makes it compatible with nearly all large-screen TVs, and a decorative trim ring conceals cables and hardware for a built-in look.

Advanced Options :

The mount includes features for professional installations: removable gang-box and cable-access plates simplify wiring, and the black finish harmonizes with dark interior schemes. With a tight retraction of just 0.4″ (11 mm) from the wall, the TV is hidden when not in use, yet readily swings into position when needed—ideal for ultra-clean, modern setups.

Product Key Features

  • In-wall flush mount for 32″–60″ (up to 71″) displays

  • Supports 200 lb load capacity

  • Universal VESA support up to 730 × 433 mm

  • 19″ swing arm with swivel, tilt, roll adjustments

  • Self-aligning stud tabs for 16″ centers with ±¼″ adjustment

  • Includes cable management plates and trim ring

  • Steel construction with epoxy finish in black

  • Covered by a 5‑Year warranty


Reliability & Performance :

Engineered for professional-grade installs, the IM760PU delivers a secure, smooth-operating swing arm that maintains consistent tension and stability over thousands of cycles. Its flush-in-home position exhibits minimal wall protrusion (11 mm), ensuring a polished look. The design’s structural integrity frequently surpasses wall strength, supporting heavy screens confidently. Installation is made safe and clean with stud-locating tabs and cable-access features, while the epoxy finish resists impacts and scratches. This rugged build, along with full articulation and cable concealment, ensures longevity and elegance in high-use environments.

Key Features :

  • 200 lb capacity

  • 19″ extension, ±45° swivel, +10°/–5° tilt, ±7° roll

  • Universal VESA mount pattern

  • Flush retracted profile of 0.4″

  • Cable access & decorative trim included

  • Steel frame, fused epoxy, black finish

  • Fast 16″ stud installation tabs

  • 5‑Year manufacturer’s warranty

Specifications:

Specification Details
Model Number IM760PU (Black)
Screen Size Support 32″–60″ (also fits up to 71″)
Load Capacity 200 lb / 90 kg
Wall Profile (Retracted) ≈ 0.4″ / 11 mm
Extension (Max) 19″ / 480 mm
Swivel ±45°
Tilt +10° / –5°
Roll ±7°
VESA Compatibility Up to 730 × 433 mm (approx. 400×400)
Stud Center Fit Standard 16″ with ±¼″ adjustment
Material/Finish Steel with fused epoxy (black)
Cable Management In-wall plates + trim ring
Dimensions (H×W×D) 21.9″×30.75″×0.4–19″
Weight 45.4 lb / 20.6 kg
Warranty 5 years

Additional information

Weight 0.151 kg
Dimensions 14.1 × 78 × 55.5 cm
