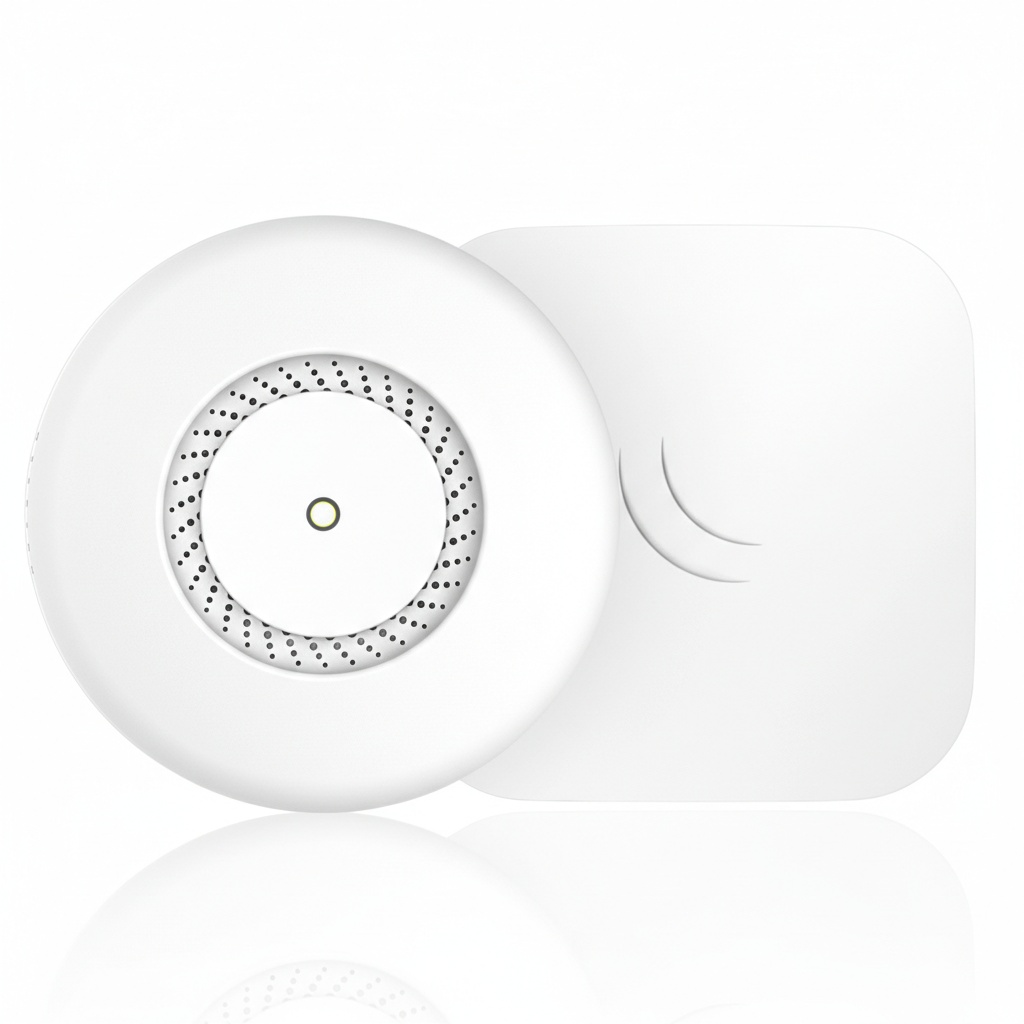

MikroTik RBCAPGI-5ACD2ND-US Dual-Band 802.11ac Ceiling Access Point

  • Brand: Mikrotik
  • SKU: RBCAPGI-5ACD2ND-US
RBCAPGI-5ACD2ND-US
Roll over image to zoom in
Click to open expanded view

In stock

Key Features

Dual-band 2.4/5GHz concurrent wireless operation.

Two Gigabit Ethernet ports with PoE-in and PoE-out.

Quad-core 716 MHz CPU for advanced RouterOS tasks.

Includes both round and square low-profile cases.

Please fill the form to get price quote.

SKU: RBCAPGI-5ACD2ND-US Category: Tags: , , , , , , , Brand:

MikroTik RBCAPGI-5ACD2ND-US Dual-Band 802.11ac Ceiling Access Point

Overview

The MikroTik RBCAPGI-5ACD2ND-US, commonly known as the cAP ac, is a high-performance ceiling-mount access point designed for enterprise environments requiring discreet aesthetics and robust wireless coverage. Operating on both 2.4 GHz and 5 GHz bands simultaneously, this unit leverages the 802.11ac standard to provide reliable connectivity in high-density scenarios such as office campuses, hospitality venues, and retail spaces. Engineered with a quad-core 716 MHz CPU and 128 MB of RAM, the cAP ac handles complex traffic shaping and firewall rules via RouterOS. A standout feature for infrastructure engineers is the dual Gigabit Ethernet ports; the first port supports 802.3af/at PoE input, while the second port provides passive PoE output, enabling the daisy-chaining of additional network devices like IP cameras or secondary APs without extra power runs.
The US-specific model ensures regulatory compliance with FCC frequency locks. Its low-profile design includes both round and square chassis options, allowing it to blend into various architectural styles while maintaining superior signal propagation through its integrated 360-degree omnidirectional antennas. Integration with MikroTik’s CAPsMAN central management system simplifies large-scale deployments, providing a unified control plane for wireless networks.

Specifications

Brand MikroTik
Part Number RBCAPGI-5ACD2ND-US
Product Type Wireless Access Point
CPU IPQ-4018 Quad-core 716 MHz
RAM 128 MB
Ethernet 2x 10/100/1000 Mbps Ports
Wireless 802.11a/b/g/n/ac Dual-Chain
Antenna Gain 2 dBi (2.4 GHz), 2.5 dBi (5 GHz)
PoE Input 802.3af/at (17–57 V)
PoE Output Passive PoE up to 57 V (Port 2)
Max Power Consumption 13 W (without attachments)
Operating System RouterOS License Level 4
Dimensions Round: 136 x 30 mm; Square: 145 x 145 x 30 mm
Operating Temp -40°C to +70°C

Frequently Asked Questions

Does this unit support centralized management?

Yes, the cAP ac is fully compatible with MikroTik’s CAPsMAN (Controlled Access Point Manager), allowing you to manage multiple APs from a single RouterOS device without additional licensing costs.

Can I power another device using this access point?

Yes, the second Ethernet port supports passive PoE output. It can provide power to another device (like a camera or another AP) as long as the input voltage matches the requirements of the downstream device.

What is the difference between the US and International versions?

The RBCAPGI-5ACD2ND-US is factory-locked to FCC-approved frequencies for the United States. This ensures regulatory compliance and cannot be bypassed by software configuration.

Are mounting brackets included in the box?

Yes, the package includes mounting brackets and hardware for both the round and square chassis options, suitable for ceiling or wall installation.

Additional information

Weight 0.16 kg
Dimensions 8.2 × 11.7 × 2.1 cm
Brand

Mikrotik
