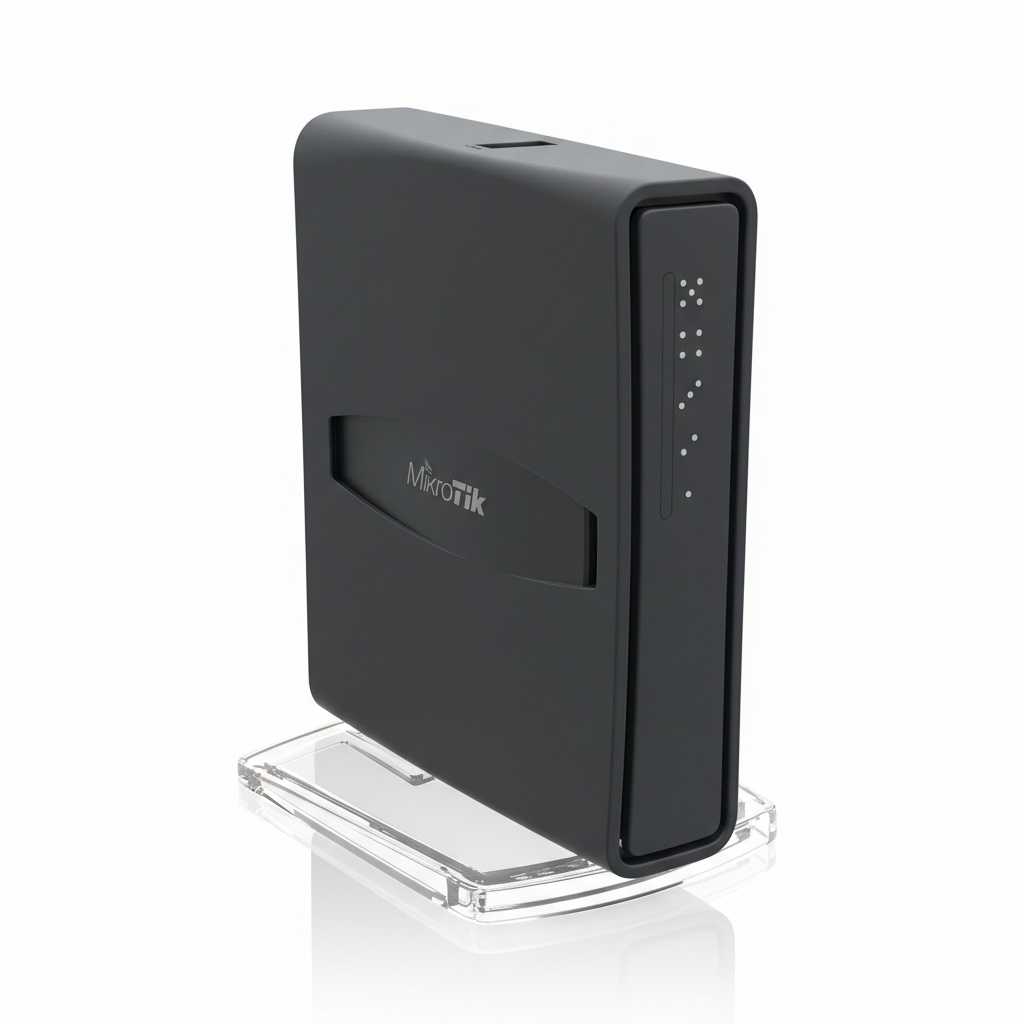

MikroTik RB952Ui-5AC2ND-TC-US Dual-Band 802.11ac Wireless Router

  • Brand: Mikrotik
  • SKU: RB952UI-5AC2ND-TC-US
RB952Ui-5AC2ND-TC-US
RB952Ui-5AC2ND-TC-US
Roll over image to zoom in
Click to open expanded view

In stock

Key Features

Dual-concurrent 2.4 GHz and 5 GHz 802.11ac wireless.

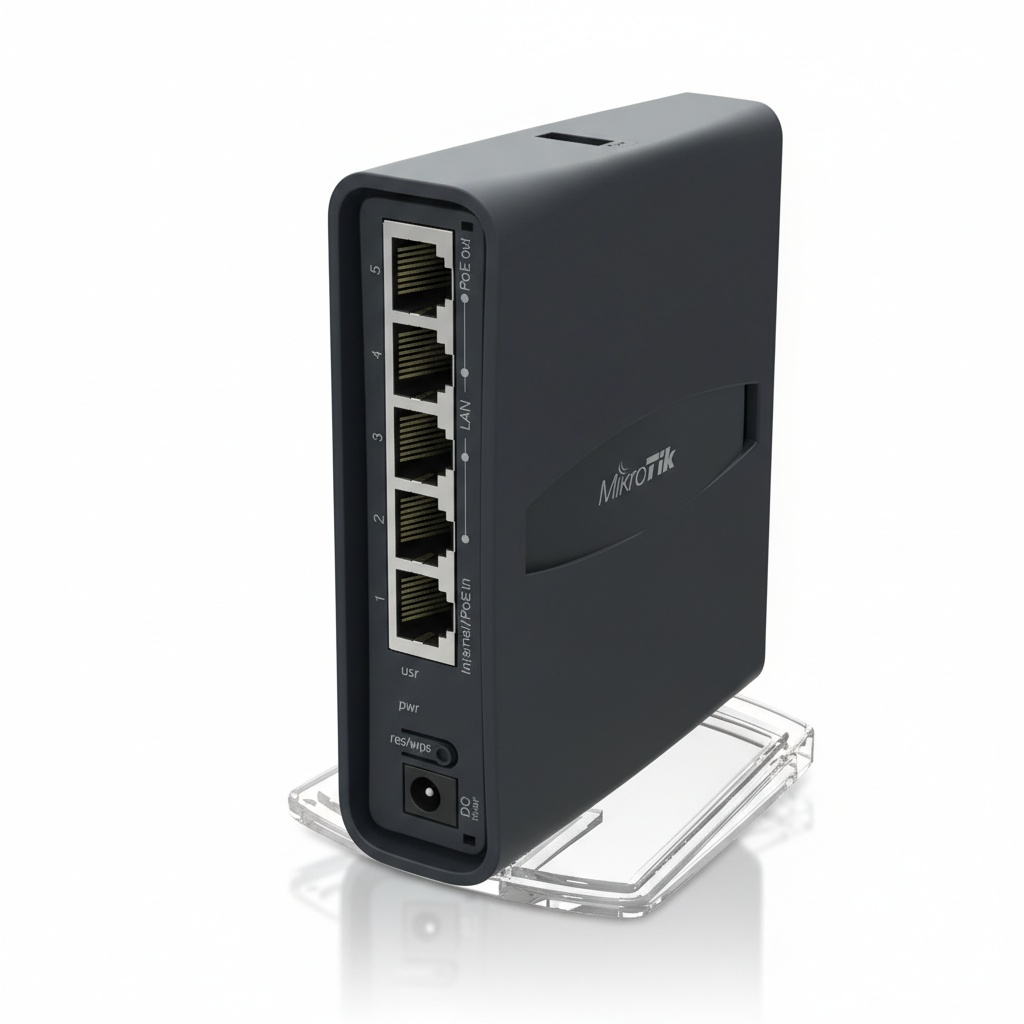

Integrated Passive PoE output on Ethernet port 5.

Universal tower case for vertical or horizontal mounting.

USB 2.0 port for 3G/4G modem support and WAN redundancy.

Please fill the form to get price quote.

SKU: RB952UI-5AC2ND-TC-US Category: Tags: , , , , , , , Brand:

MikroTik RB952Ui-5AC2ND-TC-US Dual-Band 802.11ac Wireless Router

Overview

The MikroTik RB952Ui-5AC2ND-TC-US, commercially known as the hAP ac lite TC, is a compact dual-concurrent access point designed for small office, home office (SOHO), and remote branch environments. This unit provides simultaneous coverage for both 2.4 GHz and 5 GHz frequencies, ensuring compatibility with legacy devices while delivering the speed advantages of the 802.11ac standard. The “TC” designation indicates a universal tower case, which allows the device to be positioned vertically or horizontally to accommodate limited desk space or specific aesthetic requirements. Engineered for versatility at the network edge, the device is powered by a 650 MHz CPU and 64 MB of RAM, running the robust RouterOS (License Level 4).
This allows for advanced networking tasks such as VPN termination, sophisticated firewalling, and bandwidth shaping. A significant hardware feature is the Passive PoE output on Ethernet port 5, capable of powering an additional PoE-compatible device, such as a wireless CPE or a VoIP phone, reducing cable clutter. Furthermore, an integrated USB 2.0 port supports 3G/4G modems for WAN redundancy. This US-specific model is factory-locked to FCC-approved frequencies to ensure regulatory compliance for North American deployments.

Specifications

Brand MikroTik
Part Number RB952Ui-5AC2ND-TC-US
Product Type Wireless Router
CPU QCA9531 650 MHz
RAM 64 MB
Storage 16 MB Flash
Ethernet Ports 5x 10/100 Mbps RJ45 Ports
Wireless Standards 802.11a/n/ac (5GHz), 802.11b/g/n (2.4GHz)
Max Wireless Rate 433 Mbps (5GHz), 300 Mbps (2.4GHz)
PoE In Passive PoE (10V – 30V)
PoE Out Passive PoE on Port 5 (Max 500mA)
USB Slot 1x USB Type A 2.0
Operating System RouterOS (License Level 4)
Dimensions 34 x 119 x 98 mm
Operating Temperature -30°C to +70°C

Frequently Asked Questions

Does this router support Gigabit Ethernet speeds?

No, the RB952Ui-5AC2ND-TC-US is equipped with five 10/100 Mbps Ethernet ports. It is designed for environments where high-speed internal switching is less critical than dual-band wireless connectivity and RouterOS features.

Can I power another device directly from this router?

Yes, Ethernet port 5 supports Passive PoE output. It can provide power to another device (such as a MikroTik SXT) as long as the device accepts the same voltage being supplied to the router, with a maximum current of 500mA.

What is the difference between the “TC” version and the standard hAP ac lite?

The “TC” stands for Tower Case. While the internal hardware is identical to the standard RB952Ui-5AC2ND, the TC version features a universal enclosure that allows for vertical or horizontal orientation, whereas the standard version is a flat desktop design.

Additional information

Weight 0.15 kg
Dimensions 8.0 × 11.5 × 2.0 cm
Brand

Mikrotik
