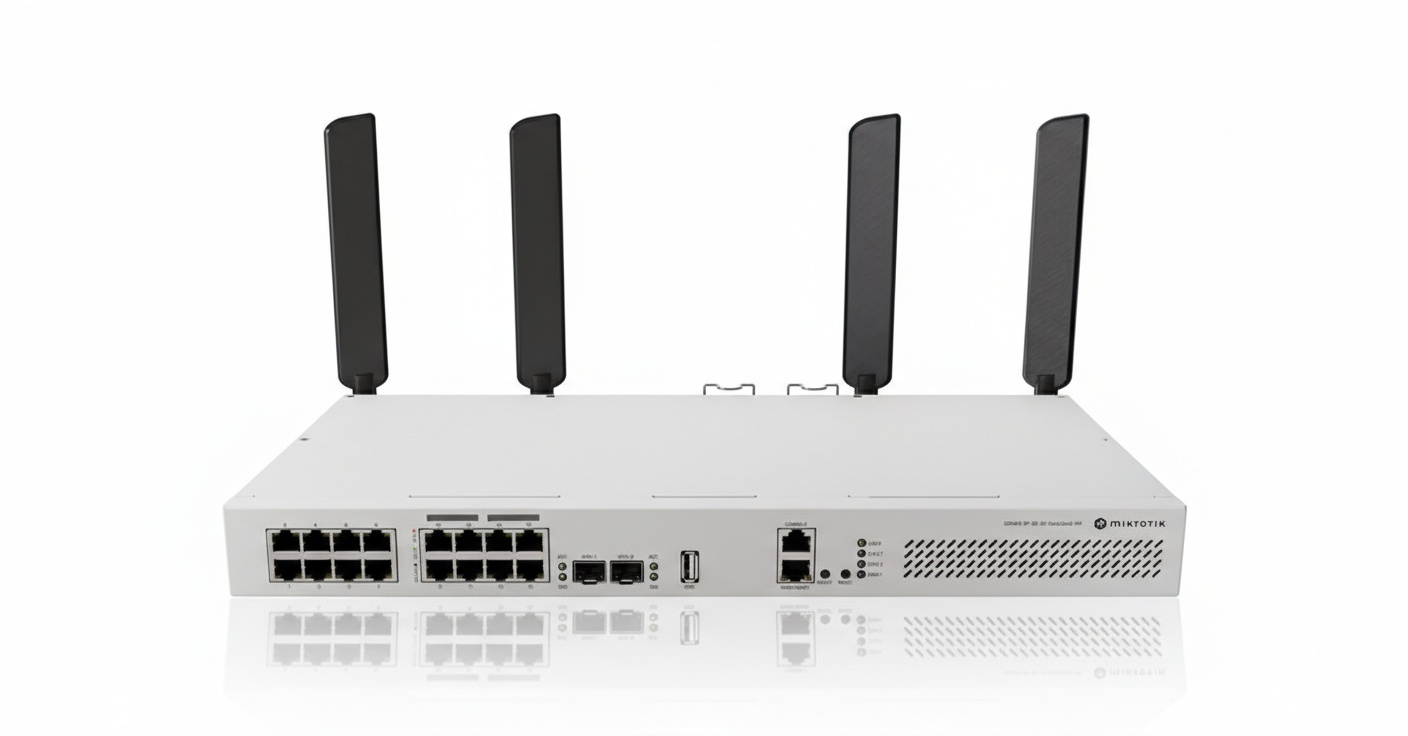

Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM-US – Wi-Fi 6 PoE+ Cloud Router Ethernet Switch

  • Brand: Mikrotik
  • SKU: CRS418-8P-8G-2S+5axQ2axQ-RM-US
CRS418-8P-8G-2S+5axQ2axQ-RM-US
Roll over image to zoom in
Click to open expanded view

In stock

Key Features

4x4 MIMO Wi-Fi 6 with 3600 Mbps aggregate throughput.

8x PoE-out ports with 150W total power budget.

Quad-core 2.2 GHz ARM CPU with L3 hardware offloading.

Dual-redundant AC power supplies for high availability.

Please fill the form to get price quote.

SKU: CRS418-8P-8G-2S+5axQ2axQ-RM-US Category: Tags: , , , , , , , Brand:

Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM-US  Wi-Fi 6 PoE+ Cloud Router Ethernet Switch

Overview

The Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM-US is a high-performance, all-in-one networking solution designed for small-to-medium offices, server rooms, and hybrid edge environments. This 1U rackmount device consolidates the roles of a Layer 3 managed switch, a powerful router, and a high-capacity Wi-Fi 6 access point into a single chassis. Powered by a quad-core 2.2 GHz ARM CPU and the Marvell 98DX226S switch chip, it supports Layer 3 hardware offloading, enabling wire-speed routing and VLAN management without taxing the processor.
Network administrators can leverage 16 Gigabit Ethernet ports, eight of which provide PoE-out (802.3af/at and 24V passive) with a 150W total budget to power IP cameras, VoIP phones, or additional access points. Two 10G SFP+ cages provide high-speed fiber uplinks for NAS or core network connectivity. Uniquely for a rackmount switch, it features integrated 4×4 MIMO Wi-Fi 6, delivering up to 3600 Mbps aggregate wireless throughput. With dual-redundant AC power supplies and RouterOS v7, the CRS418 ensures high availability and advanced control for complex networking tasks like traffic shaping, firewalling, and CAPsMAN orchestration.

Specifications

Brand Mikrotik
Part Number CRS418-8P-8G-2S+5axQ2axQ-RM-US
Product Type Wireless Cloud Router Switch
CPU IPQ-8072A Quad-core 2.2 GHz
RAM 1 GB DDR3L
Storage 128 MB NAND
Ethernet Ports 16x 10/100/1000 Mbps + 1x Management Port
SFP+ Ports 2x 10 Gbps SFP+ Cages
Wireless Standard 802.11ax (Wi-Fi 6) Dual-Band 4×4 MIMO
PoE-Out 802.3af/at & 24V Passive (Ports 9-16)
PoE Budget 150 W
Switching Capacity 74 Gbps (Non-blocking)
Power Input 2x AC 100-240 V
Operating System RouterOS v7 (License Level 5)
Dimensions 443 x 250 x 44 mm

Frequently Asked Questions

Does this switch support both passive PoE and 802.3af/at?

Yes, the eight PoE-out ports (Ether9-Ether16) support both 24V passive PoE and the 802.3af/at standards, making it compatible with a wide range of legacy and modern devices.

Can the Wi-Fi antennas be moved outside of a metal rack?

Yes, the chassis includes dedicated pigtail holes on the rear panel, allowing you to mount antennas externally if the unit is installed in a shielded metal enclosure.

What is the benefit of Layer 3 hardware offloading on this model?

L3 HW offloading allows the switch chip to handle routing tasks at wire speed, significantly reducing CPU load and increasing overall network throughput for inter-VLAN routing.

Is the power supply redundant?

Yes, the CRS418 features two independent AC power inputs (100-240V), providing hardware-level power redundancy for mission-critical deployments.

Additional information

Weight 2.0 kg
Dimensions 20.0 × 44.3 × 4.4 cm
Brand

Mikrotik
Be the first to review “Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM-US – Wi-Fi 6 PoE+ Cloud Router Ethernet Switch”

Your email address will not be published. Required fields are marked *

Reviews

There are no reviews yet.
