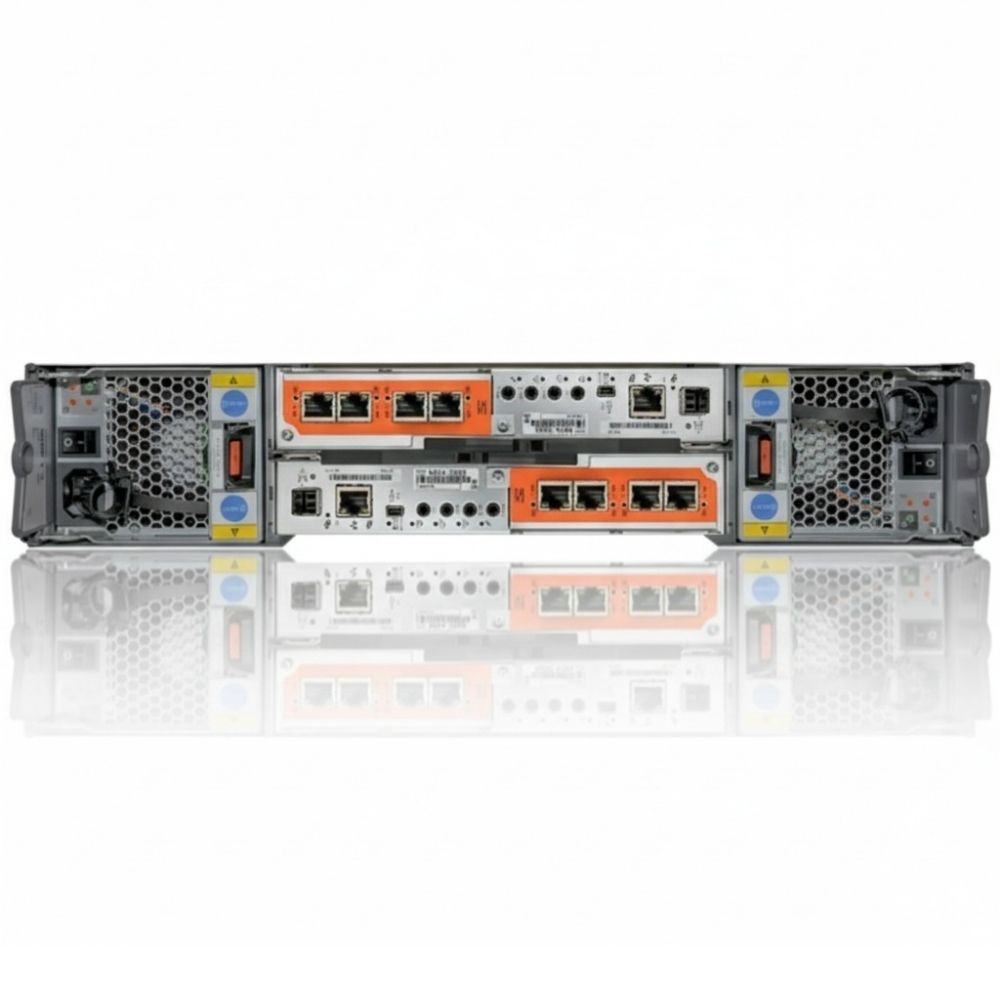

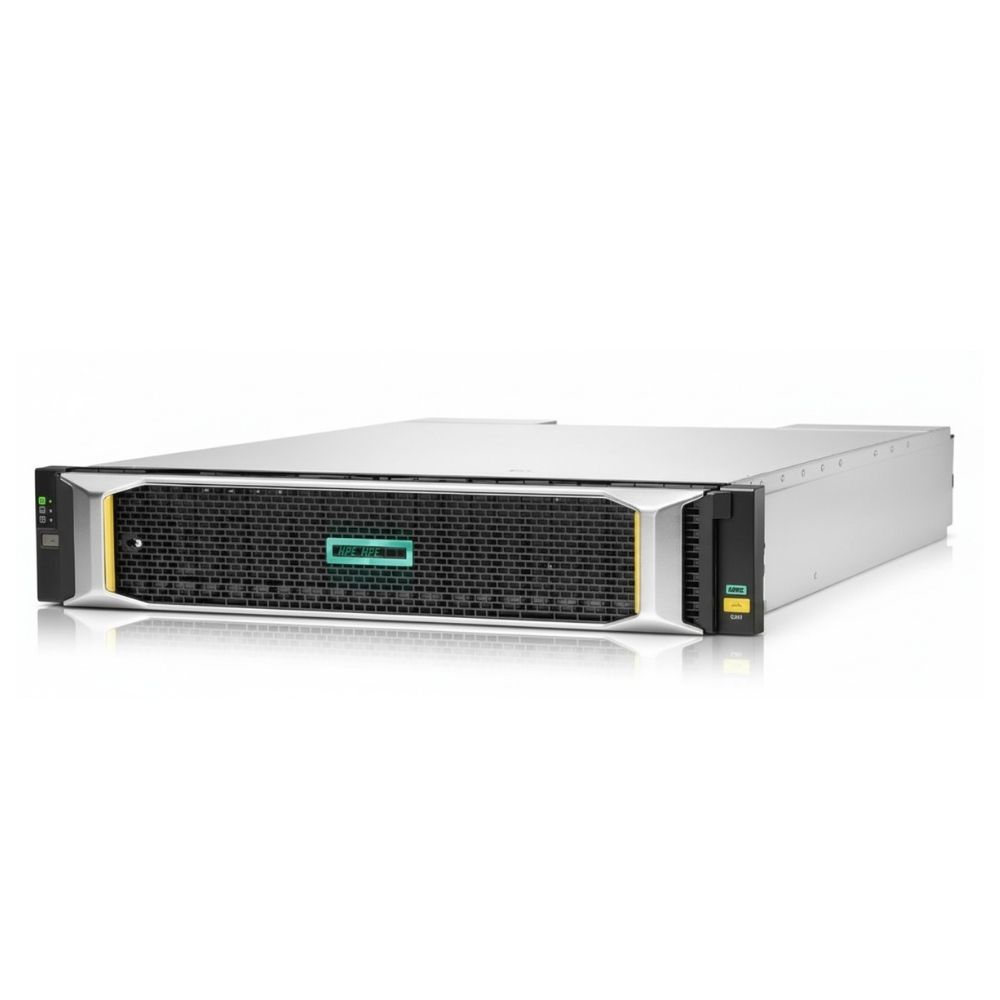

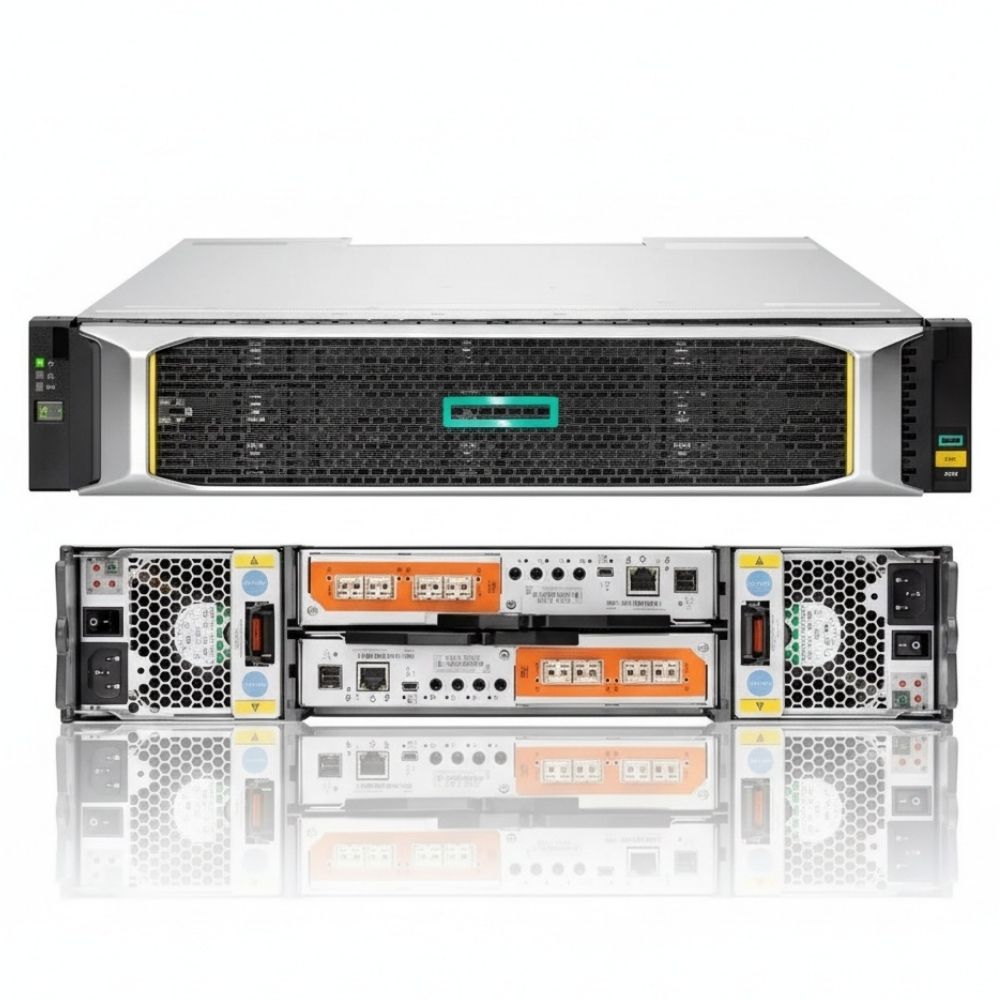

HPE R0Q80B MSA 2062 16Gb Fibre Channel SFF Storage
99,225.00 AED
Key Features:
• Dual 16 Gb Fibre Channel controllers with 8 host ports
• Installed 3.84 TB flash (2×1.92 TB SSD) base capacity
• 24×2.5″ SAS‑3 hot‑swap drive bays for scalable media
• Supports up to 9 expansion enclosures via SAS‑3
• Modular SAN storage with HPE MSA management tools
HPE R0Q80B MSA 2062 16Gb Fibre Channel SFF Storage – in Dubai:
Overview:
The HPE R0Q80B is a SAN storage array based on the MSA 2062 platform, designed for deployment by infrastructure and storage engineers in SMB and mid‑enterprise environments where simple block storage is required with high availability and scalability. It combines dual Fibre Channel controllers with flash‑enabled architecture to support mixed workloads and modular expansion.
It includes two 1.92 TB read‑intensive SSDs installed and front‑accessible 24×2.5″ SAS‑3 bays for additional SSDs or enterprise HDDs, enabling capacity scaling with a flexible choice of media. Up to 9 expansion enclosures are supported per array, allowing high drive counts and significant raw capacity growth.
The array supports 16 Gb Fibre Channel host connectivity (8 total host ports via two controllers) for SAN access, and integrates with HPE MSA firmware for basic snapshot, replication, and tiering data services.
This storage system occupies a standard 2U rackmount footprint and is suited for block storage tasks such as database, virtual server, and mixed application deployments that benefit from modular scalability and Fibre Channel connectivity.
It is not a standalone server or drive; rather, it is a SAN array that depends on external management and host connectivity to deliver storage services at the block level.
Typical Deployment Scenarios:
• Block storage for VM clusters over 16 Gb Fibre Channel fabrics
• Mixed SSD/HDD tiered storage in SMB SAN environments
• Primary SAN storage for business databases
• Scalable modular expansion with up to 9 enclosures
• Fibre Channel connected storage for application servers
Technical Specifications:
| Specification | Value |
|---|---|
| Brand | HPE |
| Part Number | R0Q80B |
| Product Type | SAN Storage Array |
| Model | MSA 2062 16Gb FC SFF |
| Installed Storage | 2×1.92 TB Read‑Intensive SSD |
| Drive Bays | 24×2.5″ SFF SAS‑3 |
| Expansion Bays Supported | Up to 9 drive enclosures |
| Raw Capacity Installed | 3.84 TB |
| Maximum Raw Capacity | ~917.76 TB SFF / ~2127.84 TB LFF |
| Controller Count | Dual Fibre Channel |
| Host Interface | 16 Gb Fibre Channel (8 ports) |
| SAS Expansion Ports | 12 Gb SAS |
| Cache Memory | ~24 GB per array |
| Form Factor | 2U Rackmount |
| Weight (Approx.) | ~11 lb (~5 kg) |
| Dimensions | ~3.5″ H × 17.5″ W × 20″ D |
| Supported Media | SSD, Enterprise SAS HDD, Midline SAS HDD |
Compatibility / Ecosystem:
- Rack Types: Standard 2U rackmount chassis
- Host Connectivity: 16 Gb Fibre Channel SAN fabrics
- Expansion Ecosystem: SAS‑3 expansion enclosures, up to 9 connected
- Management Ecosystem: HPE MSA firmware/management tools
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 50.8 × 44.5 × 8.9 cm |
| Brand | HPE |
