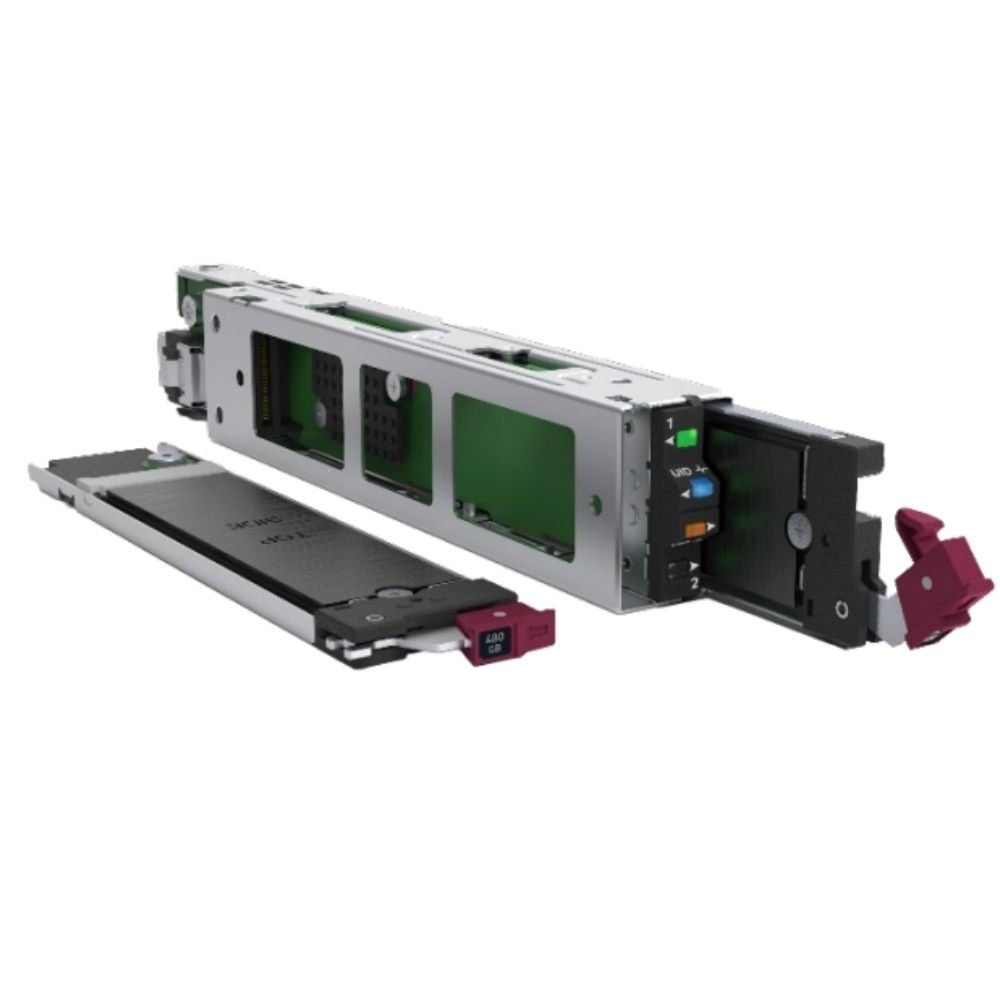

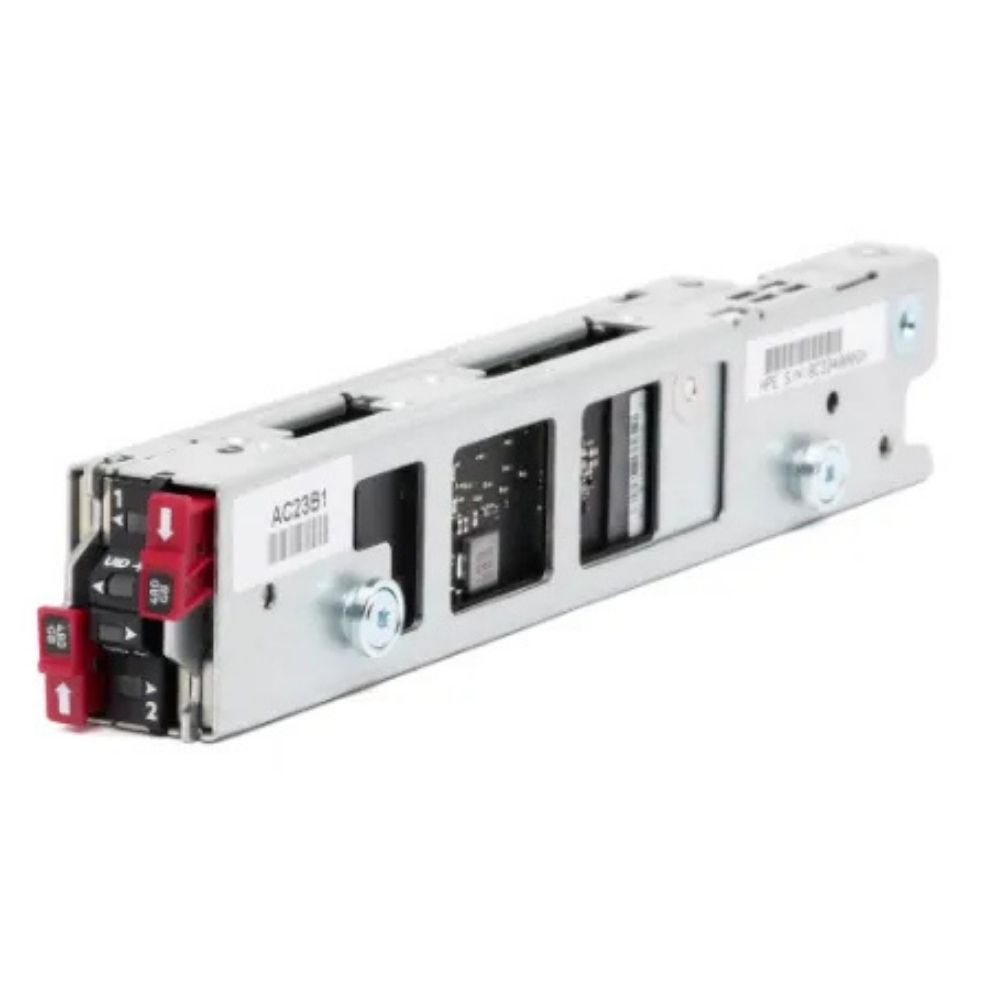

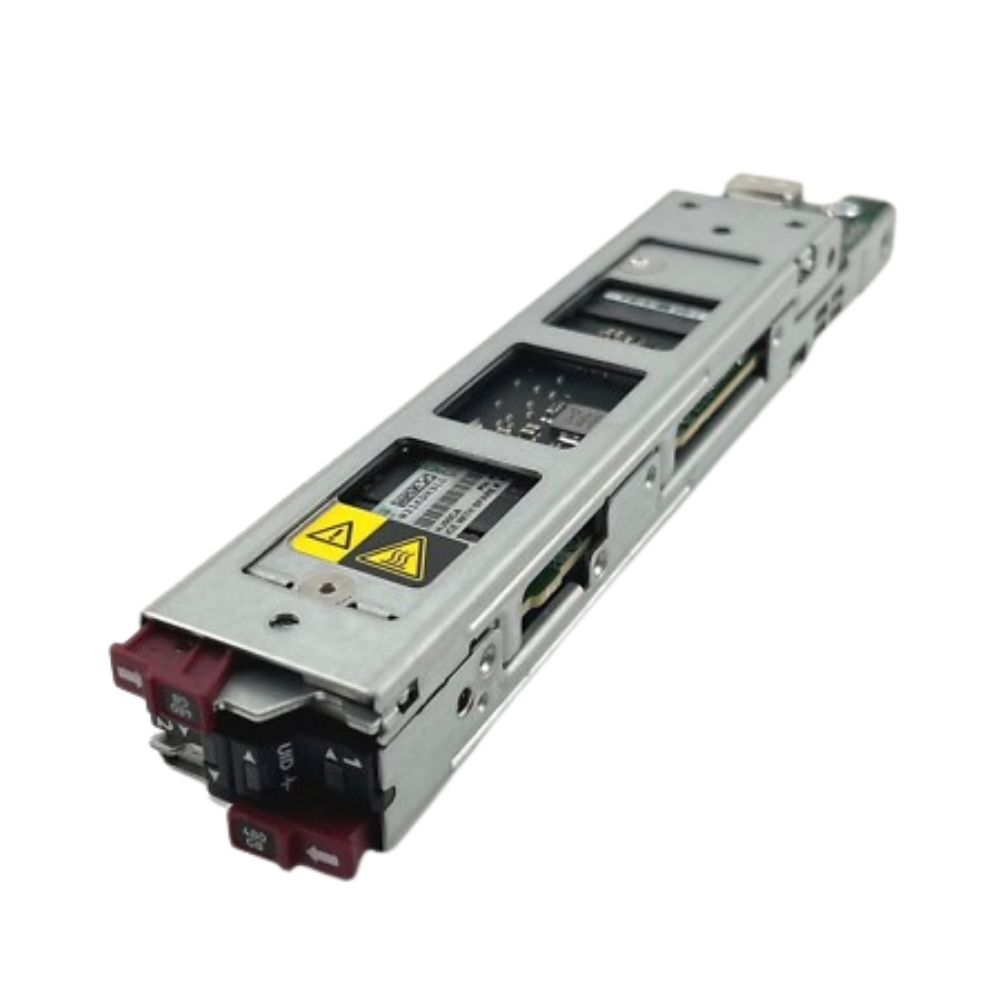

HPE P48183‑B21 NS204i‑u Gen11 NVMe Hot Plug Boot Device
11,751.87 AED11,760.00 AED (-0%)
Key Features:
• Dual 480 GB NVMe M.2 SSDs with hardware RAID‑1
• PCIe Gen3 NVMe boot interface
• Hot‑plug optimized OS boot module
• Monitored via HPE iLO and Redfish API
• Preserves main data drive bays for applications
HPE P48183‑B21 NS204i‑u Gen11 NVMe Hot Plug Boot Device – in Dubai:
Overview:
The HPE P48183‑B21 is a dedicated boot‑optimized storage device designed for HPE ProLiant Gen11 server platforms, delivering a preconfigured hardware RAID‑1 OS boot solution that isolates the operating system from application data storage. It is deployed by infrastructure engineers and system administrators to provide resilient, redundant OS boot without consuming standard drive bays.
This module includes two enterprise‑class 480 GB NVMe M.2 SSDs mirrored in hardware RAID‑1, enabling predictable boot availability and redundancy against single drive failure.
The NS204i‑u connects via PCIe Gen3 NVMe and installs in dedicated internal or hot‑plug slots on supported servers, preserving front‑bay data drives for primary storage use.
Monitoring and health visibility are available through HPE iLO and Redfish API integration, allowing administrators to observe SSD status and RAID health as part of server fleet operations.
Practical deployments include virtualization hosts and high‑availability compute nodes where OS boot failure would impact uptime; it is not suitable as a general data cache or shared storage tier because it is optimized exclusively for OS boot redundancy.
Typical Deployment Scenarios:
• Redundant OS boot device for HPE ProLiant Gen11 servers
• Boot storage for VMware ESXi clusters
• Edge compute nodes requiring isolated OS disks
• Rack servers with limited drive bay capacity
• Servers where OS load can’t impact primary data storage plane
Technical Specifications:
| Specification | Value |
|---|---|
| Brand | HPE |
| Part Number | P48183‑B21 |
| Product Type | Hot Plug Boot Optimized Storage Device |
| Usable Capacity | 480 GB (dual NVMe M.2 mirrored) |
| RAID Configuration | Hardware RAID‑1 |
| Interface | PCIe Gen3 NVMe |
| Drive Modules Included | Two 480 GB NVMe M.2 SSDs |
| Host Connectivity | PCIe Gen3 |
| Hot Plug | Yes (module level) |
| Supported Platforms | HPE ProLiant Gen11 |
| Management Support | HPE iLO, Redfish API |
| Compliance | RoHS, Lot 9 |
| Warranty | Standard HPE SSD/add‑in warranty |
| Form Factor | Dedicated internal hot‑plug module |
| Consumes Drive Bays | No – preserves front data bays |
Compatibility / Ecosystem:
- Compatible Rack Types: HPE ProLiant Gen11 rack and tower servers
- PCIe Compatibility: PCIe Gen3 NVMe host interface
- Management Ecosystem: HPE iLO and Redfish API monitoring
- RAID Ecosystem: Preconfigured hardware RAID‑1 OS boot mirror
Additional information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 25.24 × 22.23 × 6.51 cm |
| Brand | HPE |
