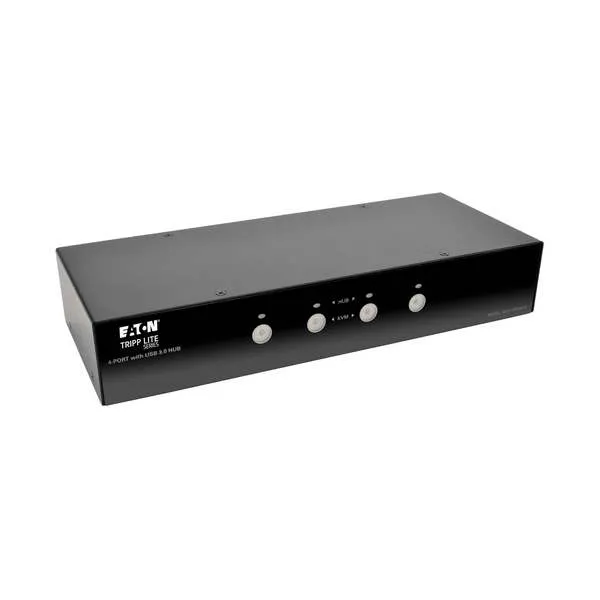

Eaton B004-DPUA4-K 4-Port 4K DisplayPort KVM Switch with USB 3.0

  • Brand: Eaton
  • SKU: B004-DPUA4-K
B004-DPUA4-K
Roll over image to zoom in
Click to open expanded view

2,334.15 AED3,255.00 AED (-28%)

In stock

Key Features

- Supports Ultra HD 4K resolutions up to 3840 x 2160 @ 60Hz.
- Integrated 2-port USB 3.0 hub for high-speed data sharing.
- Independent switching for KVM, USB hub, and audio ports.
- Includes four 6ft DisplayPort, USB, and audio cable kits.

SKU: B004-DPUA4-K Category: Tags: , , , , , Brand:

Eaton B004-DPUA4-K 4-Port 4K DisplayPort KVM Switch with USB 3.0 in Dubai

Overview :

The Eaton B004-DPUA4-K is a professional-grade 4-port KVM switch designed for power users, engineers, and creative professionals who require seamless management of four DisplayPort-enabled computers from a single console. In high-density workstation environments, such as CAD/CAM studios, financial trading floors, or video editing suites, this switch provides the necessary bandwidth to support Ultra HD resolutions up to 4K at 60Hz. By centralizing control, it eliminates the clutter of multiple keyboards and monitors, significantly improving ergonomic efficiency.

Beyond basic peripheral switching, the B004-DPUA4-K integrates a 2-port USB 3.0 hub, enabling high-speed data transfers at up to 5 Gbps between connected systems and shared external storage or printers. A critical differentiator for this model is its support for independent switching; users can maintain an active download on one computer’s USB port or listen to audio from another while performing tasks on a third. The unit is built for rapid deployment, arriving as a complete kit with four 6-foot cable sets included. This ensures compatibility and reduces the total cost of ownership by removing the need for separate accessory procurement.

Specifications :

Brand Eaton
Part Number B004-DPUA4-K
Product Type 4-Port DisplayPort KVM Switch
Max Resolution 3840 x 2160 (4K) @ 60Hz
DisplayPort Version 1.2
USB Specification USB 3.0 (up to 5 Gbps)
Console Ports 1x DP, 2x USB-A (HID), 2x 3.5mm Audio
Computer Ports 4x DP, 4x USB-B, 8x 3.5mm Audio
Switching Methods Push-button, Hotkeys, Mouse Wheel
Power Input 100-240V, 50/60Hz, 0.5A
Power Output 9V, 2A
Operating Temp 0°C to 40°C
Dimensions (HxWxD) 44 x 220 x 130 mm
Weight 0.91 kg

Additional information

Weight 0.95 kg
Dimensions 9.91 × 20.57 × 4.57 cm
