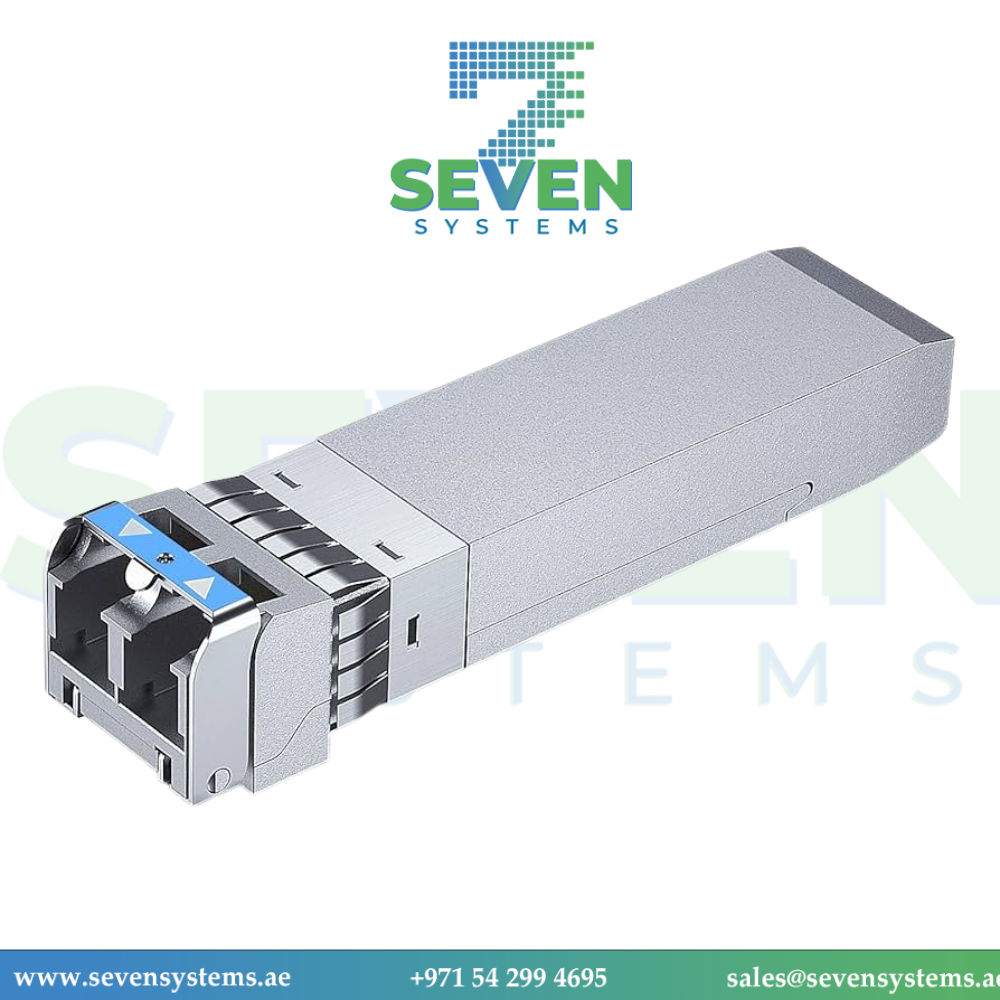

Cisco SFP-10G-LR SFP+ Transceiver Module – 10 Gigabit Ethernet, Long Range (10km) over Single-Mode Fiber
627.90 AED733.95 AED (-14%)
Cisco
SFP-10G-LR SFP+ Transceiver Module – 10 Gigabit Ethernet, Long Range (10km) over Single-Mode Fiber
The Cisco SFP-10G-LR is a high-performance SFP+ transceiver module engineered to support 10 Gigabit Ethernet (10GbE) over single-mode fiber (SMF) at distances up to 10 kilometers (6.2 miles). Designed for use in Cisco switches and routers that support SFP+ ports, this hot-swappable optical transceiver delivers dependable long-range connectivity for enterprise, data center, and campus networks. IT professionals can count on this module for seamless high-speed data transmission, low power consumption, and consistent signal integrity across critical infrastructure links.
Features :
The Cisco SFP-10G-LR module is part of Cisco’s comprehensive line of 10GbE optics and provides cost-effective and reliable connectivity for long-distance communication. Supporting a wavelength of 1310nm, it is optimized for use with single-mode fiber cabling and is fully compliant with SFF-8431 and IEEE 802.3ae standards. This makes it highly compatible and easily integratable into existing Cisco environments without additional configurations or licensing.
Advanced Options :
The hot-swappable nature of the transceiver ensures minimal downtime during installation or upgrades. Once inserted into an SFP+ port, the module automatically negotiates and establishes a stable 10Gbps link with remote hardware. This is particularly beneficial in large-scale enterprise or campus environments that require low-latency, high-throughput, and extended-distance connectivity for applications such as cloud computing, virtualization, and high-speed storage networking.
Product Key Features
-
10Gbps data transfer rate over single-mode fiber
-
Supports distances up to 10 kilometers
-
Operates at a 1310nm wavelength
-
Hot-swappable SFP+ form factor
-
Cisco certified and compatible
-
Low power consumption (<1.5W)
Reliability & Performance :
Built for high-reliability environments, the Cisco SFP-10G-LR offers exceptional performance across a variety of networking use cases. It uses precision optics and advanced semiconductor design to deliver consistent 10Gbps data transfer over long distances. Its industrial-grade build and Cisco certification ensure long-term deployment in mission-critical systems. The module is equipped with digital optical monitoring (DOM) support, allowing administrators to actively monitor transceiver performance parameters such as temperature, voltage, and optical power.
Key Features :
-
10Gbps data rate (10GBASE-LR)
-
Supports up to 10km over single-mode fiber
-
1310nm wavelength laser
-
Hot-swappable SFP+ form factor
-
Digital Optical Monitoring (DOM) support
-
Low power consumption and high signal integrity
Specifications:
Specification | Details |
---|---|
Model Number | SFP-10G-LR |
Product Type | SFP+ Transceiver Module |
Data Rate | 10 Gbps |
Interface | SFP+ |
Form Factor | Plug-in module |
Wavelength | 1310nm |
Cable Type | Single-Mode Fiber (SMF) |
Max Distance | Up to 10 km (6.2 miles) |
DOM Support | Yes |
Power Consumption | < 1.5W typical |
Operating Temp | 0°C to 70°C (32°F to 158°F) |
Compliance | SFF-8431, IEEE 802.3ae |

Additional information
Weight | 0.075 kg |
---|---|
Dimensions | 5.7 × 1.3 × 0.8 cm |
Brand | Cisco |
